Kränzle K1200TST 2400 PSI 5.0 GPM Electric Pressure Washer | PN 98K1200TST

3,797.70 3797.7000000000003 USD 5,317.00

5,317.00

Not Available For Sale

(3,797.70 / EA)
  • Special Shipping Method

This combination does not exist.

Special Shipping Method: Freight

    Quadro 1200 220V Electric Pressure Washer

    The K1200TST cold water electric pressure washer produces 2400 PSI, 5.0 gallons per minute of heavy-duty industrial cleaning power and is the perfect choice for use in a wash bay to maintain vehicles or wash heavy machinery. Its industrial-grade Kranzle pump can run dry or on bypass for hours, won't freeze and is self-priming. This unit also includes an automatic on / off gun-jet control with a 30-second time delay and safety shutdown after 20 minutes. These safety features help prolong the life of the pump and prevent accidents.





    Specifications:

    PSI: 2400 max adjustable

    GPM: 5.0

    Electrical Requirements: 220V, 25A, 60Hz, 3-phase

    Weight: 196 lb

    Dimensions: 31 inches length, 23 inches width, 40 inches height

    Warranty: 1 year commercial

    Additional Features:

    • Kranzle adjustable pressure unloader
    • Steel frame with plastic cover that holds all accessories
    • Ground fault interrupter (GFI)
    • Auto on / off gun-jet control with 30-second time delay
    • Safety shutdown after 20 minutes
  • Accessories Included:

    • 65 ft wire braided hose on hose reel
    • Professional gun-jet lance
    • Gauge
    • Safety coupler screw connections
    • Fan spray nozzle
    • Dirt Killer Turbo Nozzle

Complete Assembly Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Motor Pump without Electronics for Quadro 1200TST

426223


special order

2

Push Bar

42601


special order

3

Star Grip Nut M8

42619


special order

4

Plug

42613


special order

5

Water Tank

42603


special order

6

Lance Rest

42604


special order

7

Cable Winding Below

42611


special order

8

Strain Relief

43431


special order

9

Sheet Metal Screw 3.5x12

40290


special order

10

Plastic Screw 5.0x25

41414

9741414

buy now

11

Disc 21 DIN125

40207


special order

12

Screw M8x50 DIN912

42620


special order

13

Disc 8.4 Din125

50186


special order

14

Cable Winding at the Top

42612


special order

15

Rubber Buffer 25x25

44227


special order

16

Wheel

44017


special order

17

Splint 5x28 DIN 94

42614


special order

18

Hubcap

44018


special order

19

Front Panel Quadro 1200TST

426093


special order

20

Lance Holder

42610


special order

21

Sheet Metal Screw 3.5x16 DIN7981

44161


special order

22

Chassis

42602


special order

23

Disc 8.4 DIN9021

41409


special order

24

Elastic Stop Mutter M8

41410

9741410

buy now

25

Power cable 8m

44036


special order

26

Hose Reel kpl.

412596


special order

27

Chemical Suction Hose (Fabric) with Filter

42621


special order

28

Fabric Hose 0.4m

42622


special order

29

Hose Clamp 9-9

44054


special order

30

Housing Detergent Valve

44145


special order

31

O-Ring 5x1.5 (viton)

44150


special order

32

O-Ring 28.24x2.62

44149


special order

33

Regulating Piston Chemical Valve

44147


special order

34

Stainless Steel Spring 1.8x15x15

44148


special order


35

Cover for Chemical valve

44146


special order

36

Sheet Metal Screw 3.5x16

44161


special order

37

Sheet Metal Screw 3.5x19

44162


special order

38

Rotary Handle Chemical Valve with Cover Cap

44151


special order

39

Lance with FlatJet Nozzle for 1200TST

12.392D2507


special order

40

Starlet Pistol with Extension

123202

97123202

buy now

41

Turbo Killer 07 at Quadro 1200 TST

410727


special order

42

High Pressure Hose 20m NW8

41083

9741083

buy now

43

O-Ring 13x2.6

13272

9713272

buy now

44

Connecting Hose with Angle

426251

97426251

buy now

45

Disc 8mm for Wheel

44246


special order

46

Threaded Pin M6x55

426172


special order

47

Check Valve for Chemical Suction Hose

44240

9744240

buy now

48

Chemical Valve Complete Pos. 30-37

44052

9744052

buy now

49

Water Filter

42633


special order


Brake Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Base Plate

42615


special order

2

Brake Pedal

44022


special order

3

Brake Lever

44023


special order

4

Brake Pad

44024

9744024

buy now

5

Pin 6x50

44035


special order

6

Starlock Cap 8mm

44165


special order

7

Pin 6x40

440351


special order

8

Spacer Ring

42626


special order

9

Hexagon Screw M6x16

50173


special order

10

Washer DIN125-6.3

50189


special order


Water Inlet Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Nut R3/4"

46258

9746258

buy now

2

Inspection Cover

42605


special order

3

Star Grip Nut M6

42619


special order

6

Seal for Float Valve

46261


special order

7

Float Valve

46250

9746250

buy now

8

Threaded Pin M6x40

426171


special order

9

Inlet Hose

42640


special order

15

Connecting Hose

426251

97426251

buy now

16

O-Ring 15x1.5

12256

97121291

buy now

16.1

O-Ring 13x2.6

13272

9713272

buy now

17

Water Filter

42633


special order

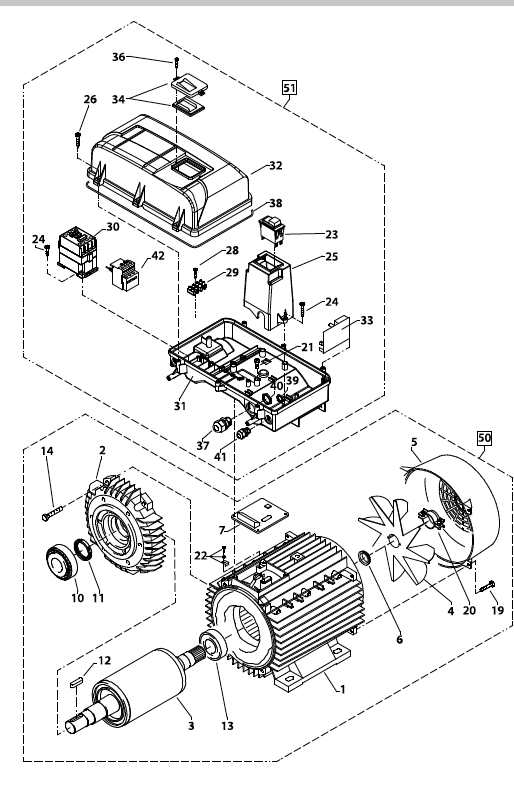

Pump Motor Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Starter 112 5.5kW 400V/50Hz

40540


special order

2

A-Bearing Flange

40530


special order

3

Rotor 112 (400V/50Hz)

405315


special order

4

Fan Wheel for BG 112

40532

9740532

buy now

5

Fan Hood BG 112

40533

9740533

buy now

6

V-Seal

40545


special order

7

Flat Gasket

43030


special order

10

Tapered Roller Bearings 31306

40103

9740103

buy now

11

Oil Seal 35x47x7

40080

9740080

buy now

12

Key 8x7x28

40459


special order

13

Ball Bearings 6206-2Z

40538


special order

14

Hexagon Socket Screw M6x30

43037


special order

19

Screw M4x12

41489


special order

20

Clamp for Fan Wheel 112

40535


special order

21

Screw M4x12

41489


special order

22

Grounding Screw kpl.

43038


special order

23

Switch with Push Buttons

42644

9742644

buy now

24

Plastic Screw 4.0x16

43417

9743417

buy now

25

Stand for Switch

42608


special order

26

Plastic Screw 5.0x25

41414

9741414

buy now

28

Plastic Screw 3.5x20

43415

9743415

buy now

29

Chandelier Clamp 5-Pol

433261

97433261

buy now

30

Protection (contactor) 100-C12KN10 3x400V 50/60 Hz

460051

97460051

buy now

31

Formwork Box Lower Part

42606


special order

32

Switch Box Cover

42607


special order

33

Control Board Shutdown Delay 400V/ 50Hz

42563

9742563

buy now


34

Terminal Frame with Switch Seal

43453

9743453

buy now

36

Sheet Metal Screw 3.5x16

44161


special order

37

Screw Connection PG16

414191


special order

38

Seal for Switch Box Cover

426071


special order

39

Lock Nut for PG9- Screw Connection

410871


special order

40

Lock Nut for PG16- Screw Connection

44119


special order

41

PG9- Screw Connection

43034

9743034

buy now

42

Overcurrent Release 3-polig 11.3-16A

42641

9742641

buy now

50

Motor Complete without Switch

24060


special order

51

Switch Box Complete Pos. 23-42

42631


special order



Pump Drive Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Transmission Housing

40501

9740501

buy now

4

Hexagon Socket Screw M8x30

410361

97410361

buy now

5

Lock Washer

40054

9740054

buy now

6

Flat Gasket

40511


special order

7

Oil Seal 20x30x7

400441

97400441

buy now

9

Axial Cylindrical Roller Bearings AQ-Pump

40524

9740524

buy now

11.3

Swashplate AQ 12.75 at Quadro 1200TST + 1200 TS

40523-12.75


special order

12

Plunger Spring

40506

9740506

buy now

13

Spring Pressure Disc

40510

9740510

buy now

14

Plunger 20mm

40505

9740505

buy now

15

Snap Ring

40048


special order

16

O-Ring 14x2

43445

9743445

buy now

18

Flat Gasket

410193

97410193

buy now

19

Flat Lid for Oil Housing

410231

97410231

buy now

20

Hexagon Socket Screw M5x12

410194

97410194

buy now

21

Oil Dipstick AQ

42623


special order

22

Support Disc for Plunger Spring

40513

9740513

buy now

23

O-Ring 13.94x2.62

42167

9742167

buy now

24

Oil Drain Plug R 3/8"

42019

9742019

buy now


Transmission Housing Complete

40514

9740514

buy now

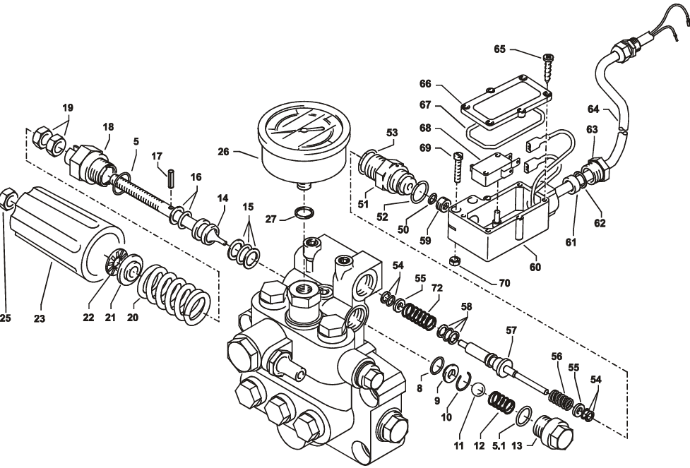

Unloader Valve and Pressure Switch


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

5

O-Ring 16x2

13150

9713150

buy now

5.1

O-Ring 13.94x2.62

42167

9742167

buy now

8

O-Ring 11x1.44

12256

9712256

buy now

9

Stainless Steel Seat

14118

9714118

buy now

10

Retaining Ring

13147

9713147

buy now

11

Stainless Steel Ball

13148


special order

12

Stainless Steel Spring

14119

9714119

buy now

13

Screw Plug

14113

9714113

buy now

14

Control Piston

14134

9714134

buy now

15

Parbaks 16mm

13159

9713159

buy now

16

Parbaks 8mm

14123

9714123

buy now

17

Chip Pin

14148

9714148

buy now

18

Piston Guide Special

42105

9742105

buy now

19

Lock Nut

14144

9714144

buy now

20

Valve Spring Red quadro 800

141251

97141251

buy now

20.1

Valve Spring Black quadro 1000 and 1200

14125

9714125

buy now

21

Spring Pressure Disc

14126

9714126

buy now

22

Needle Bearing

14146

9714146

buy now

23

Handwheel

14147

9714147

buy now


25

Elastic Stop Mutter M8x1

14152

9714152

buy now

26

Manometer 0-400 Bar

150394

97150394

buy now

27

Aluminium Sealing Ring

13275

9713275

buy now

50

O-Ring 3.3x2.4

12136

9712136

buy now

51

Guide Part Control Lever

150091


special order

52

O-Ring 13x2.6

15017

9715017

buy now

53

O-Ring 14x2

43445

9743445

buy now

54

Parbaks 4mm

121362

97121362

buy now

55

Support Disc

150151


special order

56

Stainless Steel Spring

15016

9715016

buy now

57

Control Rod

150102

97150102

buy now

58

Parbaks 7mm

15013

9715013

buy now

59

Plug M10x1 (drilled through)

133851


special order

60

Housing Electrical Switch

15007


special order

61

Rubber Sleeve PG9

15020


special order

62

Disc PG9

15021


special order

63

Screw Connection PG9

15022


special order

64

PVC Cable 2x 1.0mm

42505


special order

65

Sheet Metal Screw 2.8x16

15024


special order

66

Electrical Switch Cover

15008


special order

67

O-Ring 44x2.5

15023


special order

68

Micro Switch

44262


special order

69

Cylinder Head Screw M4x20

15025


special order

70

Hexagon Nut M4

15026


special order

72

Compression Spring 1x8.6x30

40520


special order


Control Piston Complete Quadro 800

434441


special order


Control Piston Complete Quadro 1000-1200

43444

9743444

buy now


Pressure Switch Mechanics Repair Kit

150093

97150093

buy now


Pressure Switch Complete

413005

97413005

buy now

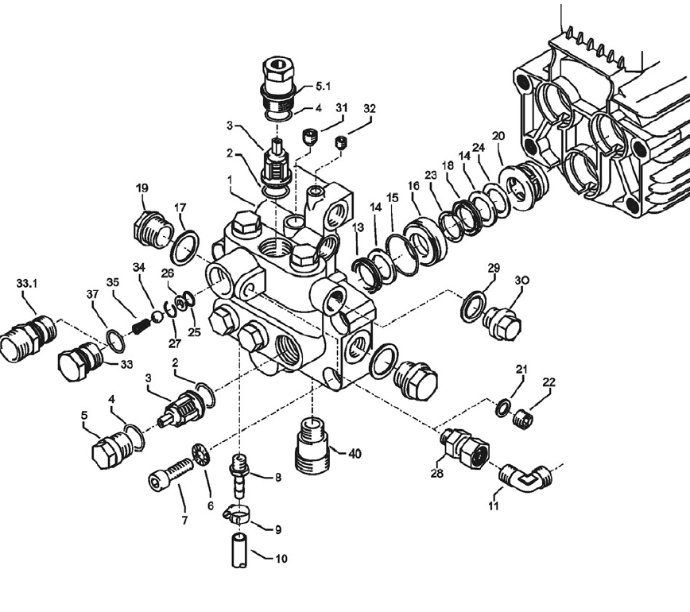

Valve Housing Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Valve Housing with Integrated Pressure Switch

405035


special order

2

O-Ring 18x2

40016

9740016

buy now

3

Inlet/Outlet Valve

42024

9742024

buy now

4

O-Ring 21x2

42025

9742025

buy now

5

Valve Plug

42026

9742026

buy now

5.1

Valve Plug with R 1/4"

420262

97420262

buy now

6

Retaining Ring

40032

9740032

buy now

7

Hexagon Socket Screw M12x45

40504

9740504

buy now

8

Hose Nipple R 3/8"x6

42634


special order

9

Hose Clamp 7-10

44054


special order

10

Chemical Suction Hose with Filter

42621


special order

11

Angle 12Lx12L

42630


special order

13

Fabric Cuff

40023


special order

14

Back Ring 20mm

40025

9740025

buy now

15

O-Ring 31.42x2.62

40508

9740508

buy now

16

Leakage Ring 20x36x13.3

40509

9740509

buy now

17

Copper Sealing Ring 21x28x1.5

42039

9742039

buy now

18

Rubber Sleeve

40512

9740512

buy now

19

Screw Plug R 1/2"

42032

9742032

buy now

20

Spacer Ring with Support

40507

9740507

buy now

21

Aluminum Sealing ring for Quadro TS

13275

9713275

buy now

22

Sealing Plug at Quadro TS

13181


special order

23

Through Ring 20mm

40021

9740021

buy now


24

Intermediate Ring 20mm

40516

9740516

buy now

25

O-Ring 11x1.5

12256

9712256

buy now

26

Stainless Steel Seat 7mm

14118

9714118

buy now

27

Snap Ring

13147

9713147

buy now

28

Pump Output Part R1/4"x12

44215


special order

29

Copper Sealing Ring 17x22x1.5

40019

9740019

buy now

30

Plug 3/8"

40018

9740018

buy now

31

Sealing Plug M10x1

43043


special order

32

Sealing Plug M8x1

13158

9713158

buy now

33

Output Part for quandary 800, 1000, 1200TST

40522

9740522

buy now

33.1

Output Part M22x1.5

405221

97405221

buy now

34

Stainless Steel Ball 10mm

12122

9712122

buy now

35

Check Spring K"

141201

97141201

buy now

37

O-Ring 18x2

43446


special order

40

Water Inlet R3/8" AG

41016

9741016

buy now


Valve Housing

405036

97405036

buy now


Repair Kit Cuffs

400651

97400651

buy now


Repair Kit Cuffs without Brass Parts

40517

9740517

buy now


Valve Repair Kit

400621

97400621

buy now



Hose Reel Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now
