Kränzle K499TST 2000 PSI 1.9 GPM Electric Pressure Washer | PN 98K499TST

2,370.56 2370.56 USD 3,319.00

3,319.00

Not Available For Sale

(2,370.56 / EA)
  • Special Shipping Method

This combination does not exist.

Special Shipping Method: Freight

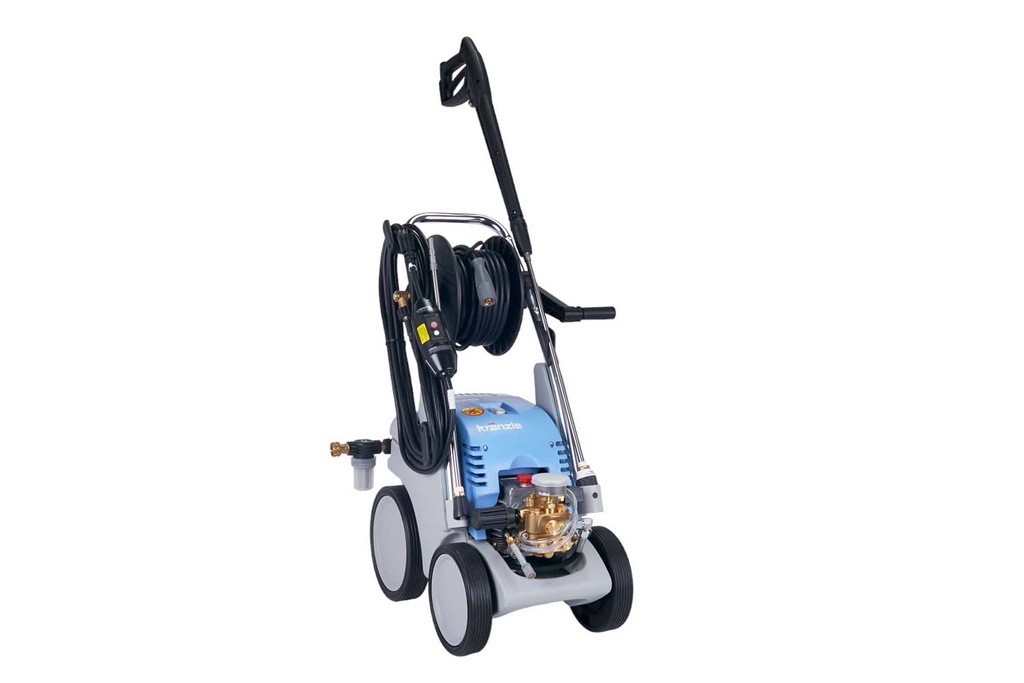

    Kranzle K499TST 2000 PSI 1.9 GPM Electric Pressure Washer

    The K499TST cold water electric pressure washer produces 2000 PSI, 1.9 gallons per minute making it a great choice for use in vehicle wash bays and other medium-duty industrial cleaning jobs. Built to the highest standards, its Kranzle pump is self-priming, can run dry, won't freeze and has multi-hour bypass capability. In addition, this unit features an automatic on / off gun-jet control and safety shutdown.





    Specifications:

    PSI: 2000 max adjustable

    GPM: 1.9

    Electrical Requirements: 110V, 20A, 60Hz

    Weight: 115 lb

    Dimensions: 23 inches length, 14 inches width, 33 inches height

    Warranty: 1 year commercial

    Additional Features:

    • Kranzle adjustable pressure unloader
    • Steel frame with plastic cover that holds all accessories
    • Ground fault interrupter (GFI)
    • Auto on / off gun-jet control with 30-second time delay
    • Safety shutdown after 20 minutes
  • Accessories Included:

    • 50 ft wire braided hose on hose reel
    • Professional gun-jet lance
    • Gauge
    • Safety coupler screw connections
    • Knife-jet (high-pressure wash/soap)
    • Dirt Killer Turbo Nozzle | Video >>

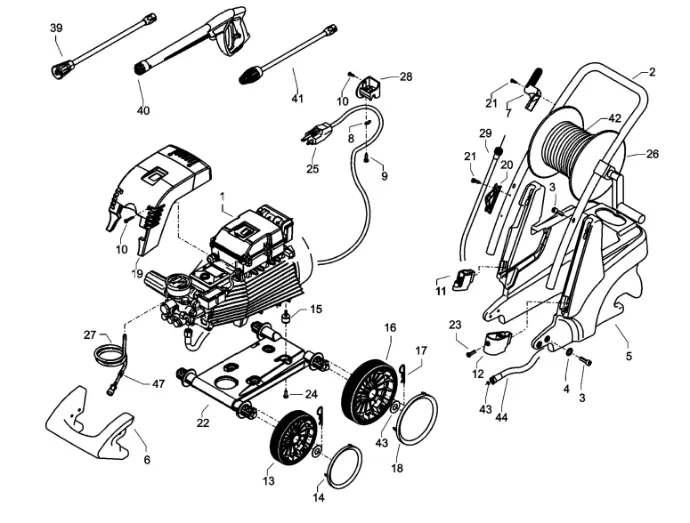

Complete Assembly Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

2

Push Bow

46504


special order

3

Screw M6x35 BIN6912

46024


special order

4

Disc 6.4 DIN125

50189


special order

5

Water Box

46510


special order

6

Impact Protection at the Front

46511


special order

7

Cable Winder

46507


special order

8

Strain Relief

43431


special order

9

Plastic Screw 4.0x16

43417

9743417

buy now

10

Plastic Screw 5.0x30

41412


special order

11

Lance Stand

46503


special order

12

Cooking Pot

46503


special order

13

Wheel d210

44538

9744538

buy now

14

Hubcap d210

46011

9746011

buy now

15

Rubber Buffers 20x25

46534

9746534

buy now

16

Wheel d250

46508

9746508

buy now

17

Spring Pin

401151


special order

18

Hubcap d250

46509

9746509

buy now

19.1

Front Pannel Quadro 399TST

465354


special order

19.2

Front Pannel Quadro 499TST

465355


special order

20

Lance Holder

42610


special order

21

Sheet Metal Screw 3.5x16 DIN7981

44161


special order

22

Chassis

46501


special order

23

Screw M6x12

43421


special order

24

Screw M6x12

440901


special order

25.1

Cable with Plug AWG14 (quadro 399) with Groundfall Interruptor

435121


special order

25.2

Cable with Plug AWG12 (Quadro 499) with Groundfall Interruptor

435221


special order

26

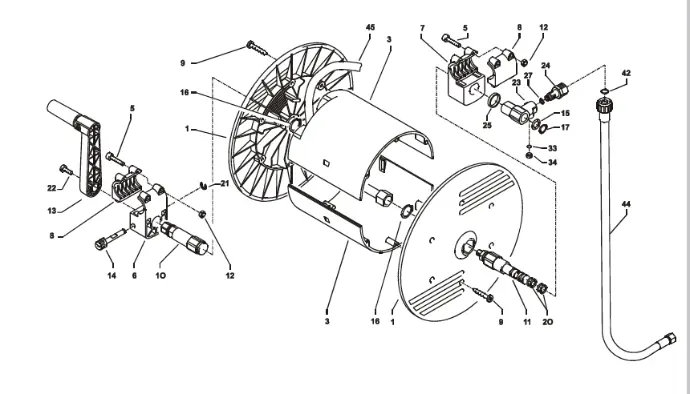

Hose Reel kpl.

46581


special order

27

Chemical Suction Hose (fabric) with Filter

42621


special order

28

Cable Routing with Strain Relief

46506


special order

29

Connecting Hose, Hose Reel

46537

9746537

buy now

39

Lance with Flat Jet Nozzle

12.392 5-M2003


special order

40

Gun M2000

12480

9712480

buy now

41.1

Dirt Killer 03

410738

97410738

buy now

42

High Pressure Hose 15m NW6

40170

9740170

buy now

43

O-Ring 13x2.6

13272

9713272

buy now

44

Connecting Hose Water Box

46536


special order

47

Check Valve for Chemical Suction Hose

44240

9744240

buy now

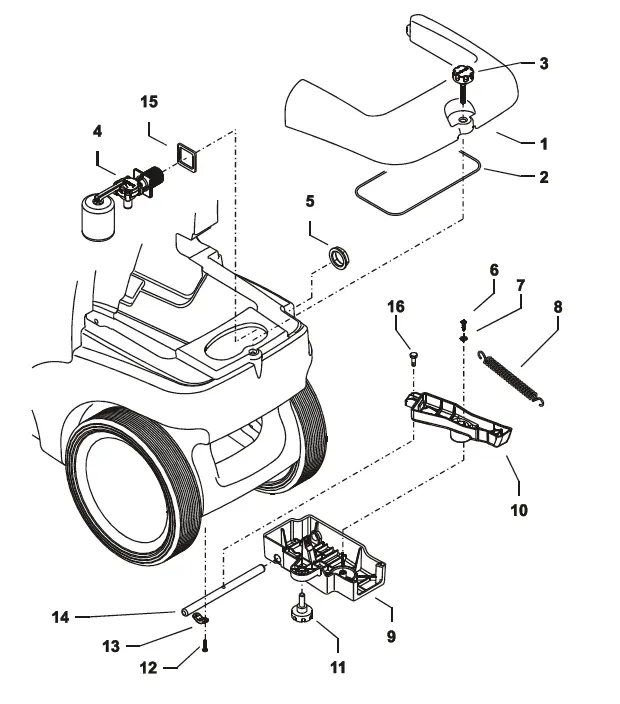

Water Inlet and Brake Spare Parts


    #

    Part Name

    German Part #

    Kranzle USA Part #

    Buy Now

    1

    Inspection Cover

    46512


    special order

    2

    Seal Inspection Cover

    46513

    9746513

    buy now

    3

    Star Grip Screw M6

    46031

    9746031

    buy now

    4

    Float Valve

    462501

    97462501

    buy now

    5

    Nut R3/4"

    46258

    9746258

    buy now

    6

    Plastic Screw 5x14

    43426


    special order

    7

    Disc 5.3 DIN9021

    50152

    9750152

    buy now

    8

    Tension Spring

    46020


    special order

    9

    Brake Cover

    46016


    special order

    10

    Lever Brake

    46505


    special order

    11

    Star Screw M8

    50168

    9750168

    buy now

    12

    Hexagon Socket Screw M4x10

    46002


    special order

    13

    Clamp

    43431


    special order

    14

    Bolt for Brake

    46018


    special order

    15

    Seal for float valve

    46261


    special order

    16

    Collar Screw

    46019


    special order

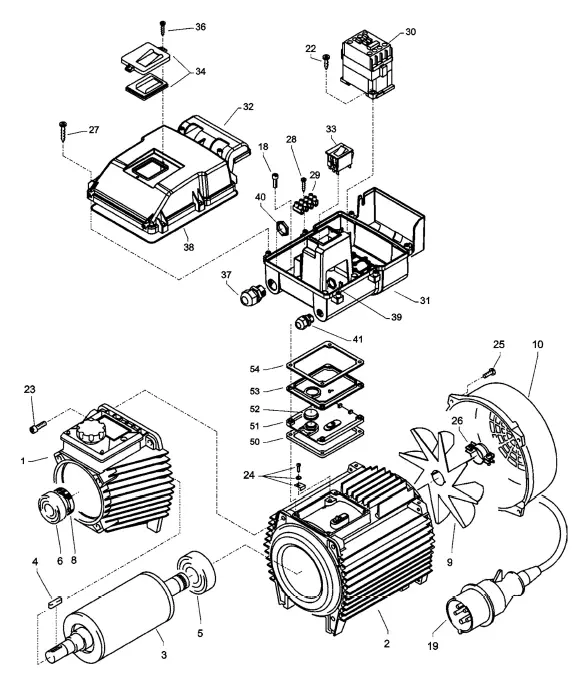

    Pump Motor Spare Parts


    #

    Part Name

    German Part #

    Kranzle USA Part #

    Buy Now

    1

    Housing for AP

    465301


    special order

    2

    Motor Housing with Stator Three-Phase Current

    435135


    special order

    3

    Rotor with Motor Shaft

    43316


    special order

    4

    Key 6x6x20

    414831

    97414831

    buy now

    5

    Engine Bearing B Side 6205-2Z

    43317

    9743317

    buy now

    6

    Engine Bearing Shoulder Bearing 7304

    41027

    9741027

    buy now

    8

    Oil Seal 25x35x7

    41024

    9741024

    buy now

    9

    Pnuematic Wheel BG90

    43319

    9743319

    buy now

    10

    Fan Hood BG90

    43320


    special order

    19

    Cable with Three Phase Plug

    44036


    special order

    22

    Plastic Screw 4.0x26

    43417

    9743417

    buy now

    23

    Hexagon Socket Screw M6x30

    43037


    special order

    24

    Ground Screw kpl.

    43038


    special order

    25

    Screw M4x12

    41489


    special order

    26

    Clamp for Fan Wheel

    43454

    9743454

    buy now

    27

    Plastic Screw 5.0x25

    414141


    special order

    28

    Plastic Screw 3.5x25

    43415

    9743415

    buy now

    29

    Luster Terminal 5-pol.

    433261

    97433261

    buy now

    30

    Protection 100-C12KN10 3x400V 50/60 Hz

    460051


    special order

    31

    Switch Box Bottom Part

    46012


    special order

    32

    Switch Box Cover

    46013


    special order

    33

    Switch 8A Amazon

    41751


    special order

    34

    Clamping Frame with Switch Seal

    43453

    9743453

    buy now

    36

    Sheet Metal Screw 3.5x14

    44525


    special order

    37

    PG 16-Screw Connection

    414191


    special order

    38

    Gasket for Switch Box Cover

    42525


    special order

    39

    Locknut for PG9- Screw Connection

    410871


    special order

    40

    Locknut for PG16- Screw Connection

    44119


    special order

    41

    PG 9 Screw Connection

    42541


    special order

    50

    Rubber Seal for Switch Spacer

    411113


    special order

    51

    Lower Part for Switch Spacer

    411111


    special order

    52

    Round Seal for Switch Spacer

    411115


    special order

    53

    Top for Switch Spacer

    411112


    special order

    54

    Flat gasket for Switch Spacer

    411114


    special order

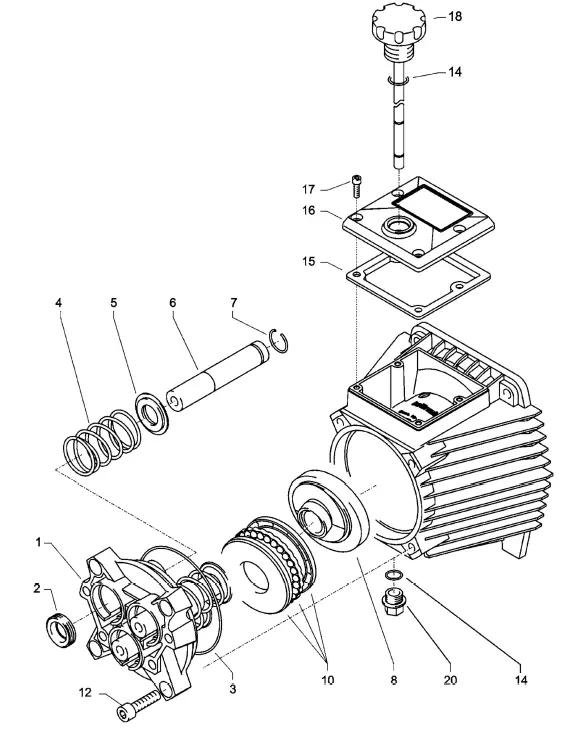

    Pump with Plunger Spare Parts


    #

    Part Name

    German Part #

    Kranzle USA Part #

    Buy Now

    1

    Housing Plate for 18mm Plunger

    410202

    97410202

    buy now

    2

    Oil Seal 18x28x7

    41031

    9741031

    buy now

    3

    O-Ring Viton 88x2

    410211

    97410211

    buy now

    4

    Plunger Spring

    41033

    9741033

    buy now

    5

    Spring Pressure Washer 18mm

    41034

    9741034

    buy now

    6

    Plunger 18mm

    410321

    97410321

    buy now

    7

    Snap Ring 18mm

    41035


    special order

    8

    Disc 6.5 degrees (quadro 399 TST)

    41028-6.5

    9741028-6.5

    buy now

    8.1

    Disc 7.5 degrees (quadro 499 TST)

    41028-7.5

    9741028-7.5

    buy now

    10

    partial Axel Deep Groove Ball Bearing 3

    43486

    9743486

    buy now

    12

    Hexagon Socket Screw M5x12

    410361

    97410361

    buy now

    14

    O-Ring 14x2

    43445

    9743445

    buy now

    15

    Gasket for Lid

    46531


    special order

    16

    Cover for Oil Housing

    46532


    special order

    17

    Screw M5x12

    410194

    97410194

    buy now

    18

    Oil Dipstick AP

    46546


    special order

    20

    Oil Drain Plug M18x1.5 with Magnet

    48020

    9748020

    buy now


    AP Pump Complete with 18mm Plungers for Quadro 399 consisting of items 1-18

    46589-6.5


    special order


    AP Pump Complete with 18mm Plungers for Quadro 499 consisting of items 1-18

    46589-7.5


    special order

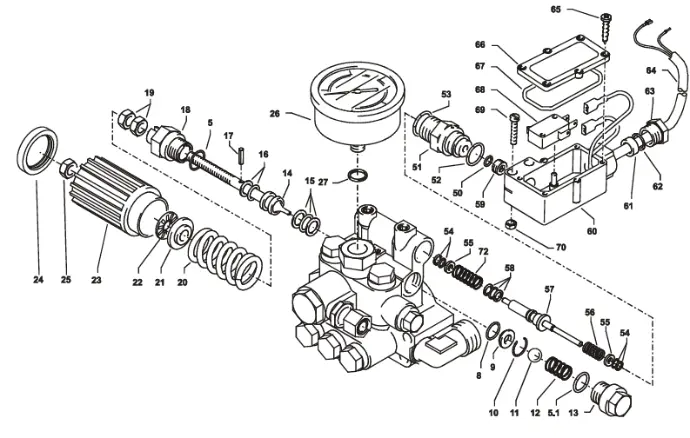

    Unloader Valve and Pressure Switch Spare Parts


    #

    Part Name

    German Part #

    Kranzle USA Part #

    Buy Now

    5

    O-Ring 16x2

    13150

    9713150

    buy now

    5.1

    O-Ring 13.94x2.62

    42167

    9742167

    buy now

    8

    O-Ring

    12256

    9712256

    buy now

    9

    Stainless Steel Seat

    14118

    9714118

    buy now

    10

    Circlip (Locking Ring)

    13147

    9713147

    buy now

    11

    Stainless Steel Seat 8.5mm

    13148


    special order

    12

    Stainless Steel Ball

    14119

    9714119

    buy now

    13

    Locking Screw

    14113

    9714113

    buy now

    14

    Control Piston

    14134

    9714134

    buy now

    15

    Parbaks 16mm

    13159

    9713159

    buy now

    16

    Parbaks 8mm

    14123

    9714123

    buy now

    17

    Roll Pin

    14148

    9714148

    buy now

    18

    Piston Guide Special

    42105

    9742105

    buy now

    19

    Nut M8x1

    14144

    9714144

    buy now

    20

    Valve Spring Black

    14125

    9714125

    buy now

    21

    Spring Pressure Washer

    14126

    9714126

    buy now

    22

    Needle Bearings

    14146

    9714146

    buy now

    23

    Handwheel

    40457


    special order

    24

    Cap Handwheel

    40458


    special order

    25

    Elastic Stop Nut

    14152

    9714152

    buy now

    26

    Manometer 0-250 bar

    15039

    9715039

    buy now

    27

    Aluminium Seal Ring

    13275

    9713275

    buy now

    50

    O-Ring 3.3x2.4

    12136

    9712136

    buy now

    51

    Guide Part Control Spool

    150091


    special order

    52

    O-Ring 13x2.6

    15017

    9715017

    buy now

    53

    O-Ring 14x2

    43445

    9743445

    buy now

    54

    Parbaks 4mm

    121362

    97121362

    buy now

    55

    Support Disc

    150151


    special order

    56

    Stainless Steel Spring

    15016

    9715016

    buy now

    57

    Control Rod Long

    150102

    97150102

    buy now

    58

    Parbaks 4mm

    121362

    97121362

    buy now


    59

    Plug Drilled through M10x1

    133851


    special order

    60

    Housing Electric Switch

    15007


    special order

    61

    Rubber Sleeve PG9

    15020


    special order

    62

    Disc PG9

    15021


    special order

    63

    Screw Connection PG9

    15022


    special order

    64

    Cable 2x1.5mm for 9/170-11/140TS

    46515


    special order

    64.1

    Cable 2x1.0mm for quadro 12/150TS

    46516


    special order

    65

    Sheet Metal Screw 2.8x16

    15024


    special order

    66

    Cover Electric Switch

    15008


    special order

    67

    O-Ring 44x2.5

    15023


    special order

    68

    Micro Switch

    15018

    9715018

    buy now

    69

    Cylinder Screw M4x20

    15025


    special order

    70

    Hexagon Nut M4

    15026


    special order

    72

    Compression Spring 1x8.6x30

    40520


    special order


    Pressure Switch Kit

    150093

    97150093

    buy now


    Piston Guide Complete with Hand Wheel

    40490

    9740490

    buy now

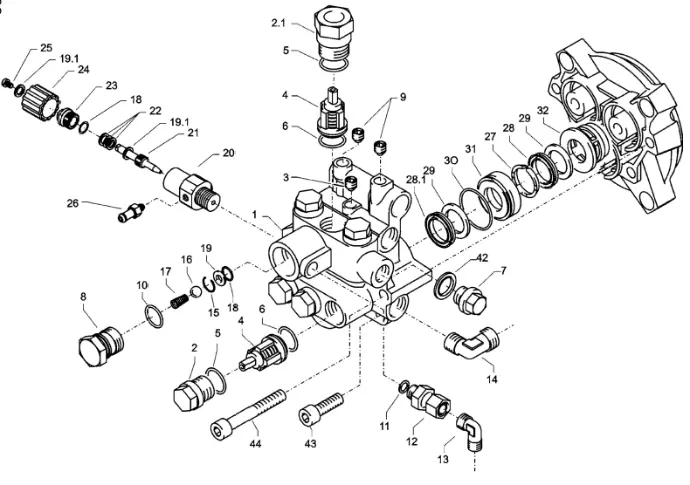

    Valve Housing Spare Parts


    #

    Part Name

    German Part #

    Kranzle USA Part #

    Buy Now

    1

    Valve Housing

    421603


    special order

    2

    Valve Plug

    41714

    9741714

    buy now

    2.1

    Valve Plug with R1/4"

    42102


    special order

    3

    Plug Tightly M10x1

    43043


    special order

    4

    Valves (green) for APG-Pump

    417151


    special order

    5

    O-Ring 16x2

    13150

    9713150

    buy now

    6

    O-Ring 15x2

    41716


    special order

    7

    Sealing Plug R1/4" with Collar

    42103

    9742103

    buy now

    8

    Output Part

    40522

    9740522

    buy now

    9

    Plug Tightly M8x1

    13158

    9713158

    buy now

    10

    O-Ring 18x2

    43446


    special order

    11

    Aluminium Seal Ring

    13275

    9713275

    buy now

    12

    Output Part Pump R1/4" x12

    46039


    special order

    13

    Ermeto Angle 12Lx12L

    42630


    special order

    14

    Ermeto Angle R3/8" x12L

    44092


    special order

    15

    Snap Ring

    13147

    9713147

    buy now

    16

    Stainless Steel Ball 10mm

    12122

    9712122

    buy now

    17

    Recoil Spring K"

    141201

    97141201

    buy now

    18

    O-ring 11x1.5

    12256

    9712256

    buy now

    19

    Stainless Steel Seat 7mm

    14118

    9714118

    buy now

    19.1

    Disc 6mm

    43045

    9743045

    buy now

    20

    Basic Part Angle Valve

    46600


    special order

    21

    Valve Needle

    46601


    special order

    22

    Parbaks 6mm

    46606


    special order

    23

    Leadership Part

    46602


    special order

    24

    Handwheel

    46603


    special order

    25

    Screw M4x8 Brass

    46604

    special order

    26

    Suction Cup M10x1

    13236

    9713236

    buy now

    27

    Pressure Ring 18mm

    41018

    9741018

    buy now

    28

    Cuff 18x26x4/2

    41013


    special order

    28.1

    Fabric Cuff 18x26x4/2

    410131


    special order

    29

    Backring 18x26

    41014

    9741014

    buy now


    30

    O-Ring 28.3x1.78

    40026

    9740026

    buy now

    31

    Leakage Ring 18mm

    41066

    9741066

    buy now

    32

    Intermediate Ring 18mm

    410152

    97410152

    buy now

    42

    Copper Ring

    42104

    9742104

    buy now

    43

    Hexagon Socket Screw M8x30

    410361

    97410361

    buy now

    44

    Hexagon Socket Screw M8x55

    410171

    97410171

    buy now


    Set of Valves for APG-Pump

    417481

    97417481

    buy now


    Set of Cuffs 18mm

    410491

    97410491

    buy now


    Valve Housing kpl.

    46591


    special order


    Chemical Valve

    46610

    9746610

    buy now


    Hose Drum Spare Parts


    #

    Part Name

    German Part #

    Kranzle USA Part #

    Buy Now

    1

    Side Shell

    46201


    special order

    3

    Drum Part

    46202


    special order

    5

    Hexagon Socket Screw M4x25

    40313


    special order

    6

    Bearing Block with Brake

    403061


    special order

    7

    Bearing Block on the Left

    403051


    special order

    8

    Clamping Piece

    403071


    special order

    9

    Plastic Screw 5.0x20

    43018

    9743018

    buy now

    10

    Drive Shaft

    46204


    special order

    11

    Wave Water Guidance

    462031


    special order

    12

    Elastic Stop Mutter M4

    40111


    special order

    13

    Hand Crank

    403200


    special order

    14

    Locking Bolt

    40312


    special order

    15

    Disc MS 16x24x2

    40181

    9740181

    buy now

    16

    Shaft Locking Ring 22mm

    40117

    9740117

    buy now

    17

    Shaft Locking Ring 16mm

    40182

    9740182

    buy now

    20

    Parbaks 16mm

    13159

    9713159

    buy now

    21

    Lock Washer 6DIN6799

    40315


    special order

    22

    Screw M5x10

    43021

    9743021

    buy now

    23

    Swivel Joint

    40167

    9740167

    buy now

    24

    Connecting Part

    403081


    special order

    25

    Spacer Ring

    40316

    9740316

    buy now

    27

    O-Ring 6.86x1.78

    40585


    special order

    33

    O-Ring 6x1.5

    13386

    9713386

    buy now

    34

    Plug M10x1

    13385

    9713385

    buy now

    42

    O-Ring 13x2.6

    13272

    9713272

    buy now

    44

    Connecting Hose Hose Reel

    46537

    9746537

    buy now

    45

    High Pressure Hose 15m NW6

    40170

    9740170

    buy now


    Hose Drum Complete without Hose

    46581


    special order
