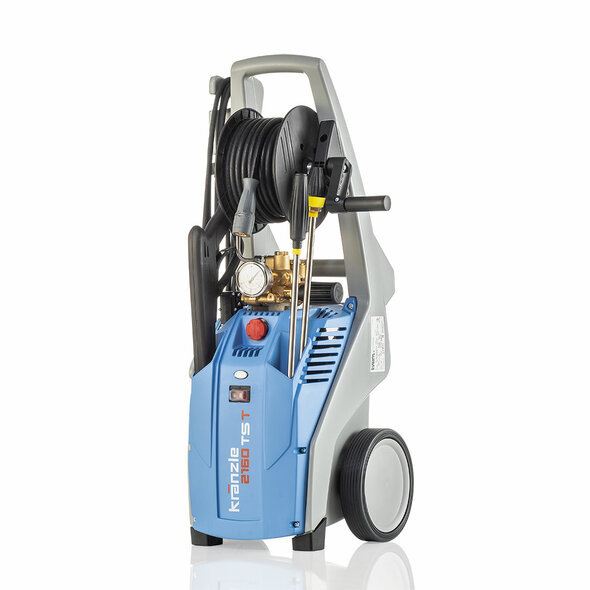

Kränzle K2160TST 2320 PSI 2.9 GPM, 230V Single Phase | PN 98K2160TST
230V Single Phase 14A
4The K2160TST electric pressure washer produces 2,320 PSI at 2.9 gallons per minute, making it an excellent choice for professional and home or personal use. 2.9 GPM makes quick work on any residential surface and steps into a range that allows you to use it for commercial use. With a maximum output of 2,320 PSI, you can clean most building surfaces without worry of property damage or operator fatigue.
This machine's output is the gold standard for washing equipment and livestock around a farm. Aggressive enough to wash out stalls, rubber mats, feeding troughs, and greasy/ dirty tractors; easy-on-the-fly adjustments allow for this to be used to wash cattle, bathe your horses, or even wash down your hogs before shows.
Built to the high standards of Kranzle, this unit features a commercial-grade APG18 pump that is self-priming, has a freeze-resistant head, and can run dry. The built-in hose reel and folding handle make storage fast and easy. The K2160TST is equipped with Kranzle’s Total Stop System, which allows the machine to turn on and off when the trigger is actuated.
With proper care and maintenance, Kranzle electric pressure washers are known to last 20 years!
When you want the best electric pressure washer on the market, buy a Kranzle.
Specifications
- PSI – 2360 max output
- GPM – 2.9
- Nozzle Requirement – 4.2 or larger orifice
- Electrical Requirements – 230V 1~ 14A
- Weight – 95 lbs.
- Shipping Dimensions – 14.5” x 15.5” x 37”
- Warranty – 1 Year Commercial
Additional Features
- Kranzle adjustable unloader
- Plastic roto-molded frame with integrated storage for OEM accessories
- Total Stop/ Auto on/ off
- Integrated high-pressure hose reel with 50’ hose
Accessories included
- Starlett Gun jet with 22mm connection
- Vario Lance Jet Assembly
- DK Series Turbo Nozzle Lance Jet Assembly
- Integrated High Pressure Gauge

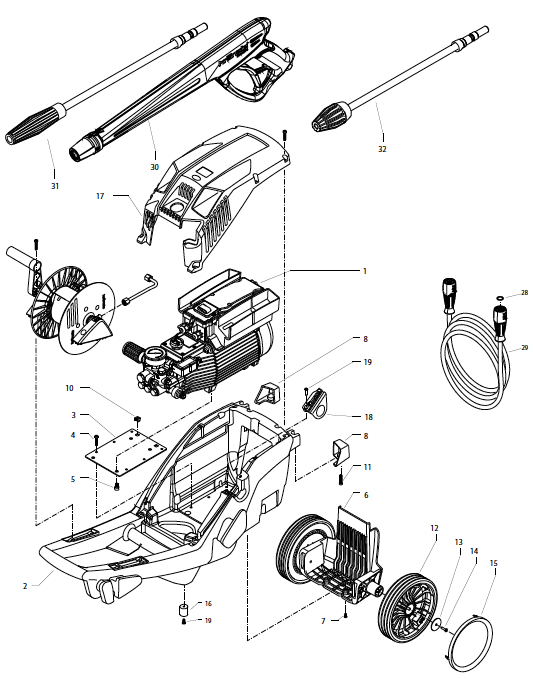

Complete Assembly Parts List
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Motor Pump Unit with Electrical system K2160TST | 48.061 | special order | |
1.1 | Motor Pump unit without Electrical System K2160TST | 48.0611 | special order | |
2 | Chassis | 48.000 | 974800 | |
3 | Stiffening Plate | 48.010 | ||
4 | Screw 6.0x30 | 43.423 | special order | |
5 | Screw M8x12 | 40.122 | special order | |
6 | Axle Bracket | 48.003 | 9748003 | |
7 | Screw M6x40 | 48.012 | special order | |
8 | Left + Right Stand Base | 48.005 | special order | |
10 | Cage Nut M6 | 48.011 | special order | |
11 | Screw 5.0x30 | 43.418 | 9743418 | |
12 | Wheel d210mm | 44.538 | 9744538 | |
13 | Steel Disc 40x6x1.5 | 45.2167 | special order | |
14 | Plastic Countersunk Screw 5.0x20 | 454211 | special order | |
15 | Wheel Cover | 46.011 | 9746011 | |
16 | Rubber Bump Stop/ Rubber Buffer 25x30 | 49.010 | 9749010 | |
17.2 | Front Panel | 48.002 2 | special order | |
18 | Kink Protection | 48.004 | special order | |
19 | Screw 5.0x14 | 43.426 | special order | |
28 | O-Ring 9.3x2.4 | 13.273 | 9713273 | |
29 | High Pressure Hose for Equipment NW6 10m | 43.416 | 9743416 | |
30 | Starlet Pistol 4 D12 | 12.525 | 9712525 | |
31.2 | Vario-Jet 042 Duo with Lance 500mm | 12.433-042 | special order | |
32.2 | Dirt Killer 042 with Lance 500mm | 12.438-042 | 9712438042 |

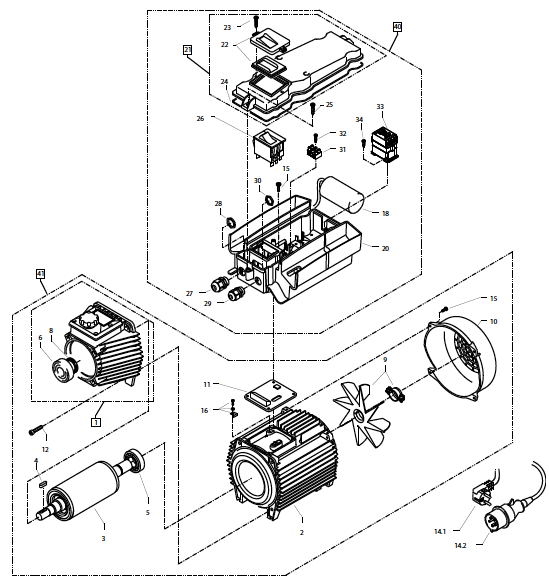

Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Oil Housing for AP with Cover and Gasket | 46.5302 | 97465302 | |
2.1 | AC Motor Housing with Stator | 43.826 | special order | |
3 | Rotor with Motor Shaft | 43.316 | special order | |
4 | Feather Key 6x6x20 | 41.4831 | 97414831 | |
5 | Motor Bearing B-Side 6205-2Z | 43.317 | 9743317 | |
6 | Motor Bearing Shoulder Bearing 7304 | 41.027 | 9741027 | |
8 | Oil Seal 25x35x7 | 41.024 | 9741024 | |
9 | Fan Motor BG90 | 41.1181 | 97411181 | |
10 | Ventilation Hood BG90 | 43.320 | special order | |
11 | Flat Gasket | 43.030 | 9743030 | |
12 | Hexagon Socket Screw M6x30 | 43.037 | special order | |
14.1 | Cable with Plug | 41092 | special order |
15 | Screw M4x12 | 41.489 | special order | |
16 | Grounding Screw Complete | 43.038 | special order | |
18 | Capacitor 70uF | 43.322 | 9743322 | |
20 | Control Cabinet | 48.001 | special order | |
21 | Switch box Cover | 44.5121 | 97445121 | |
22 | Snap Frame with Switch Seal | 43453 | 9743453 | |
23 | Sheet Metal Screw 3.5x9.5 | 41.088 | 9741088 | |
24 | Gasket for Lid | 44.522 | special order | |
25 | Screw 5.0x20 | 43.018 | 9743018 | |
26.1 | Switch with 15, 8A | 41.1117 | special order | |
27 | Cable Gland PG 13.5 | 40.539 | special order | |
28 | Locknut for PG 13.5 | 44.253 | special order | |
29 | Cable Gland PG 11 | 41.419 | 9741419 | |
30 | Lock Nut for PG11 | 44.521 | 9744521 | |
31 | 3-Multi-Pole Terminal Block | 43.326 | 97433261 | |
32 | Screw 3.5x20 | 43.415 | 9743415 | |
40.1 | AC Switch Box complete item 18-32 | 48.052 | special order | |
41.1 | Ac Motor Complete without switch 1-16 | 48.054 | special order |

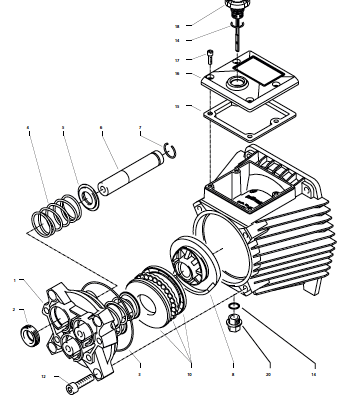

Transmission Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Housing Plate for 18mm Plunger | 41.0202 | 97410202 | |
2 | Oil Seal 18x28x7 | 41.031 | 9741031 | |
3 | Viton O-ring 88x2 | 41.0211 | 97410211 | |
4 | Plunger Spring 18mm | 41.033 | 9741033 | |
5 | Spring Thrust Washer 18mm | 41.034 | 9741034 | |
6 | Plunger 18mm | 41.0321 | 97410321 | |
7 | Snap Ring 18mm | 41.035 | special order | |
8 | Wobble Plate 12.0 | 41.028-12.0 | special order | |
10 | Multi-Part Axial Deep-Groove 3 Ball Bearing | 43.486 | 9743486 | |
12 | Hex Socket Screw M8x30 | 41.0363 | special order | |
14 | O-Ring 14x2 | 43.445 | 9743445 | |
15 | Lid Gasket | 46.531 | special order | |
16 | Oil Housing Cover | 46.532 | special order | |
17 | Screw M5x12 | 41.0194 | 97410194 | |
18 | Oil Filter Plug with Dipstick | 48.017 | special order | |
20 | Magnetic Oil Drain Plug M18x1.5 | 48.020 | 9748020 |

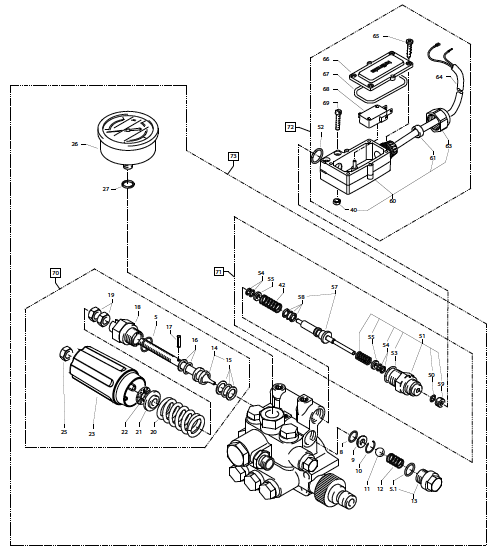

Unloader Valve and Pressure Switch Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13.150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42.167 | 9742167 | |
8 | O-Ring 11x1.44 | 12.256 | 9712256 | |
9 | Stainless Steel Seat | 14.118 | 9714118 | |
10 | Locking Ring | 13.147 | 9713147 | |
11 | Stainless Steel Ball Bearing | 12.245 | 9712245 | |
12 | Stainless Steel Spring | 14.119 | 9714119 | |
13 | Sealing Screw | 14.113 | 9714113 | |
14 | Control Piston | 14.134 | 9714134 | |
15 | 16mm Spindle Parbak O-Rings | 13.159 | 9713159 | |
16 | Unloader Piston 8mm Parbak O-Rings | 14.123 | 9714123 | |
17 | Tension Pin | 14.148 | 9714148 | |
18 | Special Piston Guidance | 42.105 | 9742105 | |
19 | Locknut M8x1 | 14.144 | 9714144 | |
20 | Black Valve Spring | 14.125 | 9714125 | |
21 | Spring Thrust Washer | 14.126 | 9714126 | |
22 | Needle Bearing | 14.146 | 9714146 | |
23 | Handwheel | 40.466 | special order |
25 | Elastic Stop Nut M8x1 | 14.152 | 9714152 | |
26 | Pressure Gauge Bar 0-250 | 15.039 | 9715039 | |
27 | Aluminium Sealing Ring | 13.2751 | special order | |
40 | Hex Nut M4 | 12.138 | special order | |
42 | Compression Spring 1x8.6x30 | 40.520 | special order | |
50 | O-Ring 3.3x2.4 | 12.136 | 9712136 | |
51 | Guide Component for Control Plunger | 490580 | 97490580 | |
52 | O-Ring 13x2.6 | 15.017 | 9715017 | |
53 | O-Ring 14x2 | 43.445 | 9743445 | |
54 | Parbak 4mm | 12.1362 | 97121362 | |
55 | Support Washer | 15.0151 | special order | |
57 | Control Rod | 15.0102 | 97150102 | |
58 | Parbak 10mm | 15.013 | 9715013 |
59 | Plug M10x1 (drilled through) | 13.3851 | special order | |
60 | Electrical Switch Housing | 15.204 | special order | |
61 | Rubber Boot | 15.202 | special order | |
63 | Union Nut PG11 | 15.203 | special order | |
64 | Cable 2x1.5mm | 15.0191 | special order | |
65 | Sheet Metal Screw 2.9x19 | 15.024 | special order | |
66 | Electrical Switch Cover | 15.201 | special order | |
67 | O-Ring 44x2.5 | 15.023 | special order | |
68 | Microswitch | 15.018 | 9715018 | |
69 | Cylinderhead Screw M4x22 | 15.025 | special order | |
70 | Control Piston Complete with Hand wheel | 43.444 | 9743444 | |
71 | Pressure Switch Mechanism Repair Kit | 150093 | 97150093 | |
72 | Pressure switch Complete | 41.3006 | special order | |
73.2 | Valve Housing Complete with Pressure Gauge | 48.0501 | special order |

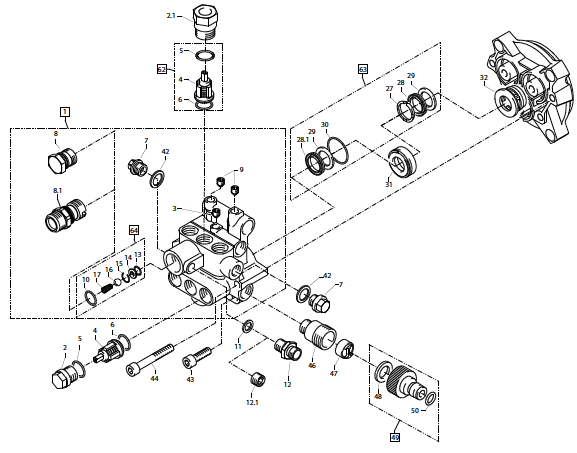

Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1.1 | Valve Housing | 42.160 | special order | |
2 | Valve Plug | 41.714 | 9741714 | |
2.1 | Valve Plug with R1/4 IG | 42.102 | special order | |
3 | Sealing Plug M10x1 | 43.043 | special order | |
4 | Green Valves for APG Pump | 417151 | special order | |
5 | O-Ring 16x2 | 13.150 | 9713150 | |
6 | O-Ring 15x2 | 41.716 | special order | |
7 | Sealing Plug R1/4" with Bundle | 42.103 | 9742103 | |
8 | Outlet Plug | 40.522 | 9740522 | |
9 | Sealing Plug M8x1 | 13.158 | 9713158 | |
10 | O-Ring 18x2 | 40.016 | 9740016 | |
11 | Aluminium Sealing Ring | 13.2751 | special order | |
12 | Ermeto Screw Connection R1/4" x8 | 41.042 | 9741042 | |
12.1 | Plug 1/4" AG | 13.387 | 9713387 | |
| 13 | O-Ring 11x1.5 | 12.256 | 9712256 | |
14 | Stainless Steel Seat 8.2 | 13.146 | 9713146 | |
15 | Snap Ring | 13.147 | 9713147 | |
| 16 | Stainless Steel ball 10mm | 12.122 | 9712122 |
| 17 | Recoil Spring K | 14.1201 | 97141201 | |
27 | Pressure Ring | 41.018 | 9741018 | |
28 | Cuff 18x26x4/2 | 41.0132 | special order | |
28.1 | Fabric Cuff 18x26x4/2 | 41.0131 | special order | |
29 | Backring 18x26 | 41.0142 | special order | |
30 | O-Ring 28.3x1.78 | 40.026 | 9740026 | |
31 | Leakage RIng 18mm | 41.066 | 9741066 | |
32 | Extension Tube 18mm | 41.0152 | 97410152 | |
42 | Copper Ring 14x20x1.5 | 42.104 | 9742104 | |
43 | Hex Socket Screw M8x30 | 41.0363 | special order | |
44 | Hex Socket Screw M8x55 | 41.0172 | special order | |
46 | Suction Connection | 41.016 | 9741016 | |
47 | Water Filter | 41.046 | 9741046 | |
48 | Rubber Sealing Ring | 41.0471 | 9741047 | |
49 | Push Fit Coupling | 41.0474 | special order | |
50 | O-Ring 10.77x2.62 | 41.0474 | special order | |
62 | Valve Repair Kit for APG Pump | 41.7481 | 97417481 | |
63 | Pump Packing Rebuild Kit 18mm | 41.0491 | 97410491 | |
64 | Non-Return Valve | 44.566 | special order |

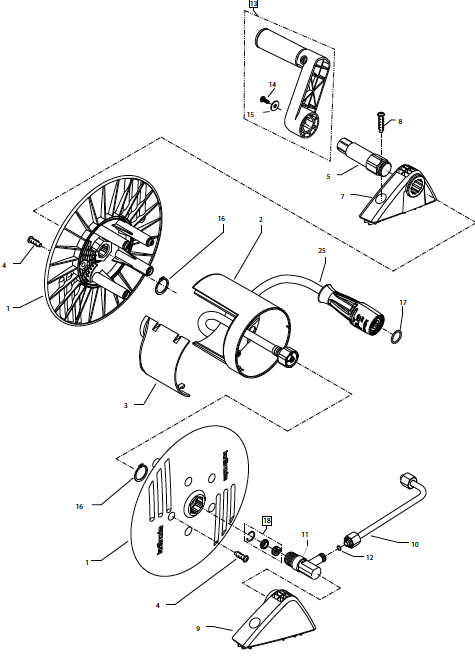

Hose Drum Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Side Dish | 48.101 | 9748101 | |
2 | Drum Component | 48.102 | special order | |
3 | Kink Protection | 40.162 | special order | |
4 | Plastic Screw 5.0x20 | 43.018 | 9743108 | |
5 | Drive Shaft | 48.1041 | special order | |
7 | Bearing Block Left | 43.810 | 9743810 | |
8 | Screw 6.0x30 | 43.423 | special order | |
9 | Bearing Block Right | 43.811 | specialorder | |
10 | Connecting Pipe | 48.039 | special order | |
11 | Water Inlet Section | 49.122 | special order | |
12 | O-Ring 6x0.8 | 40.177 | 9740177 | |
13 | Hand Crank | 48.108 | 9748108 | |
14 | Screw M5x14 | 40.536 | 9740536 | |
15 | Washer 5.3 | 50.152 | 9750152 | |
16 | Shaft Circlip 22mm | 40.117 | 9740117 | |
17 | O-Ring 9.3x2.4 | 13.273 | 9713273 | |
18 | Gasket Seal | 13.4101 | special order | |
25 | High Pressure Hose 15m NW6 | 48.015 | 9748015 |
