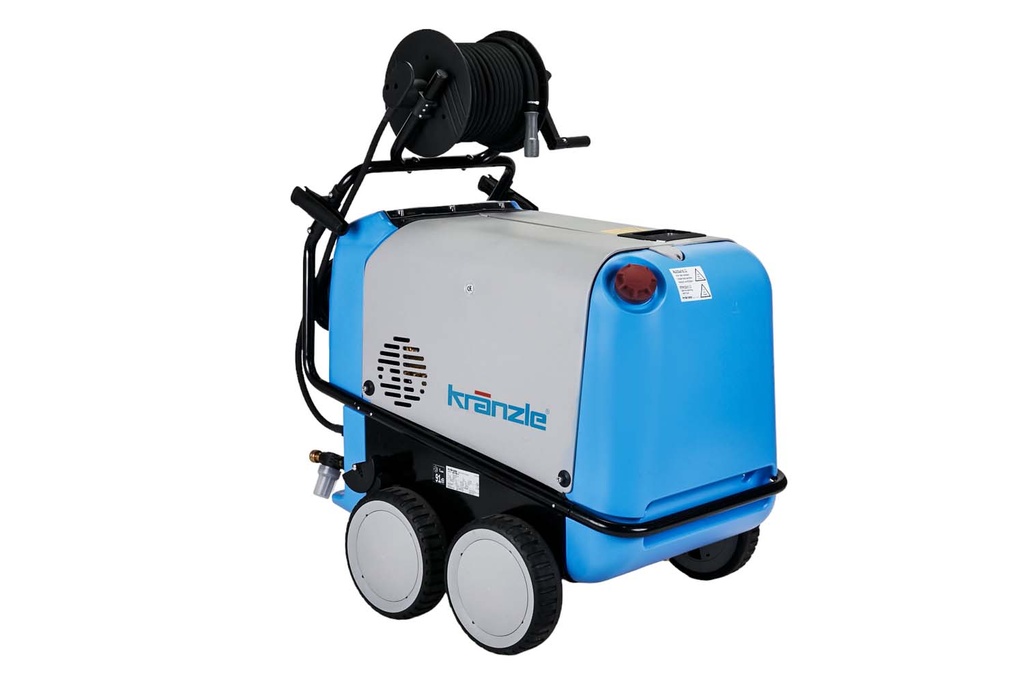

Kranzle Therm K1165TST High Flow 2400PSI 5GPM 440V 3 phase | PN 9800444

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Cockpit

44351

special order

2

Fuel Tank

44004

9744004

buy now

3

44009

special order

5

Lance Cooker

44008

special order

6

Right Hood

44032

9744032

buy now

7

Left Hood

44031

9744031

buy now

8

Wheel

44017

special order

9

Hubcap

44018

special order

10

Brake Pedal

44022

special order

11

Brake lever

44023

special order

12

Brake Pad

44024

9744024

buy now

13

Tank Cap with o-Ring

44005

9744005

buy now

14

Chassis

44001

special order

15

Front Bow

44002

special order

16

Push Bar

44003

special order

17

Reeling

440161

special order

18

Top Strut

44019

special order

19

Starlock Cap 20mm

40142

9740142

buy now

20

O-Ring 70x5

44020

9744020

buy now

21

Hexagon Socket Screw M8x12

40122

special order

22

Hexagon Socket Screw M8x40

44033

special order

23

Washer 8.4 DIN 9021

41409

special order

24

Screw 3.9x16

12150

special order

25

Pen 6x50

44035

special order

26

Starlock Cap 8mm

44165

special order

27

Carriage Bolt M8x35

41408

special order

28

Fuel Tank Drain Plug

440041

special order

29

Pen 6x40

440351

special order

30

Elastic Stop Mutter M8

41410

9741410

buy now

31

Seal for Oil Drain Plug

410471

97410471

buy now

32

Power Cable With Plug 8.0m, 4x1.5mm, H07RNF

44036

special order

33

Plastic Screw 6x30

434231

special order

35

Disc

44034

9744034

buy now

36

Star Grip

501681

97501681

buy now

37

High Pressure NW 8 10m

410813

special order

37.1

High Pressure NW 8 20m

443812

97443812

buy now

38

O-Ring 9.3x2.4 Viton

132731

special order

39

Piston with Extension Starlet II

123202

9712519

buy now

40

Lance with Flat Jet Nozzle 25045 (therm 895-1)

12392-D25045

special order

40.1

Lance with Flat Jet Nozzle 25070 (therm 1165-1)

12392-D25070

special order

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Electrical Box

448071

special order

2.1

Cover for Electrical Box therm 895-1

470143

special order

2.2

Cover for Electrical Box therm 1165-1

470144

special order

3

Front Panel Manometer

443751

special order

4

Cable Winding

44822

9744822

buy now

5

Screw 5x25

414141

special order

6

Stand for Switch

44810

special order

7

Screw 5.0x14

43426

special order

8

Bracket for Thermostat

47012

special order

9

Seal for Thermostat

47013

special order

10

Seal for Switch

44817

special order

11

Switch

9744835

buy now

12

Mutter M4

40111

special order

13

Seal for Lid

4418121

special order

14

Control Panel for Control Board

44257

special order

15

Cover for Over Temperature Release

44361

special order

16

Control Board Over temperature Trigger

44370

9744370

buy now

17

Screw 3.5x8

43430

special order

18

Screw 4.0x16

43417

9743417

buy now

19

Grounding Terminal

44839

special order

22

Control Board 400V/50/60 Hz

44359

8744359

buy now

23

Protection 400V/50/60 Hz

460051

97460051

buy now

24

Screw with 4.0x25 washer

43425

special order

25.1

Overcurrent Release 15A 3-pol

460403

special order

26

Cable Trumpet with Strain Relief

44819

special order

27

Strain Relief Clamp

special order

28

Screw 3.5x14

44525

special order

29

Three-Phase Power Supply Cable 8.0m, 4x1.5mm, H07RNF

44036

special order

30

PG16 Screw Connection 1

414191

special order

31

PG16 Screw Connection Bushings 2

44132

special order

33

Manometer

15039

9715039

buy now

34

Fuel Pressure Gauge

44362

special order

35

Plug DN6x R1/4" IG

44406

special order

37

Fine Fuse 1.25 A (microfuse)

44676

9744676

buy now

38

Fine Fuse 2.0 A (microfuse)

448891

97448891

buy now

39

Fine Fuse 630 mA (microfuse)

442002

97442002

buy now

40

Holding Bridge

44352

special order

Screw M5x10

43021

9743021

buy now

42

Fine Fuse 32 mA

442001

97442001

buy now

45

Grommet for Capillary Tube

44823

special order

47

Electrical Box Seal

44838

special order

48

Clamp for Manometer

44049

9744049

buy now

49

Connection Sleeve Manometer

44136

9744136

buy now

51

Hose Clamp 9-9

44054

special order

52

Hose for Detergent Suction

44055

special order

53

Hose with Filter and Check Valve

440561

special order

54

Check Valve for Detergent

442401

97442401

buy now

55

Pressure Measuring Line

441021

special order

#

German Part #

Kranzle USA Part #

Buy Now

1

Water Tank

44009

special order

2

Float Valve

462505

97462505

buy now

4

Nut R3/4"

46258

9746258

buy now

5

Connecting Piece R 3/8" IG

41423

special order

7

Inlet Hose

44027

special order

9

O-Ring 13x2.6

13272

9713272

buy now

10

Hose Nozzle

44126

9744126

buy now

11

Union Nut

41047

special order

12

Hose Clamp 12-22

440542

special order

13

Water Inlet Hose

44028

9744028

buy now

14

Hose Noxxle R 3/8"x13

44029

special order

16

Hose Water Outlet

44840

special order

17

Retaining Disc

44841

special order

18

Screw DIN912 M5x12

410194

97410194

buy now

20

Water Outlet Part

44855

special order

30

Chemical Valve Complete

46616

special order

31

Basic Part Angle Valve

46608

special order

32

Valve Needle

46601

special order

33

Disc

43045

9743045

buy now

34

Parbaks 6mm

15013

9715013

buy now

35

O-Ring

12256

9712256

buy now

36

Leadership Part

46602

special order

37

Handwheel

46607

special order

38

Brass Screw M4x8

46604

special order

39

Nut M18x1

40185

special order

40

Suction Cup M6

46605

special order

41

Hose Clamp

44363

special order

42

Plastic Hose for Detergent Suction

44055

special order

43

Plastic Hose with Filter

special order

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Fuel Supply Cover

44011

special order

2

Flange with Fuel Line

44010

9744010

buy now

3

Ruber Seal

44012

special order

4

PA-Hose DN6 (0.22m)

44403

special order

5

44014

special order

6

Connectors 6-6

44404

special order

7

Fiel Line Pump

441081

special order

8

PA-Hose DN6 (0.84m)

44403

special order

9

PA- Hose DN6 (0.32m)

44403

special order

10

Connector Angle 1/4"x6

44405

9744405

buy now

11

Screw 5.0x25

414141

special order

12

Plug Connector 1/8"x6

44407

9744407

buy now

44372

special order

14

Connector angle 1/8"x6

44408

9744408

buy now

16

Fuel Filter Connection Part

44214

special order

17

Rubber Seal 3/4"

410471

97410471

buy now

18

Filter Base Body

13301

special order

19

Rubber Seal

13303

9713303

buy now

20

Fuel Filter Screen Body

44213

9744213

buy now

21

Filter Cup

13302

9713302

buy now

22

Screw In Angle R1/4" AGx10L

401211

special order

23

Fuel Pump with Solenoid Valve

44073

9744073

buy now

24

PA-Hose DN6 (0.93m)

44403

special order

25

Coil for Solenoid Valve

442513

special order

26

Solenoid Valve

44251

special order

27

Spacer Tube 128mm

44084

special order

31

Double Nipple 1/4"x1/4"

442512

special order

40

Fuel Pump Complete

44371

9744371

buy now

41

Fuel Filter Complete

44391

special order

#

Part Name

German Part #

Kranzle Part #

Buy Now

1

Retaining Plate Ignition Transformer

448211

special order

2

Holding Base Ignition Cable

44369

special order

3

Ignition Transformer

44074

special order

4

Screw M5x50

44113

special orde

5

High-Voltage Ignition Cable

441142

special order

7

Ring Nut M8 DIN582

44115

special order

8

Spring Ring A8

44222

special order

9

Stainless Steel Nut M8

141272

special order

11

Fuel Line 115mm

440891

special order

12

Angle Screw Connection 6Lx6L

44106

special order

13

Fuel Line Pump

441081

special order

14

Stainless Steel Screw M6x10

44177

special order

15

HD-Hose Inlet Safety Valve

44383

special order

16

Self Tapping Screw 6.3x13

44109

special order

17

Washer A 10.5 DIN 9021

50182

special order

18

Hexagon Screw M 10x20 DIN 933

44116

special order

19

Pressure Measuring Line

441021

special order

20

Blown Nozzle

44068

special order

21

Blower Housing

44353

special order

22

Air Wheel

44380

special order

23

Blower Cover

44354

special order

24

Burner Engine 230V/50Hz

440725

special order

25

Plug In Coupling

44085

9744085

buy now

26

HD-Hose Inlet Combustion Chamber

44384

special order

27

Air Damper

44355

special order

28

Screw 5.0x14

43426

special order

29

Screw M5x12

40134

9740134

buy now

30

Screw 5.0x25

414141

special order

31

Washer 4.3

44059

special order

32

Screw M4x8

44091

special order

33

Threaded Pin M6x8 DIN 914

44090

special order

34

Screw 5.3

50152

9750152

buy now

39

Hose Water Outlet

44840

special order

40

Temperature Sensor

449541

97449541

buy now

41

Ermeto Nut 12mm

40075

9740075

buy now

42

T-Screw In nFitting

44173

special order

43

Screw In elbow Fitting 3/8"x12L

44092

special order

44

High Pressure Hose

44093

9744093

buy now

45

Clamp Ring for Measuring line Thermostat

440871

special order

46

Measuring Line Thermostat

441012

special order

48

Cutting Ring 12mm

40074

special order

49

Union Nut for Ermeto 12mm

40075

9740075

buy now

50

Water Pipe with Fittings

44030

9744030

buy now

51

End Ring

440861

special order

52

Threaded Pin M6x8 DIN 914

44090

special order

53

Self Tapping Screw 4.8x13

44112

special order

54

Over Temperature Sensor

44388

special order

55

Nut

44172

special order

56

Disc 6.4

50174

special order

57

Rotary Knob for Air Slide

44358

special order

58

Lock Washer

40315

special order

59

Counter Bearing for Air Distribution

44356

special order

60

Shaft for Air Distribution

44382

special order

61

Gear Drive Air Slide

44357

special order

62

Screw 3.5x14

44525

special order

70

Blower Unit

44390

special order

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Outer Shell wit Base Plate

44379

special order

2

Cover Nozzle Stock

44079

special order

3

Inner Shell with Base Plate

44378

special order

5

Inner Cover with Flame Tube

44377

special order

6

Exterior Cover

44066

special order

7

Fuel Can 60 Degrees B 1.50gph being 895-1

44077

special order

7.1

Fuel Can 60 degrees B 1.65gph being 1165-1/1525-1

440773

special order

8

Block Electrode

44080

9744080

buy now

9

Nozzle 25mm, 6 slots

440764

special order

10

Shower Holder

44078

special order

11

Stainless Steel Screw M6x10

44177

special order

12

Clamping Plate for Electrode

440761

special order

13

Cylinder Screw with ISK M5x15 DIN6912

440762

special order

15

Intermediate Sleeve

44376

special order

19

Stainless Steel Nut M8

141272

special order

20

Spring Ring A8

44222

special order

21

Optical Flame Sensor

442561

97442561

buy now

22

Screw M4x10

46002

special order

25

Heating Coil

44374

9744374

buy now

27

Insulation Plate

44360

special order

#

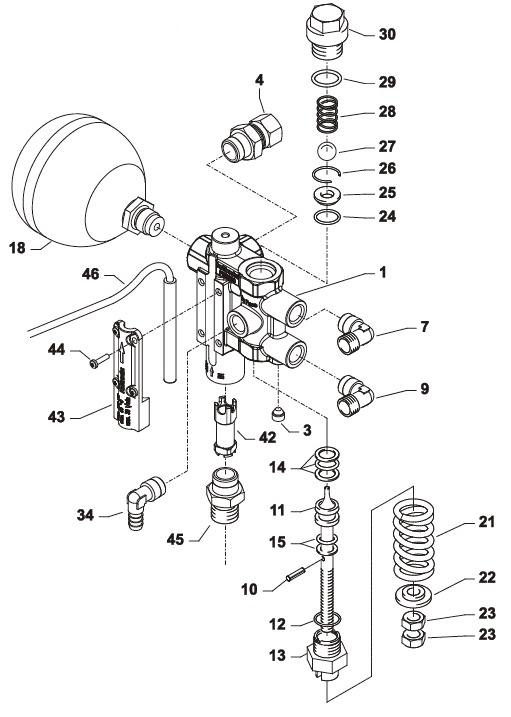

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Valve Body FSB250

14210

special order

3

Sealing Plug M8x1

13158

9713158

buy now

4

Ermeto Screw R3/8"x12mm Connection Pipe Socket

44365

special order

7

Ermeto Angle R 1/4"x8L

40179

special order

9

Ermeto Angle R 1/4"x6L

44062

special order

10

Chip Pin

14148

9714148

buy now

11

Control Piston

14133

9714133

buy now

12

O-Ring

13150

9713150

buy now

13

Piston Guide

14130

9714130

buy now

14

Parbaks 16mM

13159

9713159

buy now

15

Parbaks 8mm

14123

9714123

buy now

18

Hydro Storage

44140

special order

21

Valve Spring

14125

9714125

buy now

22

Spring Pressure Disc

14126

9714126

buy now

23

Hexagon Nut M8x1

14144

9714144

buy now

24

O-Ring 11x1.44

12256

9712256

buy now

25

Stainless Steel Seat 7.0mm

14118

9714118

buy nows

26

Snap Ring

13147

9713147

buy now

27

Stainless Steel Ball 10mm

12122

9712122

buy now

28

Stainless Steel Spring

14119

9714119

buy now

29

O-Ring 13.94x2.62

42167

9742167

buy now

30

Screw Plug

9714113

buy now

33

PVC Hose DNC 0.7m

44403

special order

34

Angled Tulle R 1/4"x8

14212

special order

42

Flow Body

12602

43

Cover

12603

special order

44

Screw M4x10

43470

special order

45

Screw Connection

44364

special order

46

Magnetic Switch

405942

special order

Control Piston Complete

141101

special order

Flow Safety Block Complete

14230

special order

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

5

O-Ring 16x2

13150

9713150

buy now

5.1

O-Ring 13.94x2.62

42167

9742167

buy now

8

O-Ring 11x1.44

12256

9712256

buy now

9

Stainless Steel Seat

14118

9714118

buy now

10

Retaining Ring

13147

9713147

buy now

11

Stainless Steel Ball 8.5mm

13148

special order

12

Stainless Steel Spring

14119

9714119

buy now

13

Screw Plug

14113

9714113

buy now

14

Control Piston

14134

9714134

buy now

15

Parbaks 16mm

13159

9713159

buy now

16

Parbaks 8mm

14123

9714123

buy now

17

Roll Pin

14148

9714148

buy now

18

piston Guide Special

42105

9742105

buy now

19

Nut M8x1

14144

9714144

buy now

20

Valve Spring Black

14125

9714125

buy now

21

Spring Washer

14126

9714126

buy now

22

Needle Bearing

14146

9714146

buy now

23

Handwheel

141472

special order

25

Elastic Stop Mutter

14152

9714152

buy now

26

Parbaks 7mm

15013

9715013

buy now

27

Output Part R 3/8" AG

15012

special order

49

O-Ring 3.3x2.4

12136

9712136

buy now

50

O-Ring 5x1.5

15014

special order

51

Guide Part Control Lever

150091

special order

52

O-Ring 12.3x2.4

15017

9715017

buy now

53

O-Ring14x2

43445

9743445

buy now

54

121362

97121362

buy now

55

Support Disc dm5

15015

9715015

buy now

55.1

Support Disc dm 4

150151

special order

56

Stainless Steel Spring

15016

9715016

buy now

57

Tax Stable Long

150102

97150102

buy now

58

Parbaks

15013

9715013

buy now

59

Plug Drilled Through M10x1

133851

special order

60

Ehause Electrical Switch Black

15007

special order

60.1

Ehause Electrical Switch Red

150071

special order

61

Rubber Sleeve

15020

special order

62

Disc PG9

15021

special order

63

Screw Connection PG9

15022

special order

64

Cable 2x1.0mm 0.70m black

44367

special order

64.1

Cable 2x1.0mm 0.70 gray

44368

special order

65

Self Tapping Screw 2.9x16

15024

special order

66

Cover Electrical Switch Black

15008

special order

66.1

Cover Electrical Switch Red

150081

special order

67

O-Ring 44x2.5

15023

special order

68

Microswitch

44262

special order

69

Cylinder Head Screw M4x20

15025

special order

70

Hexagon Nut M4

15026

special order

72

Compression Spring 1x8.6x30

40520

special order

73

Basic part Electrical Switch

15009

special order

74

Control Piston

15010

special order

80

Control Piston Complete with Handwheel

44209

9744209

buy now

81

Rep. Set Pressure Switch Mechanics

150093

97150093

buy now

82

Pressure Switch Without Mechanics

443891

97443891

buy now

83

Valve Housing Complete without Switch

405037

special order

84

Rep Set Pressure Switch Mechanics 3/8" AG

150112

97150112

buy now

85

Push Button Switch Without Mechanics

44389

9744389

buy now

86

Push Button Switch with Mechanics (Pos 81 + 82)

443892

special order

87

Push Button Switch with Mechanics (Pos. 84 + 84)

443893

special order

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Valve Housing

405034

special order

2

O-Ring 18x2

40016

9740016

buy now

3

Exhaust OUtlet

42024

9742024

buy now

4

o-Ring 21x2

42025

9742025

buy now

5

Valve Plug

42026

9742026

buy now

6

Retaining Ring

40032

9740032

buy now

7

Hexagon Socket Screw M12x45

40504

9740504

buy now

13

fabric Cuff 20mm

40023

9740023

buy now

14

Back Ring 20mm

40025

9740025

buy now

15

O-Ring 31.42x2.62

40508

9740508

buy now

16

Leakage Ring 20mm

40509

9740509

buy now

17

Copper Sealing Ring 21x28x1.5

42039

9742039

buy now

18

Cuff 20mm

40512

9740512

buy now

19

Screw Plug R 1/2"

42032

9742032

buy now

20

Spacer Ring with Support

40507

9740507

buy now

21

Screw Plug R 1/2" with Grommet

420321

special order

23

Pressure Ring 20mm

40021

9740021

buy now

24

Spacer Ring 20mm

40516

9740516

buy now

25

O-Ring 11x1.5

12256

9712256

buy now

26

Stainless Steel Seat 7mm

14118

9714118

buy now

27

Snap Ring

13147

9713147

buy now

28

Pump Output Part R 1/4"x12L

44394

special order

29

Sealing Ring

40019

9740019

buy now

30

Plug 3/8"

40018

9740018

buy now

31

Sealing Plug M10x1

43043

special order

32

Sealing Plug M8x1

13158

9713158

buy now

33

Output Part

40522

9740522

buy now

34

Stainless Steel Ball 10mm

12122

9712122

buy now

35

Recoil Spring K

141201

97141201

buy now

37

O-Ring 18x2

43446

special order

Repair set Valves

400621

97400621

buy now

Rep Set of Cuffs Without Brass Parts

40517

9740517

buy now

Rep Set Cuffs with Brass Parts

400651

97400651

buy now

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Tranmission Housing

40501

9740501

buy now

4

Hexagon Socket Screw M8x30

410361

97410361

buy now

5

Lock Washer

40054

9740054

buy now

6

Flat Gasket

40511

special order

7

Oil Seal 20x30x7

400441

97400441

buy now

8

Wave Washer

40043

9740043

buy now

9

Axial Roller Cage

40040

9740040

buy now

10

Housing Disc

40039

9740039

buy now

11

Swashplate 9.5 degrees at 895-1

40523-9.5

9740523-9.5

buy now

11.1

Swashplate 12 degrees at 1165-1

40523-12.0

special order

12

Plunger Spring

40506

9740506

buy now

13

Spring Pressure Disc

40510

9740510

buy now

14

Plunger 20mm (long)

40505

9740505

buy now

15

Snap Ring

40048

special order

16

O-Ring 14x2

43445

9743445

buy now

17

Screw Plug M18x1.5

41011

9741011

buy now

18

Flat Gasket

410193

97410193

buy now

19

Lid

40518

special order

20

Hexagon Socket Screw M5x12

410194

97410194

buy now

21

Oil Dipstick

42520

9742520

buy now

22

Support Disc for Plunger Spring

40513

9740513

buy now

23

Screw-In Angle 3/8"x3/8"

44127

9744127

buy now

24

Oil Drain Hose

441281

special order

25

Copper Ring

14149

9714149

buy now

26

Cap

44130

9744130

buy now

Transmission AQ Complete without Swashplate

40514

9740514

buy now

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Starter 112 5.5kW 400V/50Hz

40540

special order

2

A-bearing Flange

40550

special order

3

Rotor 112 400V/50Hz

405315

special order

4

Air Wheel BG112

40532

9740532

buy now

5

Fan Hood BG112

40533

9740533

buy now

6

Terminal Box

40534

special order

7

Flat Gasket

43030

special order

8

Chandelier Clamp 2.5mm 4-pole

430311

special order

9

PG Screw Connection PG13.5

40539

special order

10

Tapered Rolling Bearings 31306

40103

9740103

buy now

11

Oil Seal 35x47x7

40080

9740080

buy now

12

Keyway 8x7x28

40459

special order

13

Ball Bearings 6206-2Z

40538

special order

14

Hexagon Socket Screw M6x30

43037

special order

15

Tolerance Sleeve

405441

special order

16

Self Tapping Screw 2.9x16

43036

special order

17

V-Seal

40545

special order

19

Screw M4x12

4189

special order

20

Clamp d=for Fan Wheel BG112

40535

special order

21

Screw M4x12

41489

special order

22

Grounding Screw Complete

43038

special order

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Filter Base Body

13301

special order

2

Filter Cup

13302

9713302

buy now

3

Sieve Body

13304

special order

4

Rubber Seal

13303

9713303

buy now

5

Rubber Seal 3/4"

410471

97410471

buy now

6

Entrance Part both 3/4" AG

13305

special order

7

Connecting Part

13306

9713306

buy now

8

O-Ring 14x2

43445

9743445

buy now

9

Spout

13307

special order

10

O-Ring 13x2.6

13272

9713272

buy now

11

Union Nut

41047

special order

Filter Complete Pos. 1-11

133003

special order

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Side Shell Hose Guide

40302

special order

2

Side Shell Water guide

40301

special order

3

Drum Bottom Part

40304

special order

4

Drum Top

40303

special order

5

Hexagon Socket Screw M4x25

40313

special order

6

Bearing Block with Brake

40306

special order

7

Bearing Block Left

40305

special order

8

Clamp Piece

40307

special order

9

Plastic Screw 5.0x20

43018

9743018

buy now

10

Drive Shaft

40310

9740310

buy now

11

Wave Water Flow

40323

special order

12

Elastic Stop Mutter M4

40111

special order

13

Crank Complete

403200

special order

14

Locking Bolt

40312

special order

16

Shaft Retaining Ring 22mm

40117

9740117

buy now

20

Sealing Set

134101

special order

21

Lock Washer 6DIN6799

40315

special order

22

Screw M5x10

43021

9743021

buy now

23

Ermetowinkel R1/4" AGx12L

44864

special order

35

Retaining Bracket

44143

special order

36

Rubber Stoppers

402081

special order

37

Carriage Bolt M8x40

44159

special order

38

Elastic Stop Mutter M8

44159

special order

40

Hook

42612

special order

42

O-Ring 9.3x2.4

13273

9713273

buy now

44

Connecting Hose NW8 1m

44385

special order

45

High Pressure Hose NW8 20m

443812

97443812

buy now

60

Hose Reel Complete

44392

97443921

buy now

61

Retaining Bracket

441431

special order
