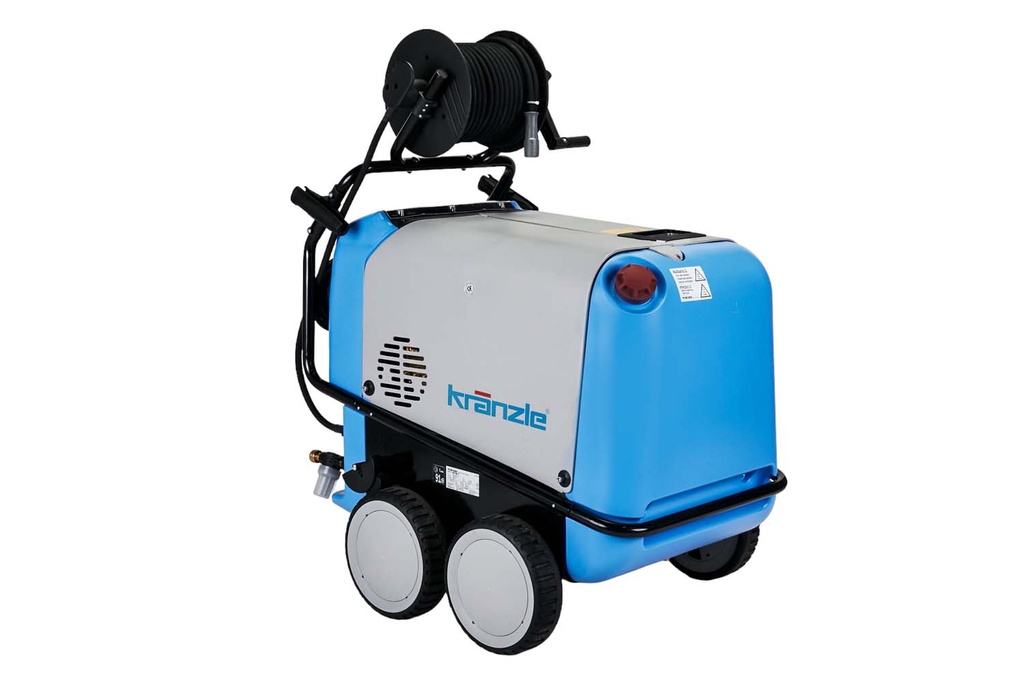

Kränzle K1165TST 2400 PSI 5.5 GPM Hot Water Electric Pressure Washer | PN 9800244
| Special Shipping Method: Freight |
- Kranzle adjustable pressure unloader
- Inlet water filter
- Schedule 80 heating coil
- Precise digital temperature control
- Flame safety monitor
- Steam-capable
- Downdraft fuel-efficient 220V burner
- Steel frame with plastic cover that holds all accessories
- Auto on / off gun-jet control
- Safety shutdown
- High-pressure chemical injection
- 65 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Fan spray nozzle
- Industrial Dirt Killer Turbo Nozzle
Kranzle K1165TST 2400 PSI 5.5 GPM Hot Water Electric Pressure Washer
The K1165TST hot water electric pressure washer produces 2400 PSI, 5.5 gallons per minute of heavy-duty industrial cleaning power. It is perfect for use in a food-processing plant, vehicle wash bay or for cleaning returned rental equipment. Its German-design Kranzle pump is built to the highest standards, with run-dry and multi-hour bypass capabilities.
The K1165TST is part of our Therm series and uses a downdraft coil-burner assembly rather than top-fed coils. This makes for a much more efficient unit. It also features an optical flame monitoring system, automatic on / off gun-jet control with a 30-second time delay and safety shutdown after 20 minutes. This model not only gets the job done, it gets it done safely!Specifications:
PSI: 2400 max adjustable
GPM: 5.0
Electrical Requirements: 220-230V, 25A, 60Hz, three-phase. **NOTE: operating this machine on a 208V circuit will require a step-up transformer to prevent malfunction.**
(also available in 440V model; contact us for more info)
Weight: 484 lb
Dimensions: 41 inches length, 32 inches width, 47 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:
Complete Assembly Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Cockpit | 44351 | special order | |
2 | Fuel Tank | 44004 | 9744004 | |
3 | Water Tank | 44009 | special order | |
5 | Lance Cooker | 44008 | special order | |
6 | Right Hood | 44032 | 9744032 | |
7 | Left Hood | 44031 | 9744031 | |
8 | Wheel | 44017 | special order | |
9 | Hubcap | 44018 | special order | |
10 | Brake Pedal | 44022 | special order | |
11 | Brake Lever | 44023 | special order | |
12 | Brake Pad | 44024 | 9744024 | |
13 | Tank Cap with O-Ring | 44005 | 9744005 | |
14 | Chassis | 44001 | special order | |
15 | Front Bow | 44002 | special order | |
16 | Push Bar | 44003 | special order | |
17 | Reeling | 440161 | special order | |
18 | Top Strut | 44019 | special order | |
19 | Starlock Cap 20mm | 40142 | 9740142 | |
20 | O-Ring 70x5 | 44020 | 9744020 | |
21 | Hexagon Socket Screw M8x12 | 40122 | special order | |
22 | Hexagon Socket Screw M8x40 | 44033 | special order | |
23 | Washer 8.4 DIN 9021 | 41409 | special order | |
24 | Screw 3.9x16 | 12150 | special order | |
25 | Pen 6x50 | 44035 | special order | |
26 | Starlock Cap 8mm | 44165 | special order | |
27 | Carriage Bolt M8x35 | 41408 | special order | |
28 | Fuel Tank Drain Plug | 440041 | special order | |
29 | Pen 6x40 | 440351 | special order | |
30 | Elastic Stop Mutter M8 | 41410 | 9741410 | |
31 | Seal for Oil Drain Plug | 410471 | 97410471 |
32 | Power Cable with Plug 8.0m, 4x 1.5 mm, H07RNF | 44036 | special order | |
33 | Plastic Screw 6x30 | 434231 | special order | |
35 | Disc | 44034 | 9744034 | |
36 | Star Grip | 501681 | 97501681 | |
37 | High Pressure NW 8 10m | 410813 | special order | |
37.1 | High Pressure NW 8 20m | 443812 | 97443812 | |
38 | O-Ring 9.3x2.4 Viton | 132731 | special order | |
39 | Pistole with Extension Starlet II | 123202 | 9712519 | |
40 | Lance with Flat jet Nozzle 25045 (therm 895-1) | 12392-D25045 | special order | |
40.1 | Lance with Flat Jet Nozzle 25070 (therm 1165-1) | 12392-D25070 | special order |
Electronic Control Box Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Electrical Box | 448071 | special order | |
2.1 | Cover for Electrical Box therm 895-1 | 470143 | special order | |
2.2 | Cover for Electrical Box therm 1165-1 | 470144 | special order | |
3 | Front Panel Manometer | 443751 | special order | |
4 | Cable Winding | 44822 | 9744822 | |
5 | Screw 5x25 | 414141 | special order | |
6 | Stand for Switch | 44810 | special order | |
7 | Screw 5.0x14 | 43426 | special order | |
8 | Bracket for Thermostat | 47012 | special order | |
9 | Seal for Thermostat | 47013 | special order | |
10 | Seal for Switch | 44817 | special order | |
11 | Switch | 44835 | 9744835 | |
12 | Mutter M4 | 40111 | special order | |
13 | Seal for Lid | 441821 | special order | |
14 | Control Panel for Control Board | 44257 | special order | |
15 | Cover for Over temperature Release | 44361 | special order | |
16 | Control board over Temperature Trigger | 44370 | 9744370 | |
17 | Screw 3.5x8 | 43430 | special order | |
18 | Screw 4.0x16 | 43417 | 9743417 | |
19 | Grounding Terminal | 44839 | special order | |
22 | Control Board 400V/ 50/60 Hz | 44359 | 9744359 | |
23 | Protection 400V/ 50/60 Hz | 460051 | 97460051 | |
24 | Screw with 4.0x25 washer | 43425 | special order | |
25.1 | Overcurrent Release 15A 3-pol | 460403 | special order |
26 | Cable Trumpet with Strain Relief | 44819 | special order | |
27 | Strain Relief Clamp | 43431 | special order | |
28 | Screw 3.5x14 | 44525 | special order | |
29 | Three-Phase Power Supply Cable 8.0m, 4x1.5mm, H07RNF | 44036 | special order | |
30 | PG16 Screw Connection 1 | 414191 | ||
31 | PG16 Screw Connection Bushings 2 | 44132 | special order | |
32 | PG16 Screw Connection Bushings 3 | 44133 | special order | |
33 | Manometer | 15039 | 9715039 | |
34 | Fuel Pressure Gauge | 44362 | special order | |
35 | Plug DN6x R1/4" IG | 44406 | special order | |
37 | Fine Fuse 1.25 A (microfuse) | 44676 | 9744676 | |
38 | Fine Fuse 2.0 A (microfuse) | 448891 | 97448891 | |
39 | Fine Fuse 630 mA (microfuse) | 442002 | 97442002 | |
40 | Holding bridge | 44352 | special order | |
41 | Screw M5x10 | 43021 | 9743021 | |
42 | Fine Fuse 32 mA | 442001 | 97442001 | |
45 | Grommet for Capillary Tube | 44823 | special order | |
47 | Electrical Box Seal | 44838 | special order | |
48 | Clamp for Manometer | 44049 | 9744049 | |
49 | Connection Sleeve Manometer | 44136 | 9744136 | |
51 | Hose Clamp 9-9 | 44054 | special order | |
52 | Hose for Detergent Suction | 44055 | special order | |
53 | Hose with Filter and Check Valve | 440561 | special order | |
54 | Check Valve for Detergent | 442401 | 97442401 | |
55 | Pressure Measuring Line | 441021 | special order |
Water Supply Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Water Tank | 44009 | special order | |
2 | Float Valve | 462505 | 97462505 | |
4 | Nut R3/4" | 46258 | 9746258 | |
5 | Connecting Piece R 3/8" IG | 41423 | ||
7 | Inlet Hose | 44027 | special order | |
9 | O-Ring 13x2.6 | 13272 | 9713272 | |
10 | Hose Nozzle | 44126 | 9744126 | |
11 | Union Nut | 41047 | special order | |
12 | Hose Clamp 12-22 | 440542 | special order | |
13 | Water Inlet Hose | 44028 | 9744028 | |
14 | Hose Nozzle R3/8"x13 | 44029 | special order | |
16 | Hose Water Outlet | 44840 | special order | |
17 | Retaining Disc | 44841 | special order | |
18 | Screw DIN912 M5x12 | 410194 | 97410194 | |
20 | Water Outlet Part | 44855 | special order | |
30 | Chemical Valve Complete | 46616 | special order | |
31 | Basic Part Angle Valve | 46608 | special order | |
32 | Valve Needle | 46601 | special order | |
33 | Disc | 43045 | 9743045 | |
34 | Parbaks 6mm | 15013 | 9715013 | |
35 | O-Ring | 12256 | 9712256 | |
36 | Leadership Part | 46602 | special order | |
37 | Handwheel | 46607 | special order | |
38 | Brass Screw M4x8 | 46604 | special order | |
39 | Nut M18x1 | 40185 | special order | |
40 | Suction Cup M6 | 46605 | special order | |
41 | Hose Clamp | 44363 | special order | |
42 | Plastic Hose for Detergent Suction | 44055 | special order | |
43 | Plastic Hose with Filter | 44056 | special order |
Fuel Supply Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Fuel Supply Cover | 44011 | special order | |
2 | Flange with Fuel Line | 44010 | 9744010 | |
3 | Rubber Seal | 44012 | special order | |
4 | PA-Hose DN6 (0.22m) | 44403 | special order | |
5 | Float Switch | 44014 | special order | |
6 | Connectors 6-6 | 44404 | special order | |
7 | Fuel Line Pump | 441081 | special order | |
8 | PA-Hose DN6 (0.84m) | 44403 | special order | |
9 | PA-Hose DN6 (0.32m) | 44403 | special order | |
10 | Connector Angle 1/4" x6 | 44405 | 9744405 | |
11 | Screw 5.0x25 | 414141 | special order | |
12 | Plug Connector 1/8"x6 | 44407 | 9744407 | |
13 | Ermeto Screw Connection R1/8"x 6L | 44372 | special order | |
14 | Connector Angle 1/8"x6 | 44408 | 9744408 | |
16 | Fuel Filter Connection Part | 44214 | special order | |
17 | Rubber Seal 3/4" | 410471 | 97410471 | |
18 | Filter Base Body | 13301 | special order | |
19 | Rubber Seal | 13303 | 9713303 | |
20 | Fuel Filter Screen Body | 44213 | 9744213 | |
21 | Filter Cup | 13302 | 9713302 | |
22 | Screw In Angle R1/4" AGx10L | 401211 | special order | |
23 | Fuel Pump with Solenoid Valve | 44073 | 9744073 | |
24 | PA-Hose DN6 (0.93m) | 44403 | special order | |
25 | Coil for Solenoid Valve | 442513 | special order | |
26 | Solenoid Valve | 44251 | special order | |
27 | Spacer Tube 128mm | 44084 | special order | |
31 | Double Nipple 1/4"x1/4" | 442512 | special order | |
40 | Fuel Pump Complete | 44371 | 9744371 | |
41 | Fuel Filter Complete | 44391 | special order |
Combustion Chamber Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Retaining Plate Ignition Transformer | 448211 | special order | |
2 | Holding Base Ignition Cable | 44369 | special order | |
3 | Ignition Transformer | 44074 | special order | |
4 | Screw M5x50 | 44113 | special order | |
5 | High-Voltage Ignition Cable | 441142 | special order | |
7 | Ring Nut M8 DIN582 | 44115 | special order | |
8 | Spring Ring A8 | 44222 | special order | |
9 | Stainless Steel Nut M8 | 141272 | special order | |
11 | Fuel Line 115mm | 440891 | special order | |
12 | Angle Screw Connection 6Lx 6L | 44106 | special order | |
13 | Fuel Line Pump | 441081 | special order | |
14 | Stainless Steel Screw M6x10 | 44177 | special order | |
15 | HD-Hose Inlet Saftey Valve | 44383 | special order | |
16 | Self Tapping Screw 6.3x13 | 44109 | special order | |
17 | Washer A 10.5 DIN9021 | 50182 | special order | |
18 | Hexagon Screw M 10x20 DIN 933 | 44116 | special order |
19 | Pressure Measuring Line | 441021 | special order | |
20 | Blown Nozzle | 44068 | special order | |
21 | Blower Housing | 44353 | special order | |
22 | Air Wheel | 44380 | special order | |
23 | Blower Cover | 44354 | special order | |
24 | Burner Engine 230V/50Hz | 440725 | special order | |
25 | Plug In Coupling | 44085 | 9744085 | |
26 | HD-Hose Inlet Combustion Chamber | 44384 | special order | |
27 | Air Damper | 44355 | special order | |
28 | Screw 5.0x14 | 43426 | special order | |
29 | Screw M5x12 | 40134 | 9740134 | |
30 | Screw 5.0x25 | 414141 | special order | |
31 | Washer 4.3 | 44059 | special order | |
32 | Screw M4x8 | 44091 | special order | |
33 | Threaded Pin M6x8 DIN 914 | 44090 | special order | |
34 | Screw 5.3 | 50152 | 9750152 | |
39 | Hose Water Outlet | 44840 | special order |
40 | Temperature Sensor | 449541 | 97449541 | |
41 | Ermeto Nut 12mm | 40075 | 9740075 | |
42 | T-Screw In Fitting | 44173 | special order | |
43 | Screw In Elbow Fitting 3/8"x12L | 44092 | special order | |
44 | High Pressure Hose | 44093 | 9744093 | |
45 | Clamp Ring for measuring line Thermostat | 440871 | special order | |
46 | Measuring Line Thermostat | 441012 | special order | |
48 | Cutting Ring 12mm | 40074 | special order | |
49 | Union Nut for Ermeto 12mm | 40075 | 974075 | |
50 | Water Pipe with Fittings | 44030 | 9744030 | |
51 | End Ring | 440861 | special order | |
52 | Threaded Pin M6x8 DIN 914 | 44090 | special order | |
53 | Self Tapping Screw 4.8x13 | 44112 | special order | |
54 | Over Temperature Sensor | 44388 | special order | |
55 | Nut | 44172 | special order | |
56 | Disc 6.4 | 50174 | special order | |
57 | Rotary Knob for Air Slide | 44358 | special order | |
58 | Lock Washer | 40315 | special order | |
59 | Counter Bearing for air Distribution | 44356 | special order | |
60 | Shaft for Air Distribution | 44382 | special order | |
61 | Gear Drive Air Slide | 44357 | special order | |
62 | Screw 3.5x14 | 44525 | special order | |
70 | Blower Unit | 44390 | special order |
Combustion Chamber Spare Parts #2
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Outer Shell with Base Plate | 44379 | special order | |
2 | Cover Nozzle Stock | 44079 | special order | |
3 | Inner Shell with base Plate | 44378 | special order | |
5 | Inner Cover with Flame Tube | 44377 | special order | |
6 | Exterior Cover | 44066 | special order | |
7 | Fuel Can 60 degrees B 1.50gph being 895-1 | 44077 | special order | |
7.1 | Fuel Can 60 degrees B 1.65gph being 1165-1/1525-1 | 440773 | special order | |
8 | Block Electrode | 44080 | 9744080 | |
9 | Nozzle 25mm, 6 slots | 440764 | special order | |
10 | Shower Holder | 44078 | special order | |
11 | Stainless Steel Screw M6x10 | 44177 | special order | |
12 | Clamping Plate for Electrode | 440761 | special order | |
13 | Cylinder Screw with ISK M5x15 DIN6912 | 440762 | special order | |
15 | Intermediate Sleeve | 44376 | special order | |
19 | Stainless Steel Nut M8 | 141272 | special order | |
20 | Spring Ring A8 | 44222 | special order | |
21 | Optical Flame Sensor | 442561 | 97442561 | |
22 | Screw M4x10 | 46002 | special order | |
25 | Heating Coil | 44374 | 9744374 | |
27 | Insulation Plate | 44360 | special order |
Flow Safety Block Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Body FSB250 | 14210 | special order | |
3 | Sealing Plug M8x1 | 13158 | 9713158 | |
4 | Ermeto Screw R3/8"x12mm Connection Pipe Socket | 44365 | special order | |
7 | Ermeto Angle R 1/4" x 8L | 40179 | special order | |
9 | Ermeto Angle R 1/4" x 6L | 44062 | special order | |
10 | Chip Pin | 14148 | 9714148 | |
11 | Control Piston | 14133 | 9714133 | |
12 | O-Ring | 13150 | 9713150 | |
13 | Piston Guide | 14130 | 9714130 | |
14 | Parbaks 16mm | 13159 | 9713159 | |
15 | Parbaks 8mm | 14123 | 9714123 | |
18 | Hydro Storage | 44140 | special order | |
21 | Valve Spring | 14125 | 9714125 | |
22 | Spring Pressure Disc | 14126 | 9714126 | |
23 | Hexagon Nut M8x1 | 14144 | 9714144 | |
24 | O-Ring 11x1.44 | 12256 | 9712256 |
25 | Stainless Steel Seat 7.0mm | 14118 | 9714118 | |
26 | Snap Ring | 13147 | 9713147 | |
27 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
28 | Stainless Steel Spring | 14119 | 9714119 | |
29 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
30 | Screw Plug | 14113 | 9714113 | |
33 | PVC Hose DN6 0.7m | 44403 | special order | |
34 | Angled Tulle R 1/4"x8 | 14212 | special order | |
42 | Flow Body | 12602 | special order | |
43 | Cover | 12603 | special order | |
44 | Screw M4x10 | 43470 | special order | |
45 | Screw Connection M18x1.5x12L | 44364 | special order | |
46 | Magnetic Switch | 405942 | special order | |
Control Piston Complete | 141101 | special order | ||
Flow Safety Block Complete | 14230 | special order |
Unloader and Pressure Switch Spare Parts
# | Part Name | German Part # | Kanzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Retaining Ring | 13147 | 9713147 | |
11 | Stainless Steel Ball 8.5mm | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Screw Plug | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Roll Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring Black | 14125 | 9714125 | |
21 | Spring Washer | 14126 | 9714126 |
22 | Needle Bearing | 14146 | 9714146 | |
23 | Handwheel | 141472 | special order | |
25 | Elastic Stop Mutter | 14152 | 9714152 | |
26 | Parbaks 7mm | 15013 | 9715013 | |
27 | Output Part R3/8" AG | 15012 | special order | |
49 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
50 | O-Ring 5x1.5 | 15014 | special order | |
51 | Guide Part Control Lever | 150091 | special order | |
52 | O-Ring 12.3x2.4 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disc dm5 | 15015 | 9715015 | |
55.1 | Support Disc dm 4 | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Tax Stable Long | 150102 | 97150102 | |
58 | Parbaks | 15013 | 9715013 | |
59 | Plug Drilled Through M10x1 | 133851 | special order | |
60 | Ehause Electrical Switch Black | 15007 | special order | |
60.1 | Ehause Electrical Switch Red | 150071 | special order | |
61 | Rubber Sleeve | 15020 | special order | |
62 | Disc PG9 | 15021 | special order | |
63 | Screw Connection PG9 | 15022 | special order |
64 | Cable 2x1.0mm 0.70m black | 44367 | special order | |
64.1 | Cable 2x1.0mm 0.70 gray | 44368 | special order | |
65 | Self Tapping Screw 2.9x16 | 15024 | special order | |
66 | Cover Electrical Switch Black | 15008 | special order | |
66.1 | Cover Electrical Switch Red | 150081 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Microswitch | 44262 | special order | |
69 | Cylinder Head Screw M4x20 | 15025 | special order | |
70 | Hexagon Nut M4 | 15026 | special order | |
72 | Compression Spring 1x8.6x30 | 40520 | special order | |
73 | Basic Part Electrical Switch | 15009 | special order | |
74 | Control Piston | 15010 | special order | |
80 | Control Piston Complete with Handwheel | 44209 | 9744209 | |
81 | Rep. Set Pressure Switch Mechanics | 150093 | 97150093 | |
82 | Pressure Switch without Mechanics | 443891 | 97443891 | |
83 | Valve Housing Complete without Switch | 405037 | special order | |
84 | Rep Set Pressure Switch Mechanics 3/8" AG | 150112 | 97150112 | |
85 | Push Button Switch Without Mechanics | 44389 | 9744839 | |
86 | Push Button Switch with Mechanics (Pos 81+82) | 443892 | special order | |
87 | Push Button Switch with Mechanics (Pos. 84+84) | 443893 | special order |
Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing | 405034 | special order | |
2 | O-Ring 18x2 | 40016 | 9740016 | |
3 | Exhaust Outlet | 42024 | 9742024 | |
4 | O-Ring 21x2 | 42025 | 9742025 | |
5 | Valve Plug | 42026 | 9742026 | |
6 | Retaining Ring | 40032 | 9740032 | |
7 | Hexagon Socket Screw M12x45 | 40504 | 9740504 | |
13 | Fabric Cuff 20mm | 40023 | 9740023 | |
14 | Back Ring 20mm | 40025 | 9740025 | |
15 | O-Ring 31.42x2.62 | 40508 | 9740508 | |
16 | Leakage Ring 20mm | 40509 | 9740509 | |
17 | Copper Sealing Ring 21x28x1.5 | 42039 | 9742039 | |
18 | Cuff 20mm | 40512 | 9740512 | |
19 | Screw Plug R 1/2" | 42032 | 9742032 | |
20 | Spacer Ring with Support | 40507 | 9740507 | |
21 | Screw Plug R 1/2" with Grommet | 420321 | special order | |
23 | Pressure Ring 20mm | 40021 | 9740021 | |
24 | Spacer Ring 20mm | 40516 | 9740516 | |
25 | O-Ring 11x1.5 | 12256 | 9712256 | |
26 | Stainless Steel Seat 7mm | 14118 | 9714118 | |
27 | Snap Ring | 13147 | 9713147 | |
28 | Pump Output Part R1/4"x12L | 44394 | special order | |
29 | Sealing Ring | 40019 | 9740019 | |
30 | Plug 3/8" | 40018 | 9740018 | |
31 | Sealing Plug M10x1 | 43043 | special order | |
32 | Sealing Plug M8x1 | 13158 | 9713158 | |
33 | Output Part | 40522 | 9740522 | |
34 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
35 | Recoil Spring K | 141201 | 97141401 | |
37 | O-Ring 18x2 | 43446 | special order | |
Repair set valves | 400621 | 97400621 | ||
Rep Set of Cuffs Without Brass Parts | 40517 | 9740517 | ||
Rep Set Cuffs with Brass Parts | 400651 | 97400651 |
Drive Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing | 40501 | 9740501 | |
4 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
5 | Lock Washer | 40054 | 9740054 | |
6 | Flat Gasket | 40511 | special order | |
7 | Oil Seal 20x30x7 | 400441 | 97400441 | |
8 | Wave Washer | 40043 | 9740043 | |
9 | Axial Roller Cage | 40040 | 9740040 | |
10 | Housing Disc | 40039 | 9740039 | |
11 | Swashplate 9.5 degrees at 895-1 | 40523-9.5 | 9740523-9.5 | |
11.1 | Swashplate 12 degrees at 1165-1 | 40523-12.0 | special order | |
12 | Plunger Spring | 40506 | 9740506 | |
13 | Spring Pressure Disc | 40510 | 9740510 | |
14 | Plunger 20mm (long) | 40505 | 9740505 | |
15 | Snap Ring | 40048 | special order | |
16 | O-Ring 14x2 | 43445 | 9743445 | |
17 | Screw Plug M18x1.5 | 41011 | 9741011 | |
18 | Flat Gasket | 410193 | 97410193 | |
19 | Lid | 40518 | special order | |
20 | Hexagon Socket Screw M5x12 | 410194 | 97410194 | |
21 | Oil Dipstick | 42520 | 9742520 | |
22 | Support Disc for Plunger Spring | 40513 | 9740513 | |
23 | Screw-In Angle 3/8"x3/8" | 44127 | 9744127 | |
24 | Oil Drain Hose | 441281 | special order | |
25 | Copper Ring | 14149 | 9714149 | |
26 | Cap | 44130 | 9744130 | |
Transmission AQ Complete without Swashplate | 40514 | 9740514 |
Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Starter 112 5.5kW 400V/50Hz | 40540 | special order | |
2 | A-Bearing Flange | 40530 | special order | |
3 | Rotor 112 400V/50Hz | 405315 | special order | |
4 | Air Wheel BG112 | 40532 | 9740532 | |
5 | Fan Hood BG112 | 40533 | 9740533 | |
6 | Terminall Box | 40534 | special order | |
7 | Flat Gasket | 43030 | special order | |
8 | Chandelier Clamp 2.5mm 4-pole | 430311 | special order | |
9 | PG Screw Connection PG13.5 | 40539 | special order | |
10 | Tapered Rolling Bearings 31306 | 40103 | 9740103 | |
11 | Oil Seal 35x47x7 | 40080 | 9740080 | |
12 | Keyway 8x7x28 | 40459 | special order | |
13 | Ball Bearings 6206-2Z | 40538 | special order | |
14 | Hexagon Socket Screw M6x30 | 43037 | special order |
15 | Tolerance Sleeve | 405441 | special order | |
16 | Self Tapping Screw 2.9x16 | 43036 | special order | |
17 | V-Seal | 40545 | special order | |
19 | Screw M4x12 | 41489 | special order | |
20 | Clamp for Fan Wheel BG112 | 40535 | special order | |
21 | Screw M4x12 | 41489 | special order | |
22 | Grounding Screw complete | 43038 | special order |
Water Filter Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Filter Base Body | 13301 | special order | |
2 | Filter Cup | 13302 | 9713302 | |
3 | Sieve Body | 13304 | special order | |
4 | Rubber Seal | 13303 | 9713303 | |
5 | Rubber Seal 3/4" | 410471 | 97410471 | |
6 | Entrance Part both 3/4" AG | 13305 | special order | |
7 | Connecting Part | 13306 | 9713306 | |
8 | O-Ring 14x2 | 43445 | 9743445 | |
9 | Spout | 13307 | special order | |
10 | O-Ring 13x2.6 | 13272 | 9713272 | |
11 | Union Nut | 41047 | special order | |
Filter Complete Pos. 1-11 | 133003 | special order |
Hose Reel Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Side Shell Hose Guide | 40302 | special order | |
2 | Side Shell Water Guide | 40301 | special order | |
3 | Drum Bottom Part | 40304 | special order | |
4 | Drum Top | 40303 | special order | |
5 | Hexagon Socket Screw M4x25 | 40313 | special order | |
6 | Bearing Block with Brake | 40306 | special order | |
7 | Bearing Block Left | 40305 | special order | |
8 | Clamp Piece | 40307 | special order | |
9 | Plastic Screw 5.0x20 | 43018 | 9743018 | |
10 | Drive Shaft | 40310 | 9740310 | |
11 | Wave Water Flow | 40323 | special order | |
12 | Elastic Stop Mutter M4 | 40111 | special order | |
13 | Crank Complete | 403200 | special order | |
14 | Locking Bolt | 40312 | special order | |
16 | Shaft Retaining Ring 22mm | 40117 | 9740117 | |
20 | Sealing Set | 134101 | special order | |
21 | Lock Washer 6DIN6799 | 40315 | special order | |
22 | Screw M5x10 | 43021 | 9743021 | |
23 | Ermetowinkel R1/4" AGx12L | 44864 | special order | |
35 | Retaining Bracket | 44143 | special order | |
36 | Rubber Stoppers | 402081 | special order | |
37 | Carriage Bolt M8x40 | 44159 | special order | |
38 | Elastic Stop Mutter M8 | 41410 | 9741410 | |
40 | Hook | 42612 | special order | |
42 | O-Ring 9.3x2.4 | 13273 | 9713273 | |
44 | Connecting Hose NW8 1m | 44385 | special order | |
45 | High Pressure Hose NW8 20m | 443812 | 97443812 | |
60 | Hose Reel Complete | 44392 | 9744392 | |
61 | Retaining Bracket | 441431 | special order |
