Kränzle K700TST 2500 PSI 3.3 GPM Electric Pressure Washer | PN 98K700TST
Special Shipping Method: Freight |
- Kranzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Auto on/off gun-jet control with a 30-second time delay
- Safety shutdown after 20 minutes
- 65 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Fan spray nozzle
- Dirt Killer Turbo Nozzle
Quadro k700 TST electric pressure washer
The K700TST cold water electric pressure washer produces 2500 PSI, 3.3 gallons per minute of power, and is great for cleaning hotels, convenience stores, and other buildings. Its self-priming, freeze-proof Kranzle pump can run dry or on bypass for hours -- making it perfect for heavy-duty industrial cleaning. This model also features an automatic on / off gun-jet control and safety shutdown.
Specifications:
PSI: 2500 max adjustable
GPM: 3.3
Electrical Requirements: 220V, 23A, 60Hz
Weight: 196 lb
Dimensions: 31 inches length, 23 inches width, 40 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:
Complete Assembly Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
2 | Push Bow | 42601 | special order | |
3 | Star Grip Nut M8 | 42619 | special order | |
4 | Plug | 42613 | special order | |
5 | Water Box | 42603 | special order | |
6 | Lane Rest | 42604 | special order | |
7 | Cable Storage at the Bottom | 42611 | special order | |
8 | Strain Relief | 43431 | special order | |
9 | Sheet Metal Screw 3.5x12 | 40290 | special order | |
10 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
11 | Disc 21 DIN125 | 40207 | special order | |
12 | Screw M8x50 DIN912 | 42620 | special order | |
13 | Disc 8.4 DIN125 | 50186 | special order | |
14 | Cable Storage at the Top | 42612 | special order | |
15 | Ruber Buffers 25x25 | 44227 | special order | |
16 | Wheel | 44017 | special order | |
17 | Splint 5x28 DIN94 | 42614 | special order | |
18 | Hubcap | 44018 | special order | |
19 | Front Panel Quadro 700TST | |||
20 | Lance Holder | 42610 | special order | |
21 | Sheet Metal Screw 3.5x16 DIN7981 | 44161 | special order | |
22 | Chassis | 42602 | special order | |
23 | Disc 8.4 DIN9021 | 41409 | special order | |
24 | Elastic Stop Mutter M8 | 41410 | 9741410 | |
25 | Power Cable 8m (H07RNF 3x4mm squared) | |||
26 | Hose Reel kpl. | 412596 | special order | |
27 | Chemical Suction Hose (fabric) with Filter | 42621 | special order | |
28 | Fabric Hose 0.4m | 42622 | special order | |
29 | Hose Clamp 9-9 | 44054 | special order | |
30 | Housing Detergent Valve | 44145 | special order | |
31 | O-Ring 5x1.5 (Viton) | 44150 | special order | |
32 | O-Ring 28.24x2.62 | 44149 | special order | |
33 | Regulating Piston Chemical Valve | 44147 | special order | |
34 | Stainless Steel Spring 1.8x15x15 | 44148 | special order | |
35 | Cover for Chemical Valve | 44146 | special order | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | Sheet Metal Screw 3.5x19 | 44162 | special order | |
38 | Rotary Handle Chemical Valve with Blind Cap | 44151 | special order |
39 | Lance with Flat jet Nozzle (Please specify nozzle size) | 12392 2-2504 | 9712392 | |
40 | Starlet Pistol With Extension | 123202 | 97123202 | |
41.1 | Turbo 045 quadro 700TST | 410723 | 97410723 | |
42 | High Pressure Hose 20m NW8 | 41083 | 9741083 | |
43 | O-Ring 13x2.6 | 13272 | 9713272 | |
44 | Connecting Hose | 42625 | 9742625 | |
45 | Disc 8mm for Wheel | 44246 | special order | |
46 | Threaded Pin M6x55 | 426172 | special order | |
47 | Check Valve for Chemical Suction Hose | 44240 | 9744240 | |
48 | Chemical Valve Complete Pos. 30-37 | 44052 | 9744052 |
Brake Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Base Plate | 42615 | special order | |
2 | Brake Pedal | 44022 | special order | |
3 | Brake Lever | 44023 | special order | |
4 | Brake Block | 44024 | 9744024 | |
5 | Pin 6x50 | 44035 | special order | |
6 | Starlock Cap 8mm | 44165 | special order | |
7 | Pin 6x40 | 440351 | special order | |
8 | Spacer Ring | 42626 | special order | |
9 | Hexagon Screw M6x16 | 50173 | special order | |
10 | Washer DIN125-6.3 | 50189 | special order |
Water Inlet Spare Parts
Pump Motor Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Stator 112 3.8kW 220V/60Hz | 405411 | special order | |
2 | A-Bearing Flange | 40530 | special order | |
3 | Rotor 112 (220V/60Hz) | 405311 | special order | |
4 | Fan Wheel for BG 112 | 40532 | 9740532 | |
5 | Fan Hood BG 112 | 40533 | 9740533 | |
7 | Flat Gasket | 43030 | special order | |
10 | Tapered Roller Bearings 31306 | 40103 | 9740103 | |
11 | Oil Seal 35x47x7 | 40080 | 9740080 | |
12 | Shaft Key 8x7x32 | 40104 | special order | |
13 | Ball Bearings 6206-2Z | 40538 | special order | |
14 | Hexagon Socket Screw M6x30 | 43037 | special order | |
17 | Square Nut M5 | 41416 | 9741416 | |
18 | Screw M5x14 | 40536 | 9740536 | |
19 | Screw M4x12 | 41489 | special order | |
20 | Clamp for Fan Wheel 112 | 40535 | special order | |
21 | Screw M4x12 | 41489 | special order | |
22 | Grounding Screw kpl. | 43038 | special order | |
23 | Switch 14.5 A amazon | 411116 | 97411116 | |
24 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
25 | Stand for Switch | 42608 | special order | |
26 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
28 | Plastic Screw 3.5x20 | 43415 | 9743415 | |
29 | Chandelier Clamp 5-pol | 433261 | 97433261 | |
30 | Protection C30 for 3x 230V/50/60Hz | 444002 | 97444002 | |
31 | Switch Box Lower Part | 42606 | special order | |
32 | Switch Box Cover | 42607 | special order | |
33 | Control Board Shut down Delay 230V/50Hz | 42504 | 9742504 | |
34 | Terminal Frame with Switch Seal | 43453 | 9743453 | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | PG 16 Screw Connection | 414191 | special order | |
38 | Seal for Switch Box Cover | 42525 | special order | |
39 | Lock Nut for PG9 Screw Connection | 410871 | special order | |
40 | Lock Nut for PG16 Screw Connection | 44119 | special order | |
41 | PG9 Screw Connection | 43034 | 9743034 | |
42 | Overcurrent Release 193-EEEB 5.4-27A | 444010 | 97444010 | |
43 | Capacitor 60uF | 41148 | 9741148 |

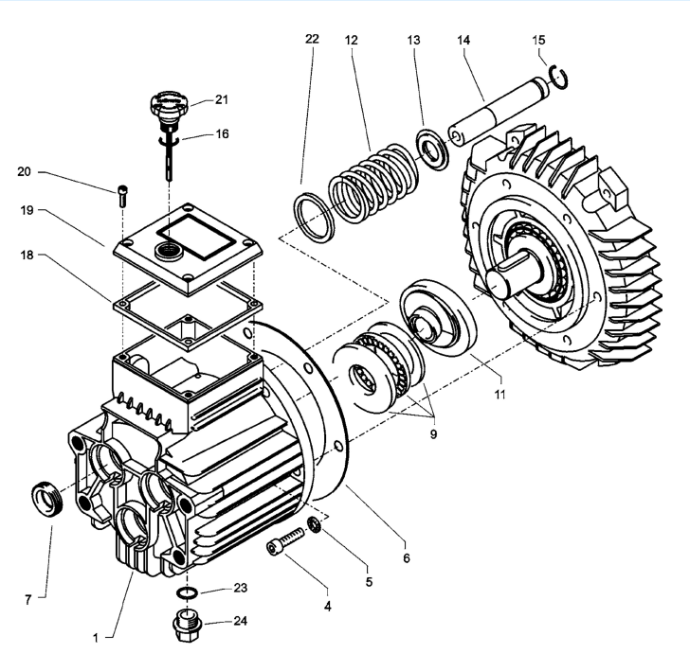

Transmission Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing | 40501 | 9740501 | |
4 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
5 | Lock Washer | 40054 | 9740054 | |
6 | Flat Gasket | 40511 | special order | |
7 | Oil Seal 20x30x7 | 400441 | 97400441 | |
8 | Wave Washer | 40043 | 9740043 | |
9 | Axial Roller Cage | 40040 | 9740040 | |
10 | Housing Disc | 40039 | 9740039 | |
11.1 | Swash Plate AQ 7.0 degrees | 40042 1-7.0 | 974002 1-7.0 | |
12 | Plunger Spring | 40506 | 9740506 | |
13 | Spring Pressure Disc | 40510 | 9740510 | |
14 | Plunger 20mm (long) | 40505 | 9740505 | |
15 | Snap Ring | 40048 | special order | |
16 | O-Ring 14x2 | 43445 | 9743445 | |
18 | Flat Gasket | 410193 | 97410193 | |
19 | Flat Lid for Oil Housing | 410231 | 97410231 | |
20 | Hexagon Socket Screw M5x12 | 410194 | 97410194 | |
21 | Oil Dipstick AQ | 40463 | 9740463 | |
22 | Support Disc for Plunger Spring | 40513 | 9740513 | |
23 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
24 | Oil Drain Plug R 3/8" | 42019 | 9742019 |

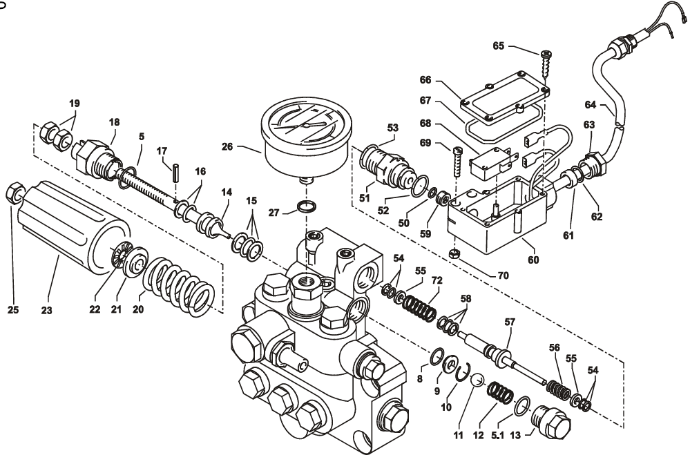

Unloader Valve and Pressure Switch Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Retaining Ring | 13147 | 9713147 | |
11 | Stainless Steel Ball | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Screw Plug | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Chip Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring red quadro 800 | 141251 | 97141251 | |
20.1 | Valve Spring black 1000 and 1200 | 14125 | 9714125 | |
21 | Spring Washer | 14126 | 9714126 | |
22 | Needle Bearing | 14146 | 9714126 | |
23 | Handwheel | 14147 | 9714147 | |
25 | Elastic Stop Mutter M8x1 | 14152 | 9714152 | |
26 | Manometer 0-400 Bar | 150394 | 97150394 | |
27 | Aluminium Sealing Ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
51 | Guide Part Control Lever | 150091 | special order | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disc | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Control Rod | 150102 | 97150102 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
59 | Plug M10x1 Drilled Through | 133851 | special order | |
60 | Housing Electrical Switch | 15007 | special order | |
61 | Rubber Sleeve PG9 | 15020 | special order | |
62 | Disc PG9 | 15021 | special order | |
63 | Screw Connection PG9 | 15022 | special order |
64 | PVC Cable 2x 1.0mm | 42505 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
66 | Cover Electrical Switch | 15008 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Microswitch | 44262 | special order | |
69 | Cylinder Head Screw M4x20 | 15025 | special order | |
70 | Hexagon Nut M4 | 15026 | special order | |
72 | Compression Spring 1x8.6x30 | 40520 | special order | |
Repair Kit Pressure Switch | 150093 | 97150093 | ||
Pressure Switch Compl. | 413005 | 97413005 |
Valve Housing Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing AQ with Integrated UL and Pressure Switch | 405035 | special order | |
2 | O-Ring 18x2 | 40016 | 9740016 | |
3 | Inlet/ Outlet-Valve | 42024 | 9742024 | |
4 | O-Ring 21x2 | 42025 | 9742025 | |
5 | Valve Plug | 42026 | 9742026 | |
5.1 | Valve Plug with R 1/4" | 420262 | 97420262 | |
6 | Retaining Ring | 40032 | 9740032 | |
7 | Hexagon Socket Screw M12x45 | 40504 | 9740504 | |
8 | Hose Nipple R3/8" x6 | 42634 | special order | |
9 | Hose Clamp 7-10 | 44054 | special order | |
10 | Chemical Suction Hose with Filter | 42621 | special order | |
11 | Angle 12Lx12L | 42630 | special order | |
13 | Fabric Cuff | 40023 | 9740023 | |
14 | Backing 20mm | 40025 | 9740025 | |
15 | O-Ring 31.42x2.62 | 40508 | 9740508 | |
16 | Leakage Ring 20x36x13.3 | 40509 | 9740509 | |
17 | Copper Sealing Ring 21x28x1.5 | 42039 | 9742039 | |
18 | Rubber Sleeve | 40512 | 9740512 | |
19 | Screw Plug R1/2" | 42032 | 9742032 | |
20 | Spacer Ring with Support | 40507 | 9740507 | |
21 | Aluminium Sealing Ring quadro TS | 13275 | 9713275 | |
22 | Sealing Plug for Quadro TS | 13181 | special order | |
23 | Pressure Ring 20mm | 40021 | 9740021 | |
24 | Intermediate Ring 20mm | 40516 | 9740516 | |
25 | O-Ring 11x1.5 | 12256 | 9712256 | |
26 | Stainless Steel Seat | 14118 | 9714118 | |
27 | Snap Ring | 13147 | 9713147 | |
28 | Output Part Pump R1/4"x12 | 44215 | special order | |
29 | Sealing Ring 17x22x1.5 (copper) | 40019 | 9740019 | |
30 | Plug 3/8" | 40018 | 9740018 | |
31 | Plug M10x1 | 43043 | special order | |
32 | Plug M8x1 | 13158 | 9713158 | |
33 | Output Part for Quadro 800, 1000, 1200 TST | 40522 | 9740522 | |
33.1 | Output Part M22x1.5 for Quadro 1000, 1200 TS | 405221 | 97405221 | |
34 | Stainless Steel Ball | 12122 | 9712122 | |
35 | Recoil Spring K" | 141201 | 97141201 | |
37 | O-Ring 18x2 | 43446 | special order | |
40 | Water Inlet R3/8" AG | 41016 | 9741016 | |
Repair kit for Sleeves | 400651 | 97400651 |
Repair Kit for Sleeves without Brass Parts | 40517 | 9740517 | ||
Repair Kit Valves | 400621 | 97400621 |

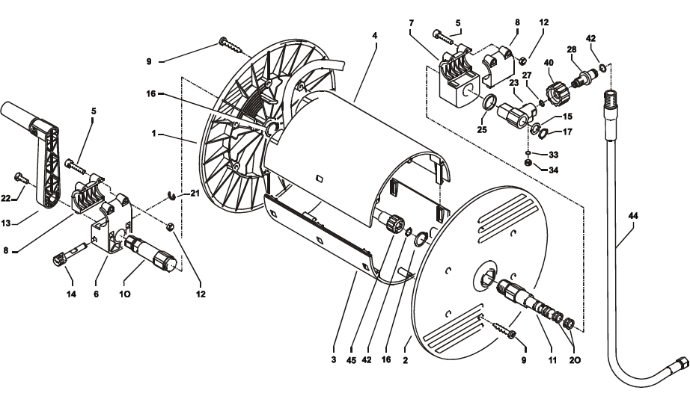

Hose Drum Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
