Kränzle 1122TST 1400 PSI 2.1 GPM Electric Pressure Washer | PN 98K1122TST
Discover Pressure Washer Perfection!
Order online with a RISK FREE, 30-Day Money Back Guarantee at participating dealers and this website.
Locate local dealers on Kranzle USA >>

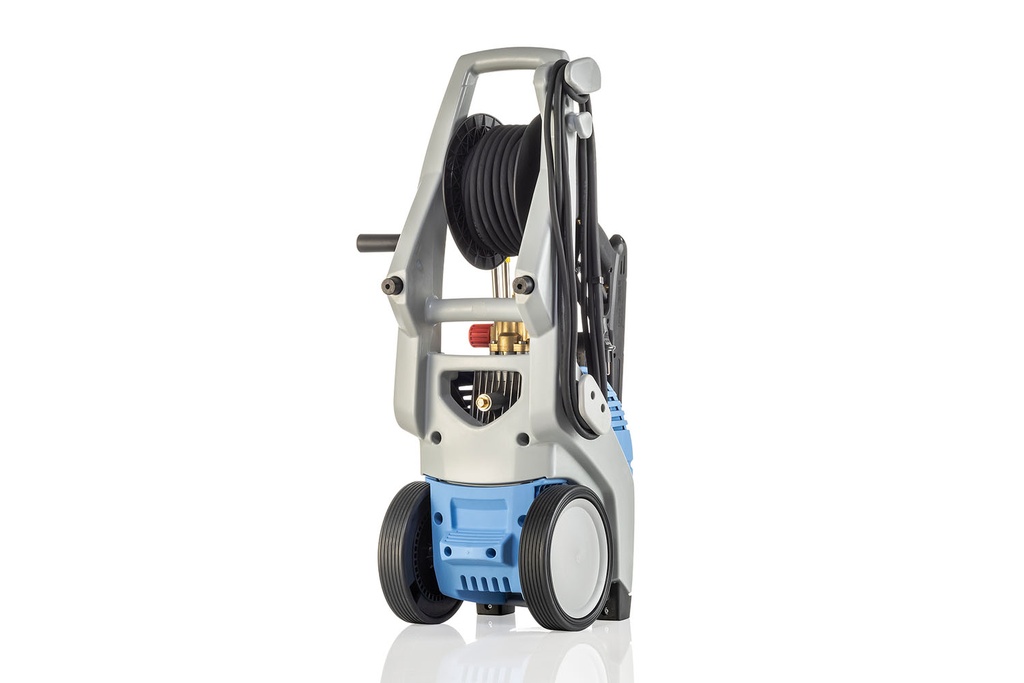

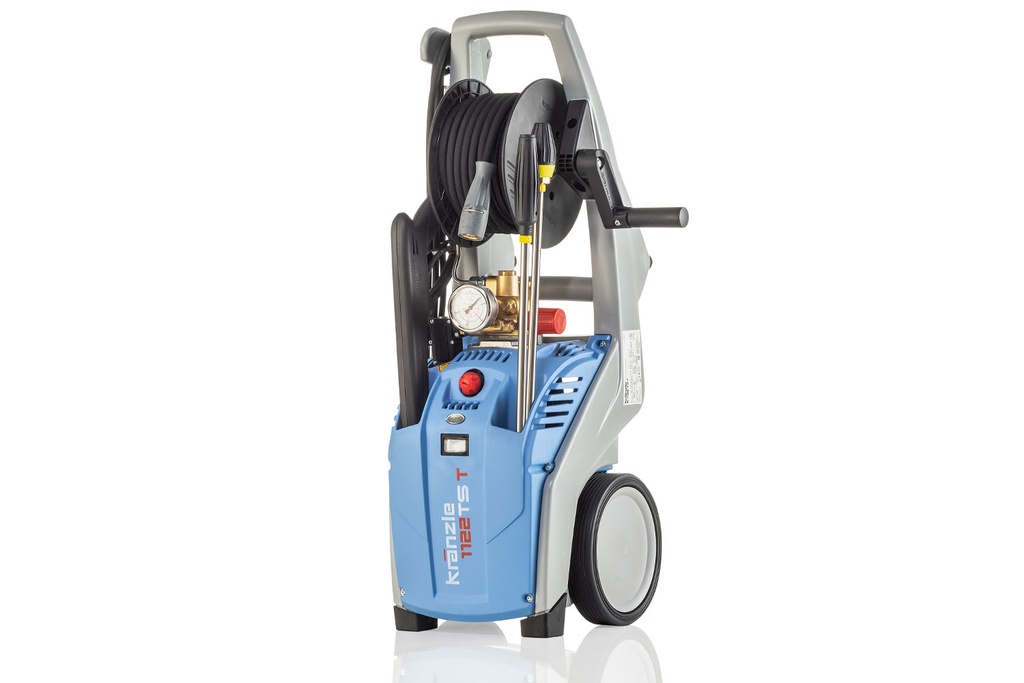

The K1122TST electric pressure washer produces 1400 PSI at 2.1 gallons per minute, making it the ideal choice for auto detailing, weekend warrior home use, and other light commercial cleaning jobs. Built to the high standards of Kranzle, this unit features an industrial-grade pump that is self-priming, has a freeze-proof head, can run dry, and has total stop. The built-in hose reel and folding handle make storage fast and easy. The K1122TST also features built-in easy-start and includes a ground fault interrupter (GFI) to keep you safe from electric shock.
With proper care and maintenance, Kranzle electric pressure washers are known to last 20 years!
When you want the best electric pressure washer on the market, buy a Kranzle.
Check reviews around the web >>
Specifications:
PSI: 1400 max adjustable
GPM: 2.1
Electrical Requirements: 110V, 15A, 60Hz
Weight: 80 lb
Dimensions: 37 inches length, 13 inches width, 17 inches height
Warranty: 1 year commercial
Additional Features:
- Kränzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Ground fault interrupter (GFI)
- Auto on / off at gun jet
- Built-in easy-start valve
Accessories Included:
- 50 ft wire braided hose on hose reel

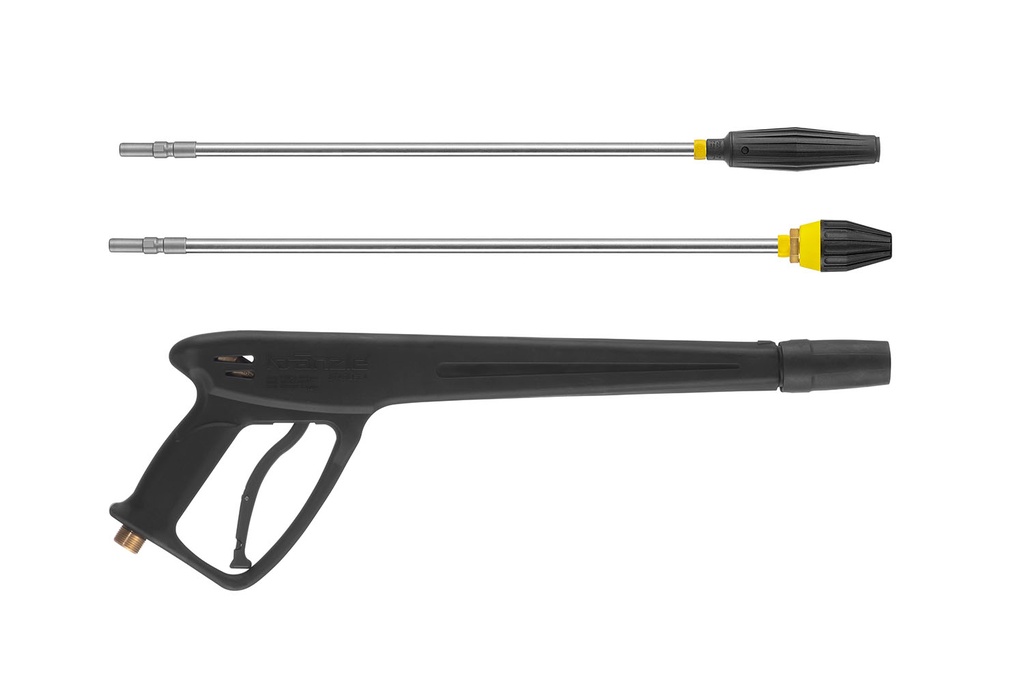

- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Vario-Jet (high-pressure wash/soap) nozzle | Video >>
- Dirt Killer Turbo Nozzle | Video >>
When choosing flat tip nozzles for the K1122TST be sure to use a 4.5 orifice for optimum performance. You may choose a larger orifice to reduce PSI and increase flow.
Please review the following videos, for best practices and care for your machine!
Extension cords: Yes or NO? Kranzle USA Pressure Washer | Official Answer
Should you use an extension cord with your Kranzle electric pressure washer?
Discover more15 or 20 AMP for the 1622TS, 1122TST and 1322TS Kranzle Pressure Washer | Official
Josh Lee, the Original Josh, explains whether we need a 15 AMP or 20 AMP circuit for the 1622TS, 1122TST and 1322 Kranzle electric pressure washers. The answer is 15, but it must be a DEDICATED circuit!
Storage Tips Kranzle USA Pressure Washer Perfection 1622 1122 1322
Josh Lee share a few tips about how to store your Kranzle pressure washer when not in house. In short, cool, dry place away from any corrosive chemicals such as pool bleach, etc. NOT FREEZING.
Watch on Youtube
# | Part Name | German Part # | Kranzle USA Part # | Buy |
2 | Chassis | 49000 | 9749000 | |
3 | Front Panel | 490072 | 97490072 | |
4 | Stiffening Plate | 49008 | special order | |
5 | Plastic Screw 6.0x30 | 43423 | special order | |
6 | Cable Trumpet | 49003 | special order | |
7 | Wheel | 44538 | 9744538 | |
8 | Hubcap | 452008 | special order | |
9 | Steel Disc 40x6x1.5 | 452167 | special order | |
10 | Plastic Countersunk Screw 5.0x20 | 454211 | special order | |
11 | Axel Holder | 49001 | 9749001 | |
12 | Screw M6x35 | 49015 | 9749015 | |
13 | Stand Left & Right | 48005 | special order | |
14 | Screw 5.0x30 | 43418 | 9743418 | |
15 | Cable Winder (cord holder) | 49002 | 9749002 | |
16 | Screw 5.0x20 | 43018 | 9743018 | |
17 | Rubber stop Damper 25x30 | 49010 | 9749010 | |
18 | Screw 5.0x14 | 43426 | special order | |
19 | Cable clamp | 43431 | special order | |
20 | Screw 3.5x16 | 44161 | special order | |
21 | Screw M8x12 | 40122 | special order | |
22 | Cage Nut M6 | 48011 | special order | |
28 | O-Ring 9.3x2.4 | 13273 | 9713272 | |
29 | High Pressure Hose 15m | 48015 | 9748015 | |
30 | Gun-Jet M2000 | 12480 | 9712480 | |
31 | Vario-Jet Nozzle | 41156 | 9741156 | |
32 | Dirt Killer Turbo Nozzle | 410725 | 97410725 | |
35 | Axel Complete with Wheels | 49050 | special order | |
36 | Complete Chassis | 49051 | special order |
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Oil Housing With Seal Cover (Transmission Housing) | 44501 | 9744501 | |
2 | Motor Housing with Stator 110-127V/60Hz | 230022 | special order | |
3 | Motor Shaft with Rotor 110V/60Hz | 43104 | special order | |
4 | Key 6x6x20 | 414831 | 97414831 | |
5 | Motor bearing B side Z bearing | 43025 | 9743025 | |
6 | Motor Mount A side Shoulder | 43026 | 9743026 | |
7 | Clamp for Fan Wheel | 445341 | special order | |
8 | Oil Seal 25x35x7 | 41024 | 9741024 | |
9 | Fan Wheel | 44534 | 9744534 | |
10 | Fan Cover | 41497 | 9741497 | |
11 | Flat Gasket | 44513 | special order | |
12 | Terminal, 3-Pole | 430312 | special order | |
13 | Switch Box | 49004 | 9749004 | |
14 | Switch with 12A Overcurrent Release | 43033 | 9743033 | |
15 | Clamp Frame with Switch Seal | 43453 | 9743453 | |
16 | Cable Gland PG 13,5 | |||
17 | Locknut PG 13,5 | 44253 | special order | |
18 | Capacitor 40uF | 43035 | special order | |
19 | Power Cord for 110V/ 60Hz | special order | ||
20 | Sheet Metal Screw 3.5x9.5 | 41088 | 9741088 | |
21 | Sheet Metal Screw 2.9x16 | 43036 | special order | |
22 | Hexagon Socket Screw M5x12 | 40134 | 9740134 | |
23 | Hexagon Socket Screw M5x30 | 42130 | special order | |
24 | Grounding Screw complete | 43038 | special order | |
25 | Cover for Control Box | 49005 | special order | |
26 | Gasket for Lid | 49012 | special order | |
27 | Plastic Screw 5.0x20 | 43018 | 9743018 | |
28 | Sheet Metal Screw 3.9x13 | 41078 | special order | |
40 | Motor complete with oil Housing and fan wheel without Electric for 110V/ 60Hz | 445301 | special order |
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Housing Plate | 43003 | 9743003 | |
2 | Oil Seal 14x24x7 | 41631 | 9741631 | |
3 | O-Ring 83x2 | 43039 | 9743039 | |
4 | Plunger Spring | 43040 | 9743040 | |
5 | Spring Pressure Washer | 43041 | 9743041 | |
6 | Plunger 14mm | 49021 | 9749021 | |
7 | Snap Ring 14mm | 41635 | 9741635 | |
8 | Swashplate 12.1 degree | 41028 | special order | |
10 | Wobble Plate Bearing set (3 pieces) | 43486 | 9743486 | |
12 | Hexagon Socket Screw M8x25 | 40053 | 9740053 | |
13 | Oil Drain Plug M18x 1.5 with magnet | 48020 | 9748020 | |
14 | O-Ring 14x2 | 43445 | 9743445 | |
16 | Oil Dipstick | 49009 | 9749009 | |
17 | Oil Cap Gasket | 445011 | 97445011 | |
18 | Oil Housing Cover | 445012 | special order | |
19 | Hexagon Socket Screw M5x12 | 410194 | 97410194 |
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
7 | O-Ring 12x2 | 150051 | 97150051 | |
8 | O-Ring 11x1.5 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Circlip | 12258 | special order | |
11 | Start-up Relief Valve | special order | ||
12 | Stainless steel spring | 49042 | 9749042 | |
13 | Locking Screw | special order | ||
14 | Control Piston 6mm for AZ with seals | 44532 | 9744532 | |
15 | Parbaks for Pistons 14mm | 141231 | 97141231 | |
16 | Parbaks for Spindle 6mm | 141232 | 97141232 | |
17 | Brass Disc | 43045 | 9743045 | |
18 | Piston Guide 6mm | 141301 | special order | |
19 | Nut M6 | 141271 | special order | |
20 | Black Spring for AZ pump | 43046 | 9743046 | |
21 | Spring Pressure Washer | 43047 | special oder | |
22 | Ball Bearing | 43048 | 9743048 | |
23 | Handwheel M6 for AZ pump | 43049 | 9743049 | |
24 | Nut M6 with SW 8 | 43010 | 9743010 | |
25 | Cap for Handwheel AZ Pump | 43050 | 9743050 | |
26 | Manometer (gauge) | 15039 | 9715039 | |
49 | Compression Spring 1x8.6x30 | 40520 | special order | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
51 | Guide Part of the Control Tappet | 150091 | special order | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disk | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Control Rod (plunger) | 150102 | 97150102 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
59 | Plug M10x1 (drilled through) | 133851 | 9713385 | |
60 | Electric Switch Housing | 15204 | special order | |
61 | Rubber Sleeve | 15202 | special order | |
62 | Hexagon Nut M4 | 12138 | special order | |
63 | Union Nut PG11 | 15203 | special order |
64 | Cable 2x1.5mm2 | 44552 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
66 | Electric Switch Cover | 15201 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Micro Switch | 15018 | 9715918 | |
69 | Cylinder Screw M4x22 | 15025 | special order | |
70 | Control Piston with complete Handwheel | 44532 | 9744532 | |
71 | Repair set for Pressure Switch Mechanism | 150093 | 97150093 | |
72 | Pressure switch complete without Mechanics | 49054 | 9749054 | |
73 | Valve Housing Complete for K1122 TST | |||
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing | 49020 | special order | |
2 | Valve Plug | 41011 | 9741011 | |
3 | Valve plug with R1/4 Female thread | 410111 | special order | |
4 | Valves (green) | 416121 | special order | |
5 | Sealing Plug M8x1 | 13158 | 9713158 | |
6 | Sealing Plug M10x1 | 43043 | special order | |
7 | O-Ring 12x2 | 15005 | 9715005 | |
8 | O-Ring 11x1.5 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Circlip | 12258 | special order | |
11.1 | Stainless Steel Ball 10.0mm | 12122 | 9712122 | |
12 | Aluminum Sealing Ring | 13275 | 9713275 | |
13 | Ermeto Screw Connection 1/4"x8 | 41042 | 9741042 | |
26 | Manometer | 15039 | 9715039 | |
27 | Support Ring | 41618 | special order | |
28 | Cuff 14x24x5/2.5 | 41613 | special order | |
28.1 | Fabric Cuff 14x24x5/2.5 | 416131 | special order | |
29 | Back Ring 14x24 | 41614 | 9741614 | |
30 | O-Ring 24x2 | 49024 | special lorder | |
31 | Leak Ring | 49022 | 9749022 | |
33 | Intermediate Ring with Support | 43055 | 9743055 | |
34 | Recoil Spring | 141201 | 97141201 | |
35.1 | Output Part (TST) | 40522 | 9740522 | |
42 | Hexagon Socket Screw M8x25-A2 | 40053 | 9740053 | |
43 | Hexagon Socket Screw M8x45-A2 | 41017 | 974107 | |
44 | Copper Sealing Ring | 14149 | 9714149 | |
45 | Suction Connection | 41016 | special order | |
46 | Water Filter | 410462 | special order | |
49 | Plug-In Coupling | 410472 | special order | |
52 | O-Ring 18x2 | 43446 | special order | |
60 | Valve Repair Kit | 41648 | 9741648 | |
61 | Repair Kit for Cuffs | 49053 | 9749053 |
# | Part Name | German Part # | Krannzle USA Part # | Buy Now |
1 | Side Shell | 48101 | special order | |
2 | Drum Part | 48102 | special order | |
3 | Anti-Kink Protection | 40162 | special order | |
4 | Plastic Screw 5.0x20 | 43018 | 9743018 | |
5 | Drive Shaft | 48104 | 9748104 | |
7 | Bearing Block on the Left | 43810 | special order | |
8 | Screw 6.0x30 | 43423 | special order | |
9 | Bearing Block on the Right | 43811 | special order | |
10 | Connecting Pipe | 49014 | 9749014 | |
11 | Water Input Part | 48103 | special order | |
12 | O-Ring 6x0.8 | 40177 | 9740177 | |
13 | Hand Crank | 48108 | 9748108 | |
14 | Screw M5x14 | 40536 | 9740536 | |
15 | Washer (Disc) 5.3 | 50152 | 9750152 | |
16 | Shaft Retaining Ring 22mm | 40117 | 9740117 | |
17 | O-Ring 9.3x2.4 | 13273 | 9713273 | |
18 | Sealing Kit | 134101 | special order | |
19 | Suction Spigot Hose Connection | 13236 | 9713236 | |
20 | Stainless Steel ball 5.5mm | 13238 | 9713238 | |
21 | Stainless Steel Spring | 13239 | 9713239 | |
22 | Input Injector | 40317 | 9740317 | |
23 | O-Ring 10x2 | 43068 | 9743068 | |
24 | O-Ring 6.68x1.78 | 40585 | special order | |
25 | High Pressure Hose 15m NW6 | 48015 | 9748015 | |
26 | Chemical Suction Hose with Filter | 15038 | special order | |
30 | Hose Drum Complete without HP hose | 48100 | 9748100 |

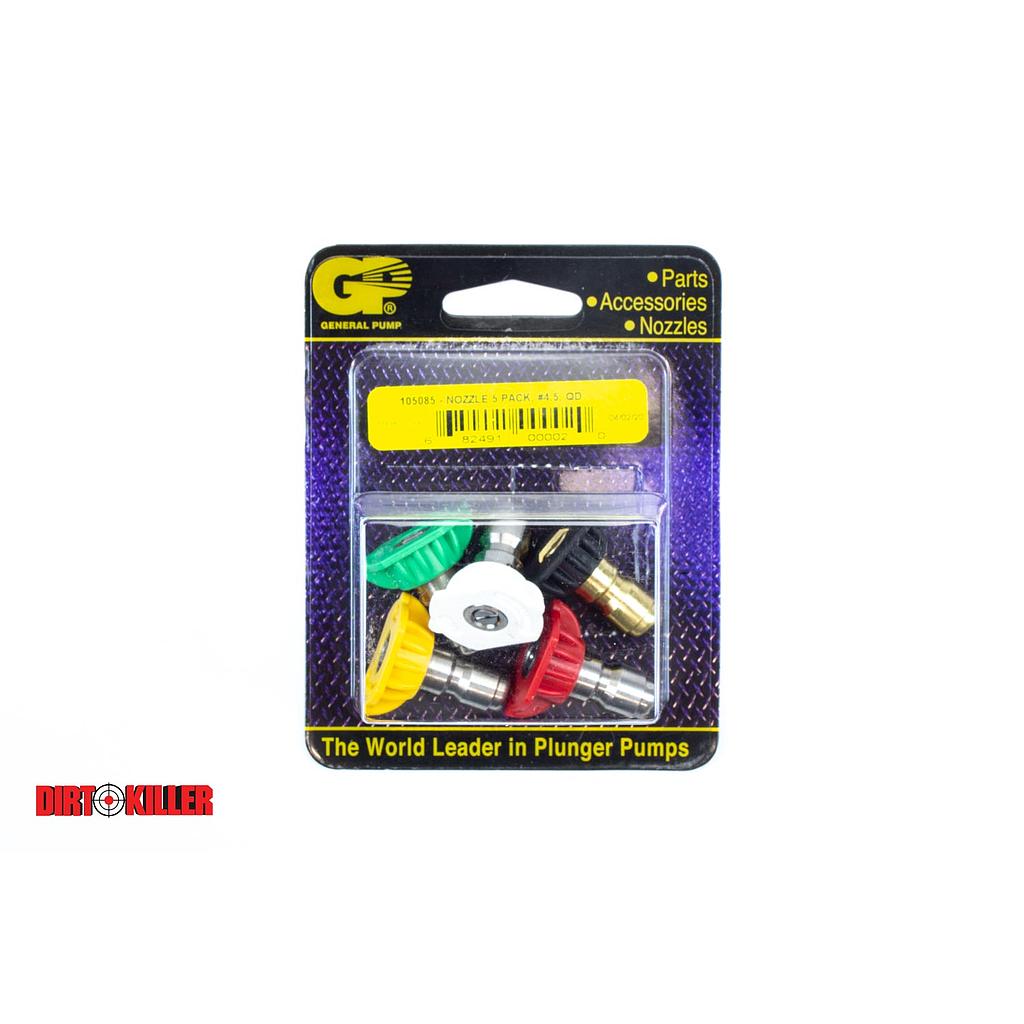

![[9800261] General Pump #4.5 Nozzle Pack (0 degree , 15 degree , 25 degree , 40 degree , & Soap)](/web/image/product.product/4804/image_1024/%5B9800261%5D%20%20General%20Pump%20%234.5%20Nozzle%20Pack%20%20%280%20degree%20%2C%2015%20degree%20%2C%2025%20degree%20%2C%2040%20degree%20%2C%20%26%20Soap%29?unique=4baf960)
