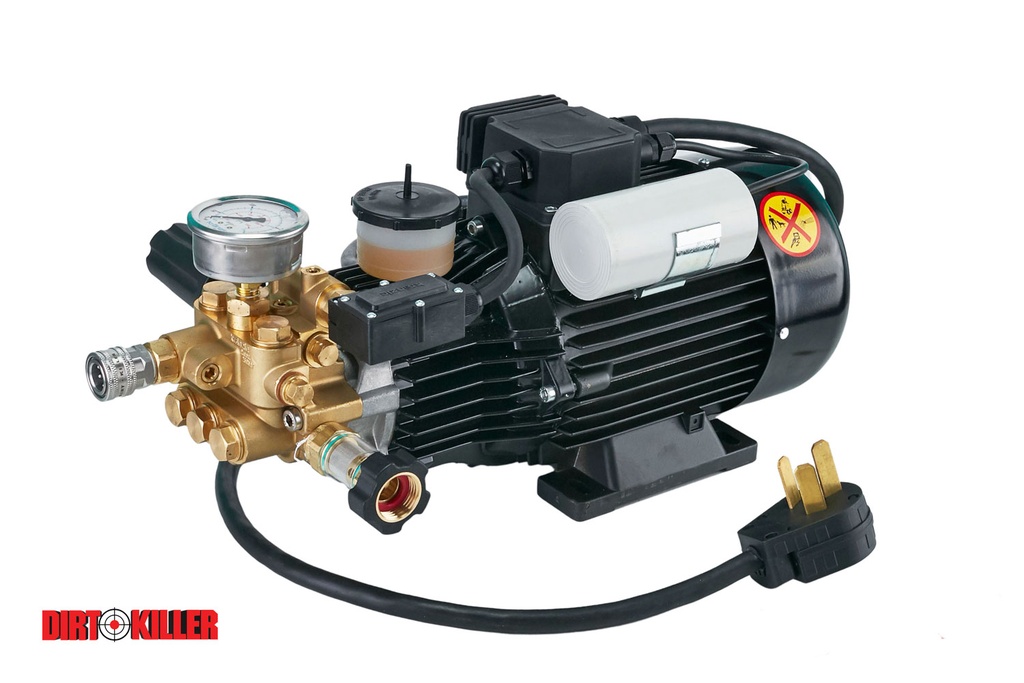

Kranz-LEE 230V 1Ph Pressure Washer | PN 9800768
Create your own wash bay solution with the Kränz-LEE. Combine your favorite cleaning tools with the Kränz-LEE pump and motor to outfit any garage with a top of the line cleaning system. Can be mounted to a shelf or onto a portable frame or cart. If you have an electrician install a charging station for your EV, make sure to have them put in another circuit for your Kränz-LEE pressure washer. Equipped with a NEMA 10-50P standard plug, it might even fit your dryer receptacle. With a maximum output of 1800psi and 2.9gpm it can even replace your small gas pressure washer. Please note, this model does not come with accessories. It should be operated with a #4.5 orifice nozzle.
230V 13A
1800psi 2.9gpm
Total stop installed

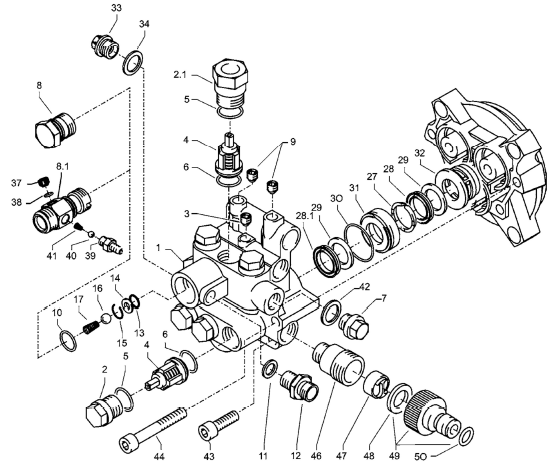

Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing | 421603 | special order | |
2 | Valve Plug | 41714 | 9741714 | |
2.1 | Valve Plug with R1/4" IG | 42102 | special order | |
3 | Sealing Plug 10x1 | 43043 | special order | |
4 | Valves (green) for APG-Pump | special order | ||
5 | O-Ring 16x2 | 13150 | 9713150 | |
6 | O-Ring 15x2 | 41716 | special order | |
7 | Sealing Plug R1/4" with collar | 42103 | 9742103 | |
8 | Output Part (TST) | 40522 | 9740522 | |
8.1 | Output Part (TS) | 405222 | 97405222 | |
9 | Sealing Plug | 13158 | 9713158 | |
10 | O-Ring 18x2 | 43446 | special order | |
11 | Aluminum-Sealing Ring | 13275 | 9713275 | |
12 | Screw Connection Ermeto R1/4"x8 | 41042 | 9741042 | |
13 | O-Ring 11x1.5 | 12256 | 9712256 | |
14 | Stainless Steel Seat 7mm | 14118 | 9714118 | |
15 | Snap Ring | 12258 | special order |
16 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
17 | Recoil Spring K" | 141201 | 97141201 | |
27 | Pressure Ring | 41018 | 9741018 | |
28 | Cuff 18x26x4/2 | 41013 | special order | |
28.1 | Fabric Cuff 18x26x4/2 | 410131 | special order | |
29 | Backring 18x26 | 41014 | 9741014 | |
30 | O-Ring 28.3x1.78 | 40026 | 9740026 | |
31 | Leakage Ring 18mm | 41066 | 9741066 | |
32 | intermediate Ring 18mm | 410152 | 97410152 | |
33 | 3/8" Stainless Steel Male Socket | 5100211 | buy now | |
37 | Locking Screw M10x1 | 13385 | 9713385 | |
38 | O-Ring 6x1.5 | 13386 | 9713386 | |
39 | Suction Hose Connection | 13236 | 9713236 | |
40 | Stainless Steel Ball 5.5mm | 13238 | 9713238 | |
41 | Stainless Steel Spring | 13239 | 9713239 | |
42 | Copper Ring 14x20x1.5 | 42104 | 9742104 | |
43 | Hexagon Screw M8x30 | 410361 | 97410361 | |
44 | Hexagon Screw Socket M8x55 | 410171 | 97410171 | |
46 | 3/8" Clear Water Inlet Strainer with no Bypass Port | 5500023 | ||
Repair Kit 18mm | 410491 | 97410491 | ||
Repair Kit Valves for APG-Pump | 417481 | 97417481 |
Unloader Valve and Pressure Switch Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Sear | 14118 | 9714118 | |
10 | Locking Ring | 13147 | 9713147 | |
11 | Stainless Steel Ball | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Locking Screw (sealing plug) | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Chip Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nit M8x1 | 14144 | 9714144 |
20 | Valve Spring (black) | 14125 | 9714125 | |
21 | Spring Pressure Washer | 14126 | 9714126 | |
22 | Needle Bearings | 14146 | 9714146 | |
23 | Handwheel on the Pump | 40457 | special order | |
24 | Cap Handwheel on the Pump | 40458 | special order | |
25 | Elastic Stop Nut M8x1 | 14152 | 9714152 | |
26 | Manometer 0-250 Bar | 15039 | 9715039 | |
27 | Aluminum Sealing Ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
57 | Blind Closure with Seals | 44551 | 9744551 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
70 | Control Piston Complete with Handwheel | 40490 | 9740490 | |
Kranzle Total Stop Kit- Parts Only | 97KIT-TS |

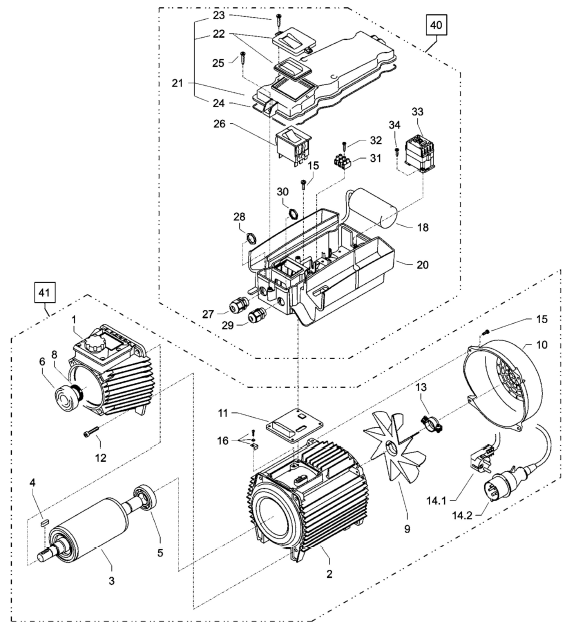

Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing for AP with Cover and Seal | 465302 | 97465302 | |
3 | Rotor with Silium Motor Shaft | 43523 | 9743523 | |
4 | Key 6x6x20 | 414831 | 97414831 | |
5 | Engine Bearing B Side 6205-2Z | 43317 | 9743317 | |
6 | Engine Bearing Shoulder Bearing 7304 | 41027 | 9741027 | |
7 | Tolerance Sleeve | 433301 | special order | |
8 | Oil Seal 25x35x7 | 41024 | 9741024 | |
9 | Air Wheel BG90 | 43319 | 9743319 | |
10 | Fan Hood BG90 | 43320 | special order | |
11 | Flat Gasket | 43030 | special order | |
12 | Hexagon Socket Screw Mx30 | 43037 | special order | |
13 | Clamp for Fan Wheel with Screws | 43454 | 9743454 | |
15 | Screw M4x12 | 41489 | special order | |
16 | Ground Screw kpl. | 43038 | special order | |
20 | Switch Box | 480011 | 97480011 | |
21 | Cover for Switch Box | 44512 | 9744512 | |
22 | Clamping Frame with Switch Seal | 43453 | 9743453 | |
23 | Sheet Metal Screw 3.5x9.5 | 41088 | 9741088 | |
24 | Gasket for Lid | 44522 | special order | |
25 | Screw 5.0x20 | 43018 | 9743018 | |
27 | Cable Gland PG 13.5 | 40539 | special order | |
28 | Counter Nut for PG 13.5 | 44253 | special order | |
29 | Cable Gland PG 11 | 41419 | 9741419 | |
30 | Counter Nut for PG11 | 44521 | 9744521 | |
31 | Luster Terminal 3Pin | 43326 | special order | |
32 | Sheet Metal Screw 2.9x16 | 43036 | special order | |
2 | Motor Housing with Stator Alternating Current | 48090 | special order | |
14 | Cable with Plug 20AMP for K2020 without Groundfall Interruptor | 43522 | special order | |
14.1 | Cable with Plug 20AMP for Kranzle 2020 with Groundfall Interruptor | 435221 | special order | |
18 | Capacitor 80uF | 43505 | 9743505 | |
19 | Capacitor Holder | 411161 | special order | |
20 | Screw 5.0x20 | 43018 | 9743018 | |
26 | Switch with Overcurrent Release | 43504 | 9743504 |
