Kränzle K2020PMUSR 2000 PSI 1.9 GPM Electric Wall Mount | PN 9800447
| Special Shipping Method: Freight |
This assembly must ship via freight

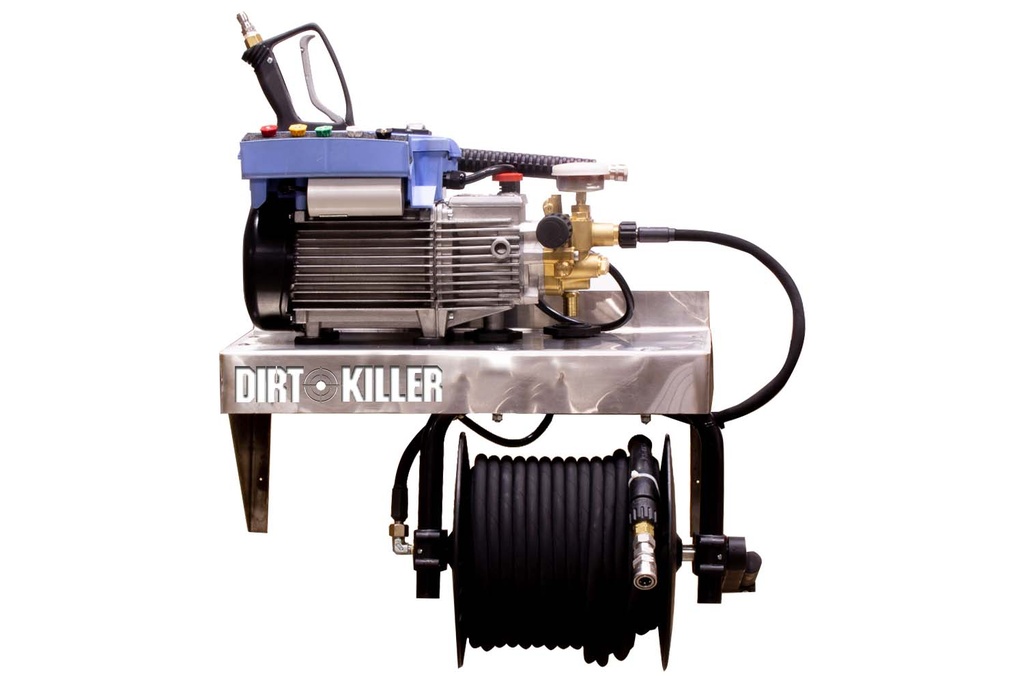

The Kränzle K2020PMUSR 2000 PSI 1.9 GPM
Specs
- 2020PMUSR Kranzle pump and motor
- 2000 PSI @ 1.9 GPM
- 110v / 20 AMP
- Wall mount stainless steel shelf *Heavy duty *Shelf is pre-drilled
- Kranzle Hose - 65 FT
- Kranzle reel
- Kranzle trigger assembly
- Industrial grade nozzles
Electric wall mount system is designed to be a plug and play electric wash station.
Complete with a 110V (volt) 20A (amp) Kranzle pressure washer, this PMU rests on a shelf that has an integrated 65 foot high pressure reel allowing for easy cleaning around any garage or wash bay.
Shelf mount comes with a 2 foot oil drain line for easy maintenance, as well as an easily accessible 3/4 inlet hose barb for hard plumbing your inlet water supply, removing common leak points.
Hose reel has a stainless steel high pressure swivel so your hose never gets tangled!
Stainless quick connects kit come on the hose and the lance.
Lance is a 12 inch insulated steel lance with a starlet trigger assembly
Sells with the following pressure washer accessories
- (1) 3.0 0* red tip
- (1) 3.0 15* yellow tip
- (1) 3.0 25* green tip
- (1) 3.0 40* white tip
- (1) 40 65* black tip
- (1) Kranzle Foam Cannon
2020 PMUSR Wall Mounted Pressure Washer Overview
Brief overview to the 2020PMUSR
Quick Install for Local Customer
Cattail Creek Golf Course
How does Cattail Greek Golf Course keep their carts and equipment so clean? The Dirt Killer Kranzle 2020 PMUSR wall mounted pressure washer of course. They also use Dirt Killer fleet cleaning soaps and detergents!
PMU Motor Assembly

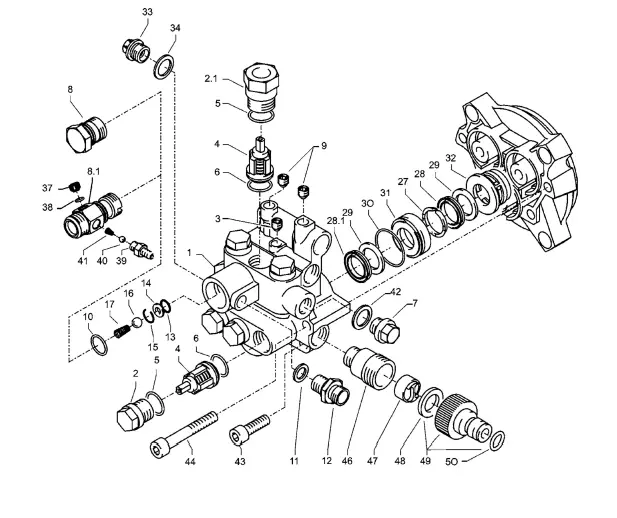

Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing | 421603 | special order | |
2 | Valve Plug | 41714 | 9741714 | |
2.1 | Valve Plug with R1/4" IG | 42102 | special order | |
3 | Sealing Plug M10x1 | 43043 | special order | |
4 | Valves (green) for APG-Pump | special order | ||
5 | O-Ring 16x2 | 13150 | 9713150 | |
6 | O-Ring 15x2 | 41716 | special order | |
7 | Sealing Plug R1/4" with collar | 42103 | 9742103 | |
8 | Output Part (TST) | 40522 | 9740522 | |
8.1 | Output Part (TS) | 405222 | 97405222 | |
9 | Sealing Plug M8x1 | 13158 | 9713158 | |
10 | O-Ring 18x2 | 43446 | special order | |
11 | Aluminum- Sealing Ring | 13275 | 9713275 | |
12 | Screw Connection Ermeto R1/4" x8 | 41042 | 9741042 | |
13 | O-Ring 11x1.5 | 12256 | 9712256 | |
14 | Stainless Steel Seat 7mm | 14118 | 9714118 | |
| 15 | Snap Ring | 12258 | special order | |
16 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
17 | Recoil Spring K" | 141201 | 97141201 | |
27 | Pressure Ring | 41018 | 9741018 | |
28 | cuff 18x26x4/2 | 41013 | special order | |
28.1 | Fabric Cuff 18x26x4/2 | 410131 | special order | |
29 | Backring 18x26 | 41014 | 9741014 | |
30 | O-ring 28.3x1.78 | 40026 | 9740026 | |
31 | Leakage Ring 18mm | 41066 | 9741066 | |
32 | Intermediate Ring 18mm | 410152 | 97410152 | |
33 | Sealing Plug R3/8" | 14113 | 9714113 | |
34 | Copper Ring 17x22x1.5 | 40019 | 9740019 | |
37 | Locking ScrewM10x1 | 13385 | 9713385 | |
38 | O-Ring 6x1.5 | 13386 | 9713386 | |
39 | Suction Hose Connection | 13236 | 9713236 | |
40 | ||||
