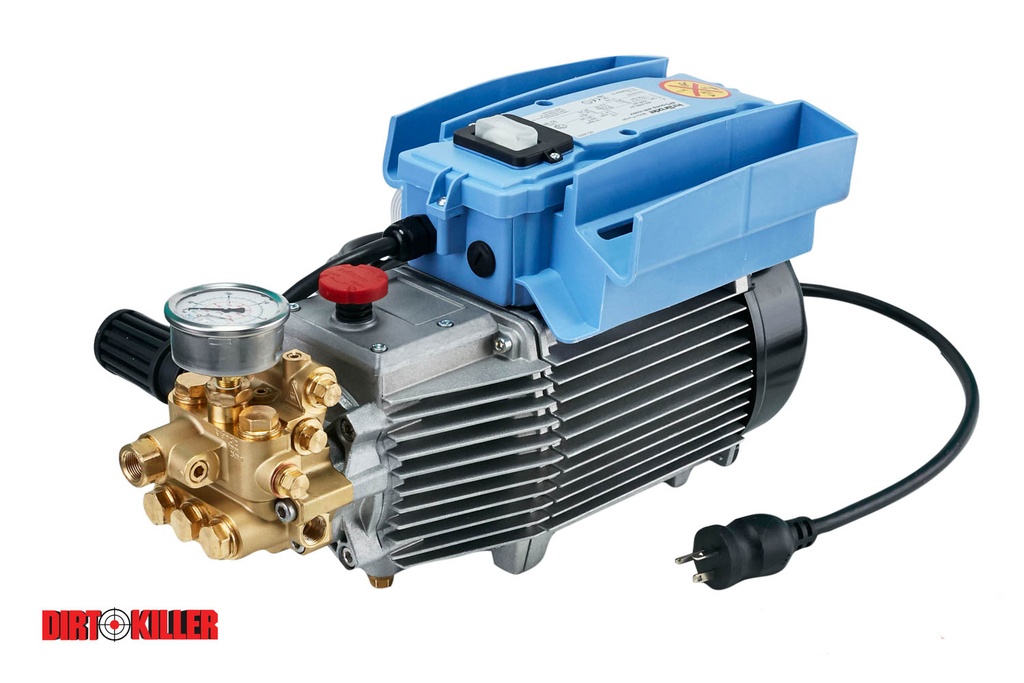

Kränzle K2100 PMU 110v with switch, plug & cord | PN 0200496
K2100 PMU - Pressure Washer Pump and Motor
The K2100 PMU is a base model unit to build your professional cleaning system. Kränzle’s copper wound motor coil rotating at 1800 rpm will outlast the competitions’ aluminum wound 3600 rpm motors. Lower speed motor also means lower speed pump. With the same advantages as a gear drive or belt drive system, lower rpm means the pump can pull off tanks easier. It also extends motor service life between water seal and valve changes. The forged brass head and ceramic coated stainless-steel plungers help this pump lead the industry in freeze resistance.
With a 2hp electric motor, the K2100 PMU runs off of 20 amps of 120 volts. The maximum output is 2000 psi at 1.9 gpm. Great for small to medium sized cleaning tasks in both stationary and mobile applications. Easily operate this unit with up to 150 feet of high-pressure hose without overloading the machine. Pair the K2100 PMU with a high-pressure hose reel and our high-quality cleaning supplies to build your Dirt Killer cleaning system today.
Specs
- 1.9GPM
- 2000 PSI
- 1800 RPM
- 120 volt
- 20 amps
- 2hp electric motor
PMU
Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing | 421603 | special order | |
2 | Valve Plug | 41714 | 9741714 | |
2.1 | Valve Plug with R1/4" IG | 42102 | special order | |
3 | Plug Tightly M10x1 | 43043 | special order | |
4 | Green Valves for APG Pump | 417151 | special order | |
5 | O-Ring 16x2 | 13150 | 9713150 | |
6 | O-Ring 15x2 | 41716 | special order | |
7 | Sealing Plug with Collar R1/4" | 42103 | 9742103 | |
8 | Output Part TST | 40522 | 9740522 | |
8.1 | Output Part (TS) | 405222 | 97505222 | |
9 | Sealing Plug M8x1 | 13158 | 9713158 | |
10 | O-Ring 18x2 | 43446 | special order | |
11 | Aluminum Sealing Ring | 13275 | 9713275 | |
12 | Ermeto Screw Connection R1/4" x8 | 41042 | 9741042 | |
13 | O-Ring 11x1.5 | 12256 | 9712256 | |
14 | Stainless Steel Seat 7mm | 14118 | 9714118 | |
15 | Snap Ring | 12258 | special order | |
16 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
17 | Rebound Spring | 141201 | 97141201 | |
27 | Pressure Ring | 41018 | 9741018 | |
28 | Cuff 18x26x4/2 | 41013 | special order | |
28.1 | Fabric Cuff 18x26x4/2 | 410131 | special order | |
29 | Back Ring 18x26 | 41014 | 9741014 | |
30 | O-Ring 28.3x1.78 | 40026 | 9740026 | |
31 | Leakage Ring 18mm | 41066 | 9741066 | |
32 | Intermediate Ring 18mm | 410152 | 97410152 | |
33 | Sealing Plug R3/8" | 14113 | 9714113 | |
34 | Copper Ring 17x22x1.5 | 40019 | 9740019 | |
37 | Locking Screw M10x1 | 13385 | 9713385 | |
38 | O-Ring 6x1.5 | 13386 | 9713386 | |
39 | Suction Spigot Hose Connection | 13236 | 9713236 | |
40 | Stainless Steel Ball 5.5mm | 13238 | 9713238 | |
41 | Stainless Steel Spring | 13239 | 9713239 |
42 | Copper Ring 14x20x1.5 | 42104 | 9742104 | |
43 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
44 | Hexagon Socket Screw M8x55 | 410171 | 97410171 | |
46 | Suction Connection | 41016 | 9741016 | |
47 | Water Filter | 410462 | special order | |
48 | Rubber Sealing Ring | 410471 | 97410471 | |
49 | Plug-In Coupling | 410474 | special order | |
50 | O-Ring | 410473 | special order | |
Repair Kit Cuffs 18mm | 410491 | 97410491 | ||
Repair Kit Valves for APG Pump | 417481 | 97417481 |

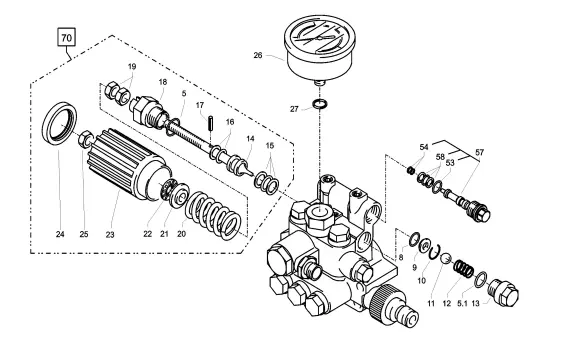

Unloader Valve and Pressure Switch Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
| 5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Circlip | 13147 | 9713147 | |
11 | Stainless Steel Ball | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Locking Screw | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Tension Roll Pin (Spansift) | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring (black) | 14125 | 9714125 | |
21 | Spring Pressure Washer | 14126 | 9714126 | |
22 | Needle Bearings | 14146 | 9714146 | |
23 | Hand wheel on the Pump | 40457 | special order | |
24 | Cap Hand wheel on the Pump | 40458 | special order | |
25 | Elastic Stop Nut M8x1 | 14152 | 9714152 | |
26 | Manometer 0-250 Bar | 15039 | 9715039 | |
27 | Aluminium Seal Ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
57 | Bling Closure With Seals | 44551 | 9744551 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
70 | Control Piston Complete with Hand Wheel | 40490 | 9740490 |

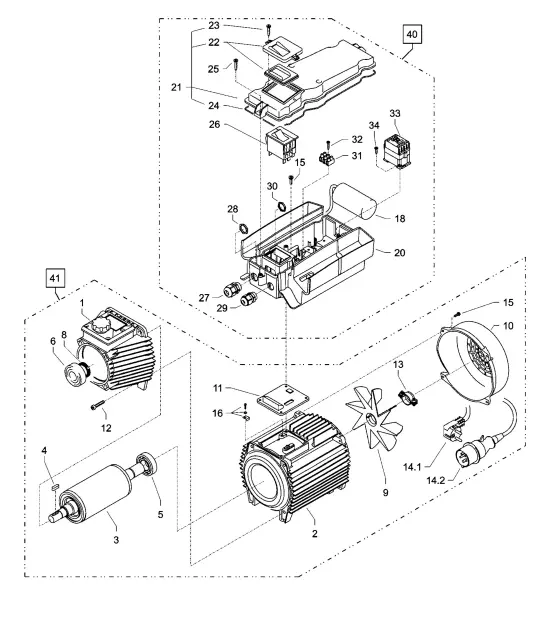

Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
| 1 | Transmission Housing Complete With Cover and Seal | 465302 | 97465302 | |
3 | Rotor | 43523 | 9743523 | |
4 | Key 6x6x20 | 414831 | 97414831 | |
5 | Engine Bearing b Side 6205-2Z | 43317 | 9743317 | |
6 | Engine Bearing Shoulder bearing 7304 | 41027 | 9741027 | |
7 | Tolerance Sleeve | 433301 | special order | |
8 | Oil Seal 25x35x7 | 41024 | 9741024 | |
9 | Air Wheel BG90 | 43319 | 9743319 | |
10 | Fan Hood BG90 | 43320 | special order | |
11 | Flat Gasket | 43030 | special order | |
12 | Hexagon Socket Screw M6X30 | 43037 | special order | |
13 | Clamp for fan Wheel with Screws | 43454 | 9743454 | |
15 | Screw M4x12 | 41489 | special order | |
16 | Ground Screw Cpl. | 43038 | special order | |
20 | Switch Box | 480011 | 97480011 | |
21 | Cover for switch Seal | 44512 | 9744512 | |
22 | Clamping Frame with Switch Seal | 43453 | 9743453 | |
23 | Sheet Metal Heist 3.5x9.5 | 41088 | 9741088 | |
24 | Gasket for Lid | 44522 | special order | |
25 | Screw 5.0x20 | 43018 | 9743018 | |
27 | Cable Gland PG13.5 | 40539 | special order | |
28 | Counternut for PG 13.5 | 44253 | special order | |
29 | Cable Gland PG11 | 41419 | 9741419 | |
30 | Counternut for PG11 | 44521 | 9744521 | |
31 | Luster Terminal 3Pin | 43326 | special order | |
32 | Sheet Metal Screw 2.9x16 | 43036 | special order | |
2 | ||||
14 | ||||
14.1 | ||||
14.2 | ||||
14.3 | ||||
18 | ||||
19 | ||||
20 | ||||
26 |
