Kränzle KWS700TS 2400 PSI 3.3 GPM Electric Pressure Washer | PN 98KWS700TS
| Special Shipping Method: Freight |
- Auto on / off gun-jet control with Total Stop
- 33 ft wire braided hose on hose reel

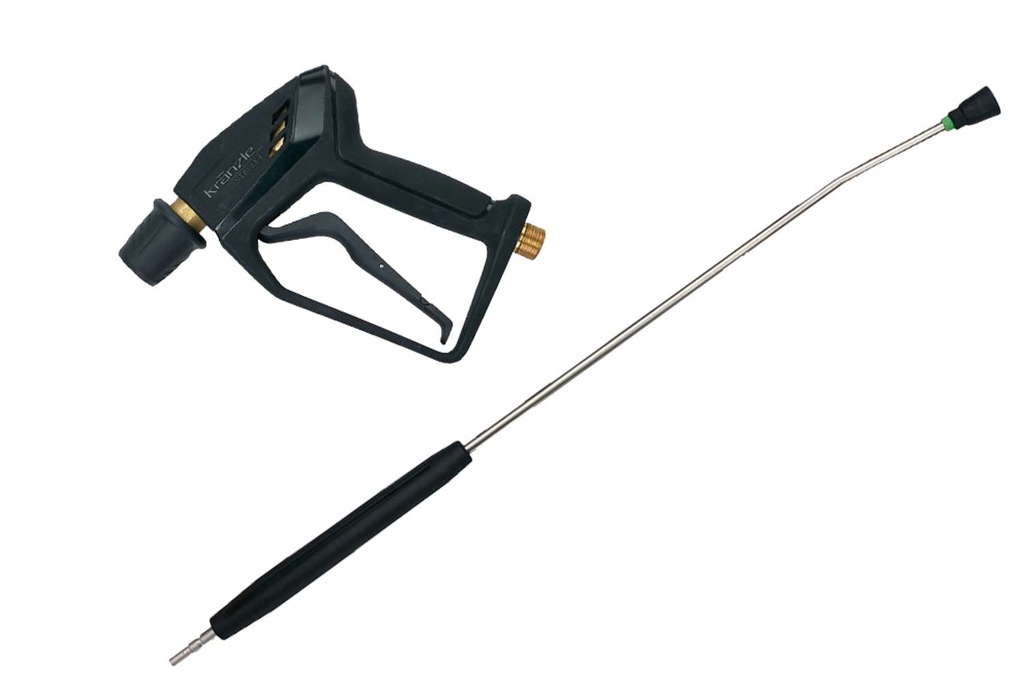

- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Lance with fan nozzle for high-pressure washing

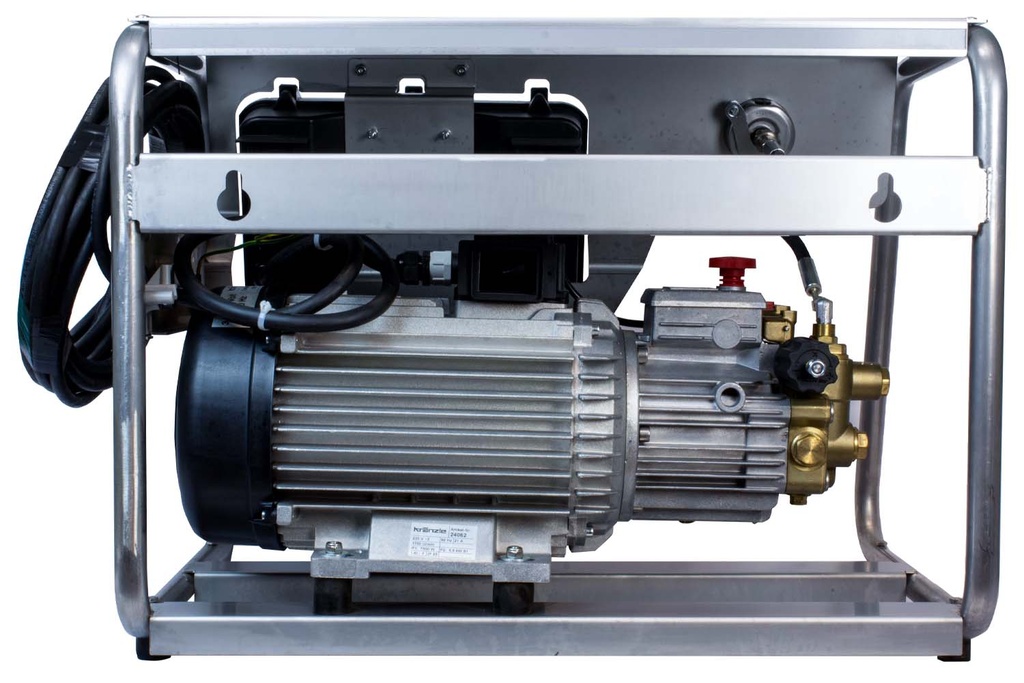

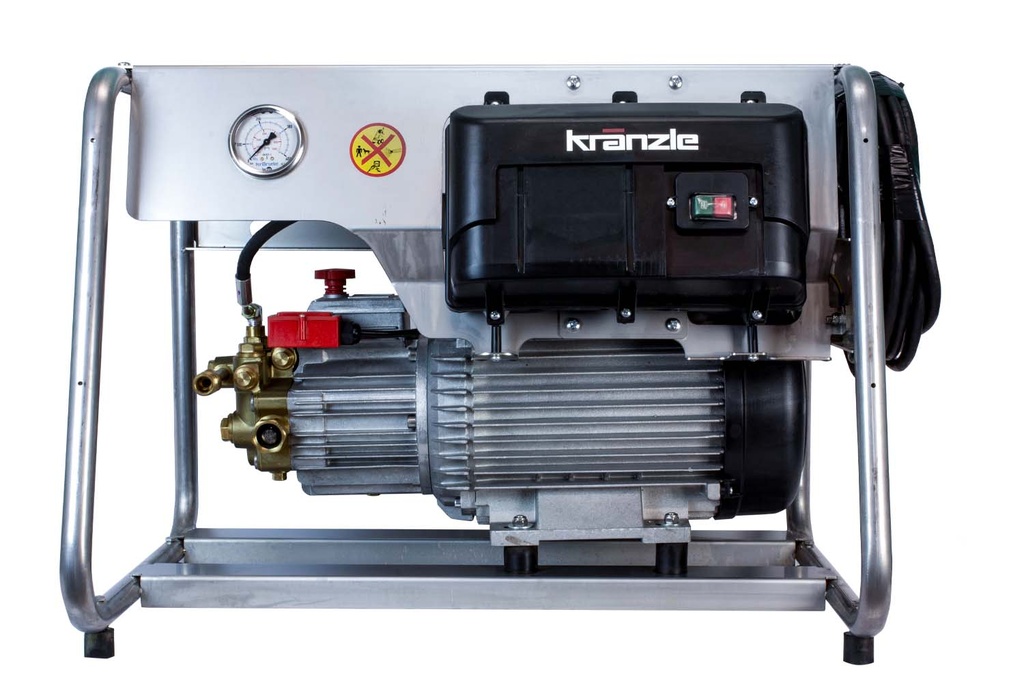

Wall mountable commercial grade electric pressure washer
The KWS700TS cold water stationary electric pressure washer produces 2400 PSI and 3.3 gallons per minute. It is ideal for perfect for industrial situations where you need consistent, reliable pressure washing such as in fleet washing, agriculture, 3D printing, etc.

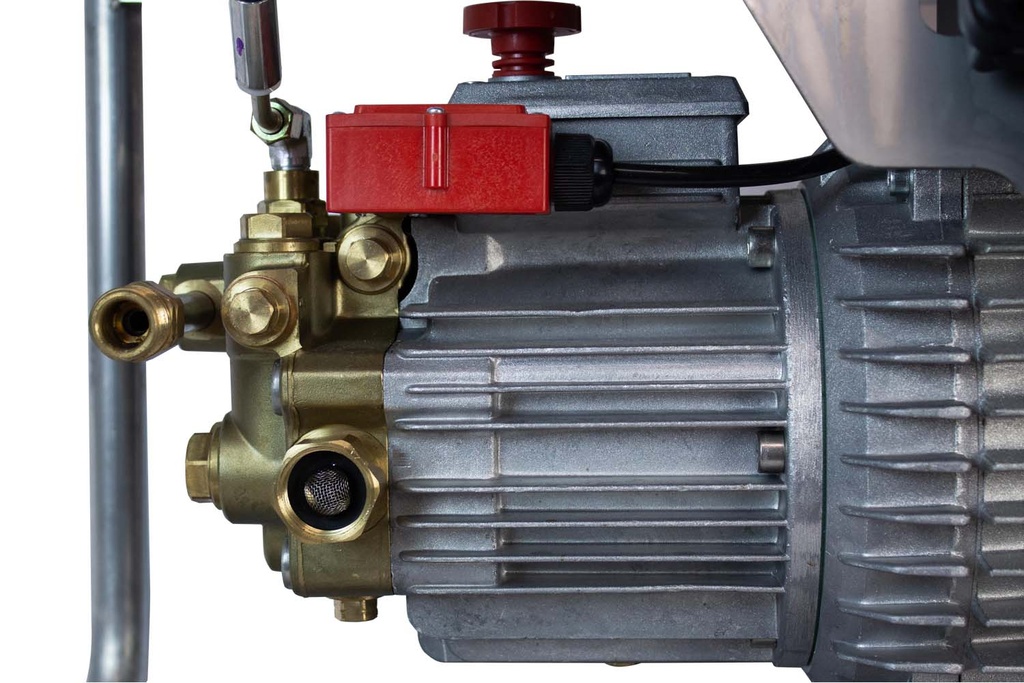

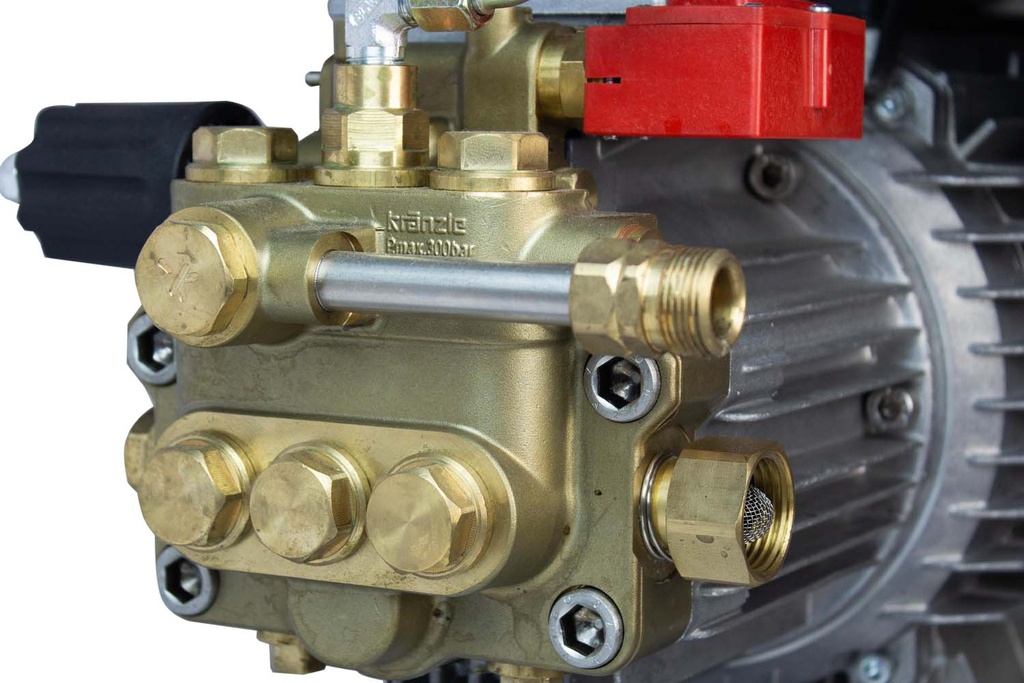

Its industrial-grade Kranzle AQ pump is built to the highest standards and is able to run dry or on bypass for hours. This unit also has the Total Stop feature which helps extend the life of the machine by turning it off whenever you stop spraying.
Specifications:
PSI: 2400 max adjustable
GPM: 3.3
Electrical Requirements: 220V, 23A, 60Hz, single-phase
Weight: 187 lb
Dimensions: 14 inches length, 31 inches width, 28 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:

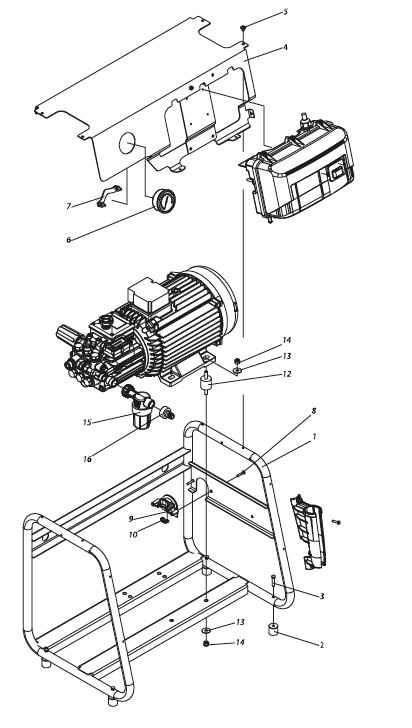

Complete Assembly Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Supporting Frame | 483000 | special order | |
2 | Rubber Metal Stop Buffer 25x25 | 483003 | special order | |
3 | Hexagon Screw M6x30 | 483004 | special order | |
4 | Cover Plate WS 100 TS Complete | 4830011 | special order | |
5 | Screw M6x10 | 44177 | special order | |

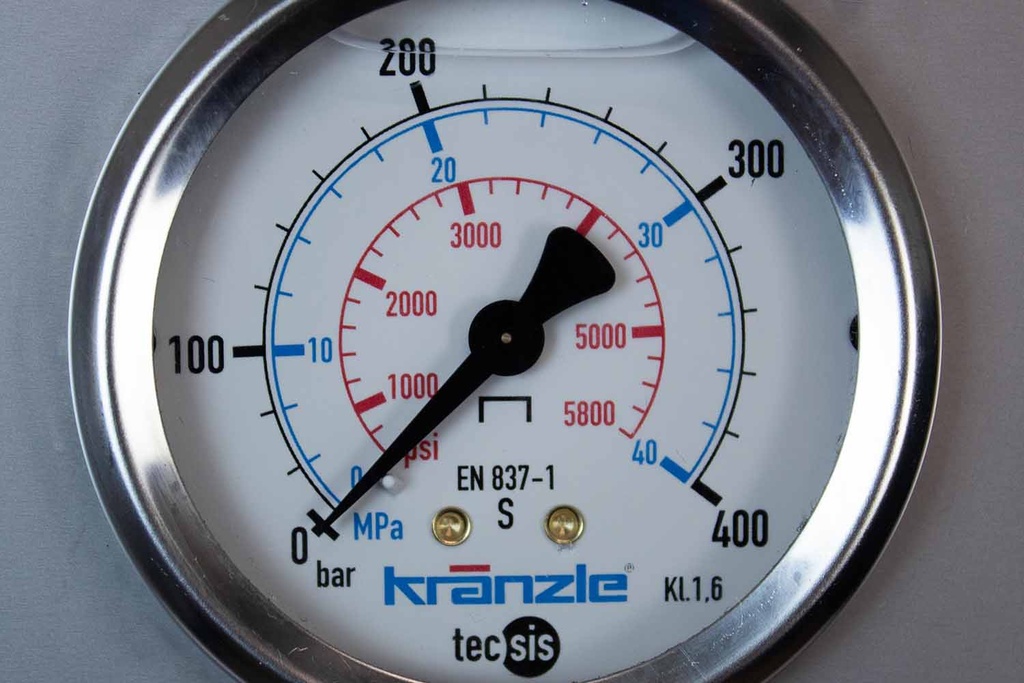

6 | Manometer (pressure gauge) 0-400 bar | 150394 | 97150394 | |
7 | Clamp for Manometer | 44049 | 9744049 | |
8 | Screw 5.0x25 | 414142 | special order | |
9 | Cable feed-through WS 1200 TS | 42513 | special order | |
9.1 | Cable feed-through WS 700TS | 425131 | special order | |
10 | Strain Relief | 43431 | special order | |
11 | Plastic Screw 3.5x14 | 44525 | special order | |
12 | Rubber Vibration Damper 30x30 | 44227 | special order | |
13 | Washer 8.4 DIN 9021 | 41409 | special order | |
14 | Elastic Stop Mutter M8 | 414101 | special order | |
15 | Water Filter | 13310 | 9713310 | |
16 | Plug In Coupling | 410474 | special order |

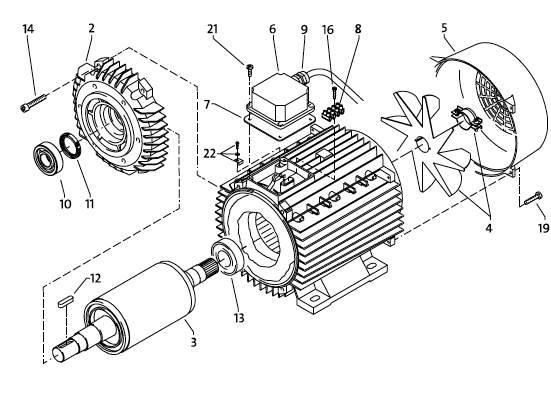

Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Stator 112 3.8kW 220V/60Hz | 405411 | special order | |
2 | A Long Flange | 40530 | special order | |
3 | Rotor 112 (220V/60Hz) | 405316 | special order | |
4 | Fan Wheel BG112 | 405321 | special order | |
5 | Fan Hood BG112 | 40533 | 9740533 | |
6 | Terminal Box | 40534 | special order | |
7 | Flat Gasket | 43030 | special order | |
8 | Chandelier 10mm 4-terminal block | 433262 | special order | |
9 | PG Screw Connection PG 13.5 | 40539 | special order | |
10 | Tapered Roller Bearings 31306 | 40103 | 9740103 | |
11 | Oil Seal 35x47x7 | 40080 | 9740080 | |
12 | Keyway 8x7x28 | 40459 | special order | |
13 | Ball Bearings 6206-2Z | 40538 | special order | |
14 | Hexagon Socket Screw M6x30 | 43037 | special order | |
16 | Sheet Metal Screw 3.5x19 | 44162 | special order | |
17 | V-Seal | 40545 | special order | |
19 | Screw M4x16 | 42542 | special order | |
21 | Screw M4x16 | 42542 | special order | |
22 | Grounding Screw kpl. | 43038 | special order | |
50 | Motor Complete Without Switch 230V/60Hz | 24065 | 9724065 |

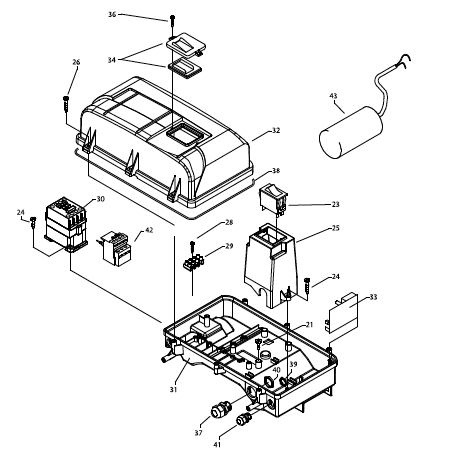

Motor Spare Parts, Part2
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
21 | Screw M4x12 | 41489 | special order | |
22 | Grounding Screw Complete | 43038 | special order | |
23 | Push Button Switch | 42644 | 9742644 | |
24 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
25 | Stand for Switch | 42608 | special order | |
26 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
28 | Plastic Screw 3.5x20 | 43415 | 9743415 | |
29 | Chandelier Clamp | 44248 | special order | |
30 | Protection c30 230V 3/50/60Hz | 444002 | 97444002 | |

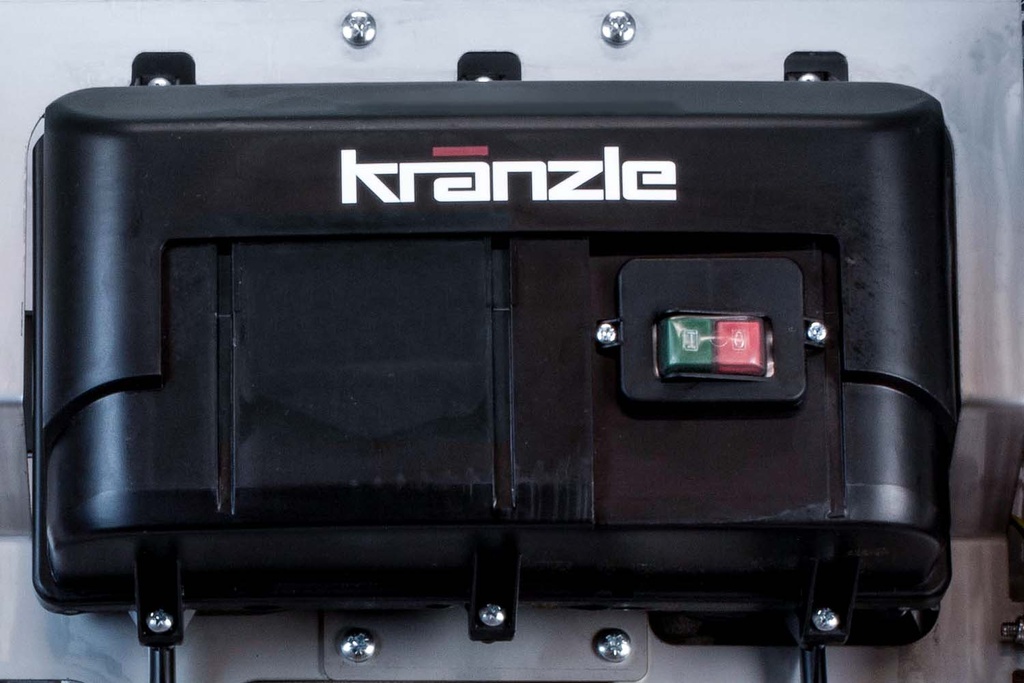

31 | Switch Box Lower Part | 426061 | special order | |
32 | Switch Box Cover | 426072 | special order | |
33 | Control Board Shut Down Delay 230V/50Hz | 42564 | 9742564 | |
34 | Terminal Frame with Switch Seal | 43453 | 9743453 | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | PG16 Screw Connection | 414191 | special order | |
38 | Seal for Switch Box Cover | 42525 | special order | |
39 | Lock Nut for PG9 Screw Connection | 410871 | special order | |
40 | Lock Nut for PG16 Screw Connection | 44119 | special order | |
41 | PG9 Screw Connection | 43034 | 9743034 | |
42 | Overcurrent Release 193 EEED 5.4 27A | 444011 | special order | |
43 | Capacitor 70uF | 43322 | 9743322 |

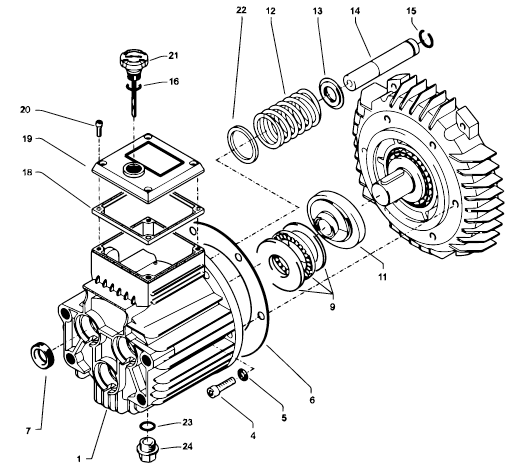

Transmission Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing | 40501 | 9740501 | |
4 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
5 | Lock Washer | 40054 | 9740054 | |
6 | Flat Gasket | 40035 | 9740035 | |
7 | Oil Seal 20x30x7 | 400441 | 97400441 | |
9 | Axial Cylindrical Roller Bearings AQ-Pump | 40524 | 9740524 | |
11 | Swashplate AQ 7.0 | 40523-7.0 | 9740523-7.0 | |
12 | Plunger Spring | 40506 | 9740506 | |
13 | Spring Pressure Disc | 40510 | 9740510 | |
14 | Plunger 20mm (long) | 40505 | 9740505 | |
15 | Snap Ring | 40048 | special order | |
16 | O-Ring 14x2 | 43445 | 9743445 | |
18 | Flat Gasket | 410193 | 97410193 | |
19 | Flat Lid for Oil Housing | 410231 | 97410231 | |
20 | Hexagon Socket ScrewM5x12 | 410194 | 97410194 | |

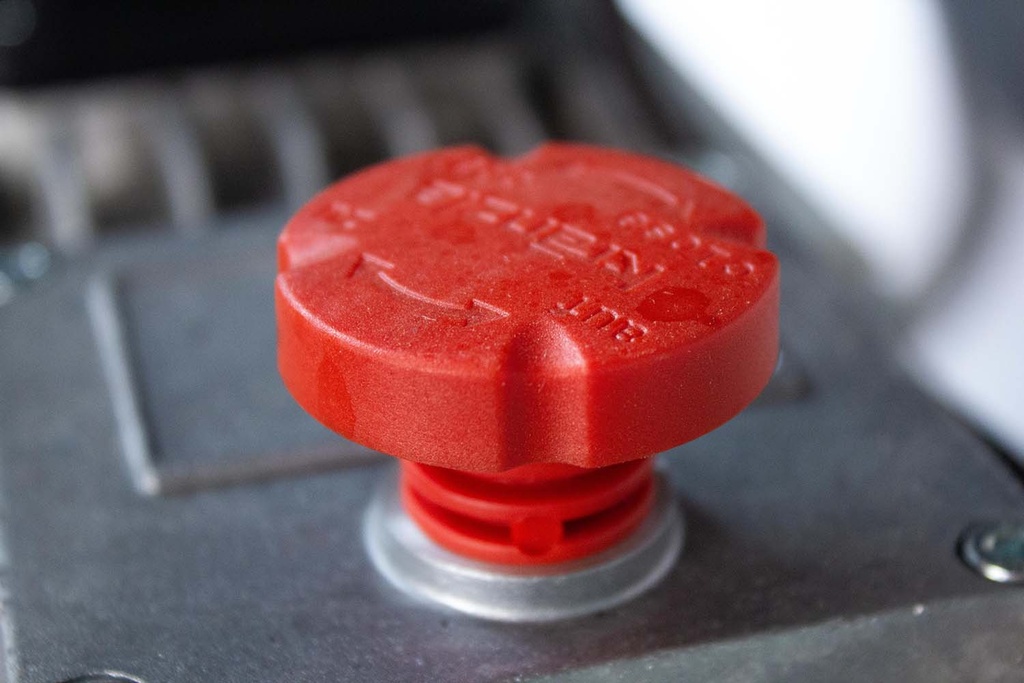

21 | Oil Dipstick AQ | 40463 | 9740463 | |
22 | Support Disc for Plunger Spring | 40513 | 9740513 | |
23 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
24 | Oil Drain Plug R3/8" | 42019 | 9742019 | |
Oil Housing AQ kpl. with Swash Housing | 40514 | 9740514 |

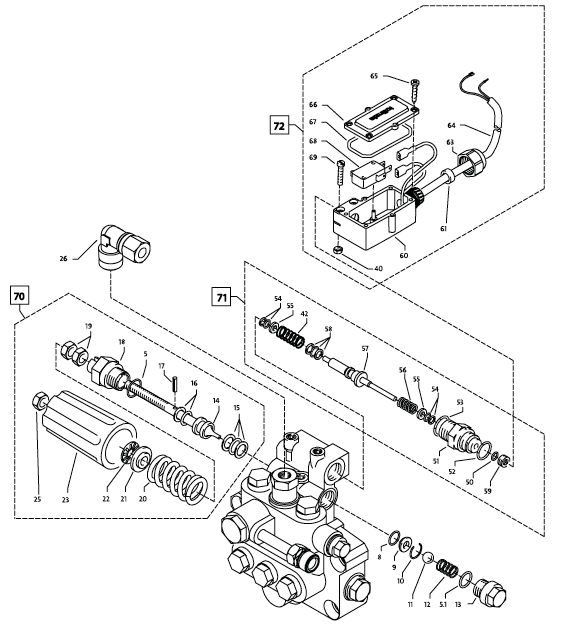

Unloader Valve and Pressure Switch Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Retaining Ring | 13147 | 9713147 | |
11 | Stainless Steel Ball | 12245 | 9712245 | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Screw Plug | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Roll Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring Black | 14125 | 9714125 | |
21 | Spring Pressure Disc | 14126 | 9714126 | |
22 | Needle Bearing | 14146 | 9714146 | |

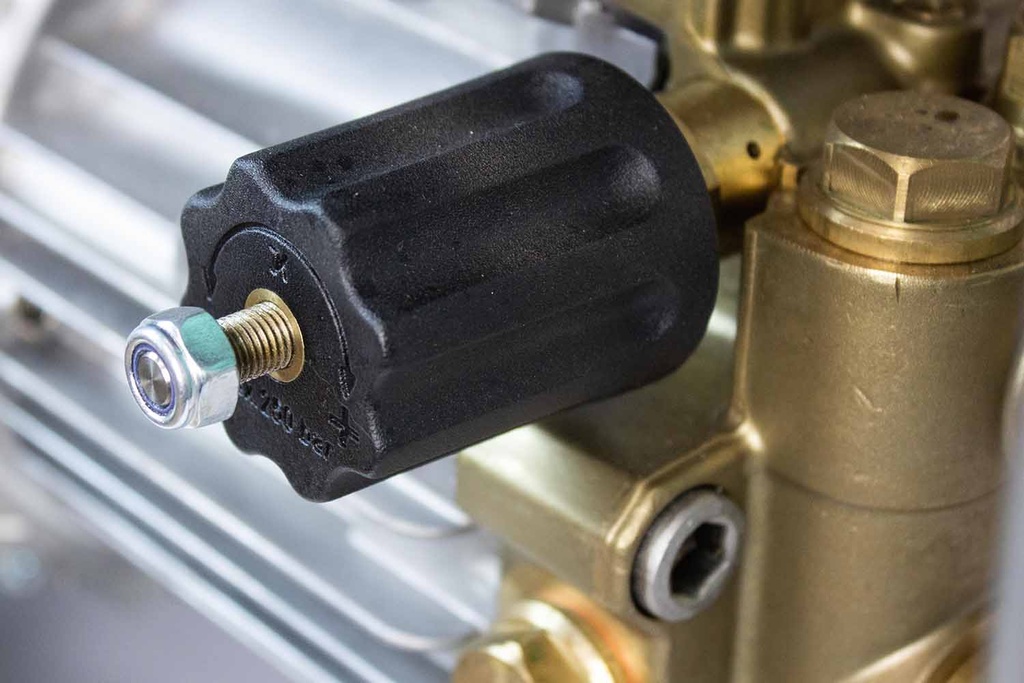

23 | Handwheel | 141472 | special order | |
25 | Elastic Stop Mutter M8x1 | 14152 | 9714152 | |

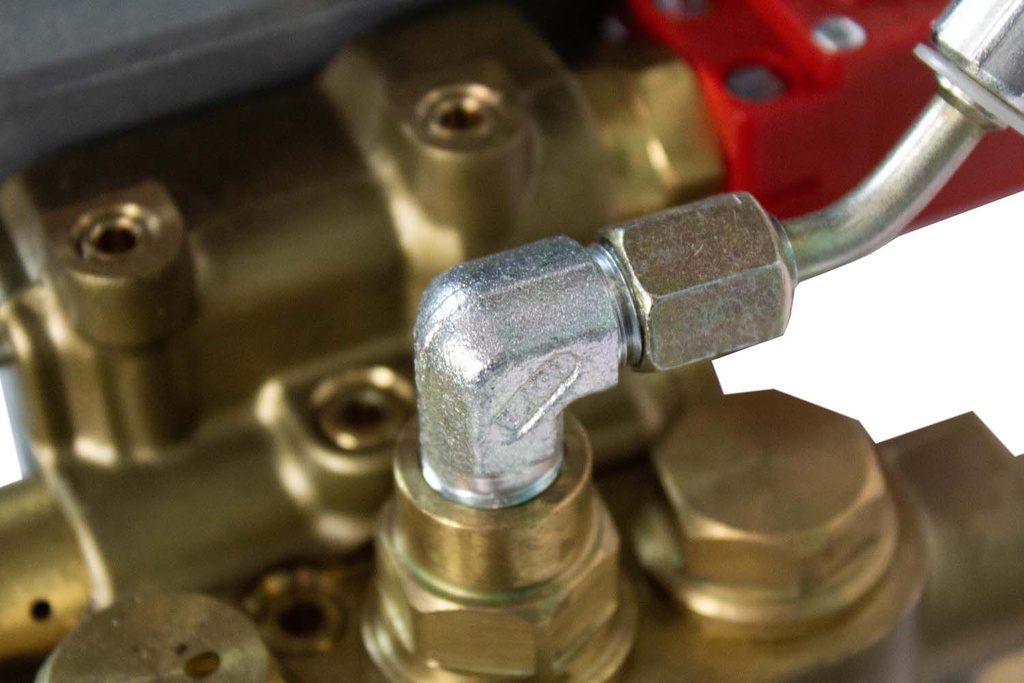

26 | Ermeto Angle 1/4" | 44062 | special order | |
40 | Hexagon Nut M4 | 15026 | special order | |
42 | Compression Spring 1x8.6x30 | 40520 | special order | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
51 | Guide Part Control Lever | 150091 | special order | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disc | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Control Rod | 150102 | 97150102 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
59 | Plug M10x1 Drilled Through | 133851 | special order | |
60 | Housing Electrical Switch | 15205 | special order | |
61 | Rubber Sleeve | 15202 | special order |
63 | Union Nut PG11 | 15203 | special order | |
64 | Cable 2x1.0mm 1.10m grey | 44871 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
66 | Cover Electrical Switch | 152011 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Micro Switch | 44262 | special order | |
69 | Cylinder Head Screw M4x20 | 15025 | special order | |
70 | Piston Complete | 44209 | 9744209 | |
71 | Pressure Switch Mechanics Repair Kit | 150093 | 97150093 | |
72 | Red Pressure Switch Complete with Cable 1.10m | 448951 | special order |

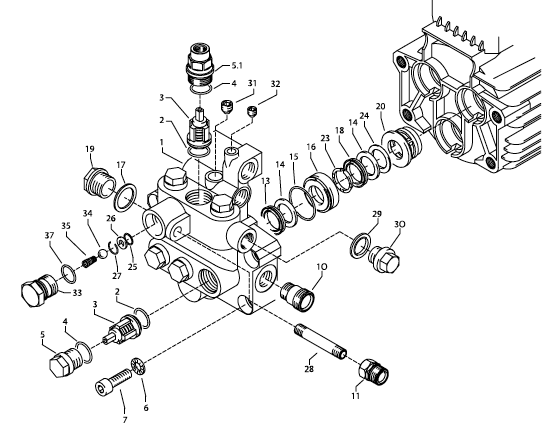

Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing AQ with Integrated UL and pressure Switch | 405035 | special order | |
2 | O-Ring 18x2 | 40016 | 9740016 | |
3 | Inlet/Outlet Valve | 42024 | 9742024 | |
4 | O-Ring 21x2 | 42025 | 9742025 | |
5 | Valve Plug | 42026 | 9742026 | |
5.1 | Valve Plug with R 1/4" IG | 420262 | 97420262 | |
6 | Retaining Ring | 40032 | 9740032 | |
7 | Hexagon Socket Screw m12x45 | 40504 | 9740504 | |
10 | Water Inlet R1/2" AG | 410161 | special order | |
11 | Adaptor Fitting 1/4" M22x1.5 | 13368 | 9713368 | |
13 | Fabric Cuff | 400231 | 97400231 | |
14 | Back Ring 20mm | 40025 | 9740025 | |
15 | O-Ring 31.42x2.62 | 40508 | 9740508 | |
16 | Leakage Ring 20x36x13.3 | 40509 | 9740509 | |
17 | Copper Sealing Ring 21x28x1.5 | 42033 | 9742033 | |
18 | Rubber Sleeve | 40512 | 9740512 | |
19 | Screw Plug R1/2" | 42032 | 9742032 | |
20 | Spacer Ring with Support | 40507 | 9740507 | |
23 | Pressure Ring 20mm | 40021 | 9740021 | |
24 | Intermediate Ring 20mm | 40516 | 9740516 | |
25 | O-Ring 11x1.5 | 12256 | 9712256 | |
26 | Stainless Steel Seat 7 | 14118 | 9714118 | |
27 | Snap Ring | 13147 | 9713147 | |
28 | Outlet Pipe R1/4" | 483030 | special order | |
29 | Copper Sealing Ring 17x22x1.5 | 40019 | 9740019 | |
30 | Plug 3/8" | 40018 | 9740018 |
31 | Sealing Plug M10x1 | 43043 | special order | |
32 | Sealing Plug M8x1 | 13158 | 9713158 | |
33 | Output Part | 40522 | 9740522 | |
34 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
35 | Recoil Spring K | 141201 | 97141201 | |
37 | O-Ring 18x2 | 40016 | 9740016 | |
Valve Housing Complete | 483040 | 97483040 | ||
Repair Kit Cuffs | 400651 | 97400651 | ||
Repair Kit Cuffs without Brass Parts | 40517 | 9740517 | ||
Valve Repair Kit | 400621 | 97400621 |
