Kränzle K599TST 2200 PSI 2.5 GPM Electric Pressure Washer | PN 98K599TSTG
| Special Shipping Method: Freight |
- Kranzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Ground fault interrupter (GFI)
- Auto on / off gun-jet control
- Safety shutdown
- 65 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Fan spray nozzle
- Dirt Killer Rotary Turbo Nozzle

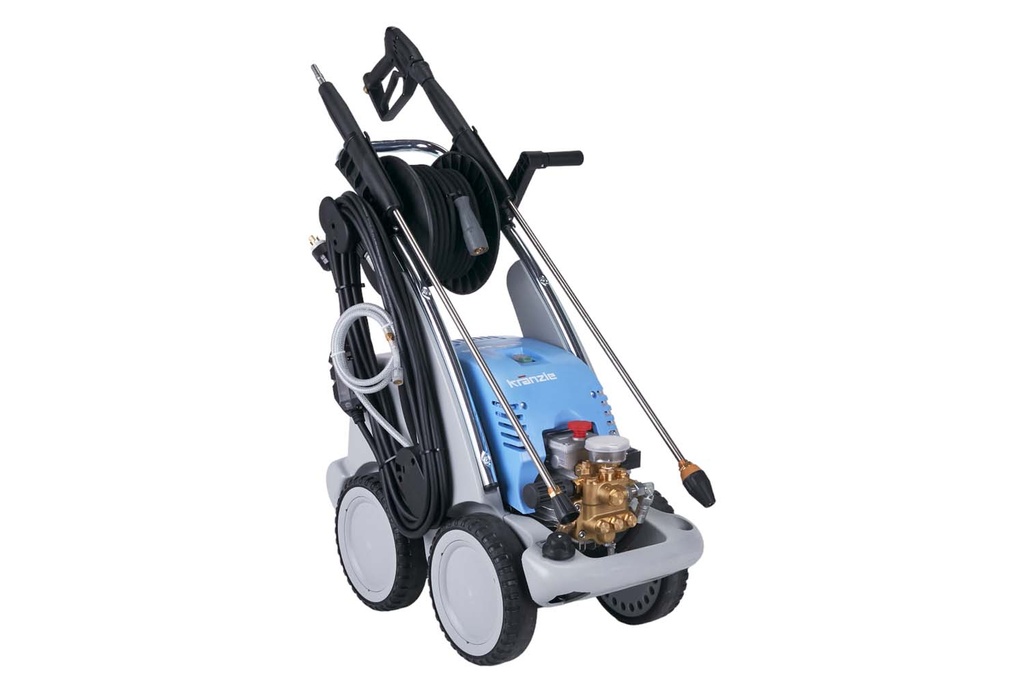

Kranzle K599TST 2200 PSI 2.5 GPM Electric Pressure Washer
The K599TST cold water electric pressure washer produces 2200 PSI, 2.5 gallons per minute of heavy-duty industrial cleaning power. It is the perfect choice for keeping livestock areas and farm machinery clean. Its high-quality Kranzle pump has multi-hour bypass capability, won't freeze, runs dry and is self-priming. This model also features an automatic on / off gun-jet control with 30-second time delay to save pump life and a safety shutdown after 20 minutes to prevent accidents.
Specifications:
PSI: 2500 max adjustable
GPM: 2.5
Electrical Requirements: 220V, 15A, 60Hz
Weight: 132 lb
Dimensions: 31 inches length, 16 inches width, 34 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:

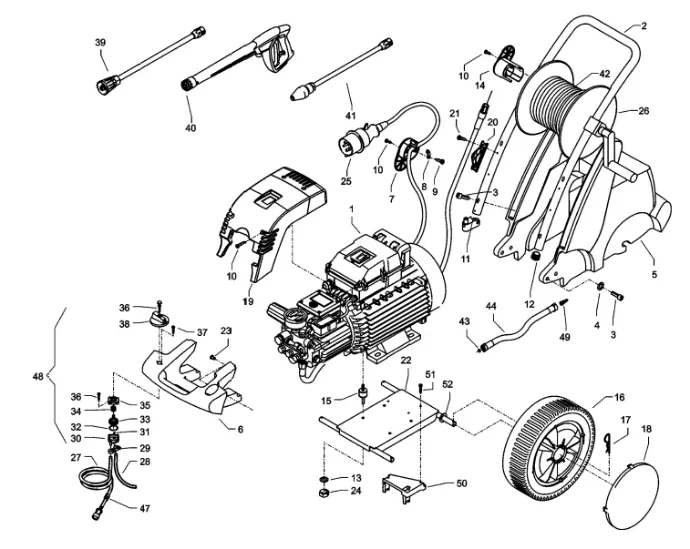

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
2 | Push Bow | 46033 | special order | |
3 | Screw M6x35 DIN6912 | 46024 | special order | |
4 | Disc 6.4 DIN 125 | 50189 | special order | |
5 | water box | 46026 | special order | |
6 | Lance Rest | 46028 | special order | |
7 | Bottom cable Storage | 42611 | special order | |
8 | Strain relief | 43431 | special relief | |
9 | Cup Screw 3.5x12 | 40290 | special order | |
10 | Plastic Screw 5.0x30 | 41412 | special order | |
11 | Lancer Stander | 46021 | special order | |
12 | Pipe Plug dm25 | 46022 | special order | |
13 | Disc 8.4 din125 | 50186 | special order | |
14 | Cable Storage at the top | 42612 | special order | |
15 | Rubber Buffers 30x20 | 46023 | 9746023 | |
16 | Wheel d250 | 46010 | special order | |
17 | Spring Pin | 401151 | special order | |
18 | Hubcap | 46011 | 9746011 | |
19 | Front Panel Quadro 599TST | 460141 | special order | |
20 | Lance Holder | 42610 | special order | |
21 | Sheet Metal Screw 3.9x13 DIN7981 | 41078 | special order | |
22 | Chassis Including Pos. 50, 51, 52 | 46001 | special order | |
24 | Elastic-Stop-Mutter M8 (locknut) | 41410 | 9741410 | |
25 | Power Connection Cable | 46044 | special order | |
26 | Complete Hose Reel | 46081 | special order | |
27 | Chemical Suction Hose fabric with Filter | 42621 | special order | |
28 | Fabric Hose 0.4m | 42622 | special order | |
29 | Hose Clamp 9-9 | 44054 | special order | |
30 | Housing Detergent Valve | 44154 | special order | |
31 | O-Ring 5x1.5 (viton) | 44150 | special order | |
32 | O-Ring 28, 24x2.62 | 44149 | special order | |
33 | Regulating Piston Chemical Valve | 44147 | special order | |
34 | Stainless Steel Spring 1.8x15x15 | 44148 | special order | |
35 | Cover for Chemical Valve | 44146 | special order | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | Sheet Metal Screw 3.5x19 | 44162 | special order | |
38 | Rotary Handle Chemical Valve with Blind Cap | 44151 | special order |
39 | Lance with Flat Jet Nozzle | 12394-M20035 | special order | |
40 | Midi-Pistol with Extension | 12160 | special order | |
41 | Dirt Killer turbo nozzle 035 | 46150 | 9746150 | |
42 | High Pressure Hose 20m NW6 | 434161 | 97434161 | |
43 | O-Ring 13x2.6 | 13272 | 9713272 | |
44 | Connecting Hose | 46032 | 9746032 | |
47 | Check valve for Chemical Suction Hose | 44240 | 9744240 | |
48 | Chemical Valve Kpl. Pos. 30-37 | 44052 | 9744052 | |
49 | Water filter | 42633 | special order | |
50 | Recording Brake | 46042 | special order | |
51 | Screw 5.0x14 | 43426 | special order | |
52 | Disc 19mm | 43830 | special order | |

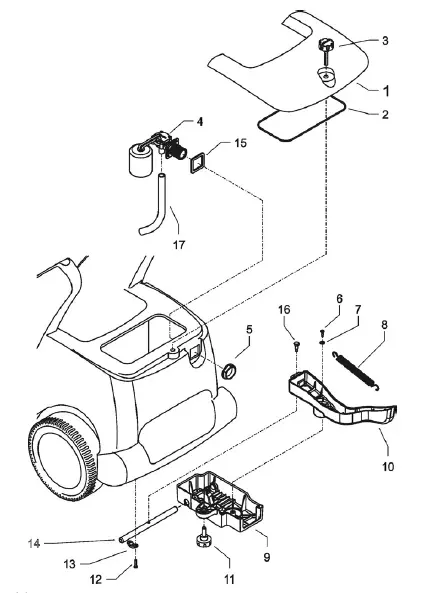

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Inspection Cover | 46027 | special order | |
2 | Seal for Inspection Cover | 46030 | special order | |
3 | Star Grip Screw M6 | 46031 | 9746031 | |
4 | Float Valve | 46250 | 9746250 | |
5 | Nut Float (mutter) | 46258 | 9746258 | |
6 | Plastic Screw 5x14 | 43426 | special order | |
7 | Disc (washer) 5.3 DIN9021 | 50152 | 9750152 | |
8 | Tension Spring | 46020 | special order | |
9 | Brake Cover | 46016 | special order | |
10 | Lever Brake | 46017 | special order | |
11 | Star Screw M8 | 50168 | 9750168 | |
12 | Screw 3.5x14 | 44525 | special order | |
13 | Clamp | 43431 | special order | |
14 | Bolt for Brake | 46018 | special order | |
15 | Seal for Float Valve | 46261 | special order | |
16 | Collar Screw | 46019 | special order | |
17 | Inlet Hose | 46043 | special order | |
Complete Brake Consisting of Pos. 6-14 | 46080 | special order |

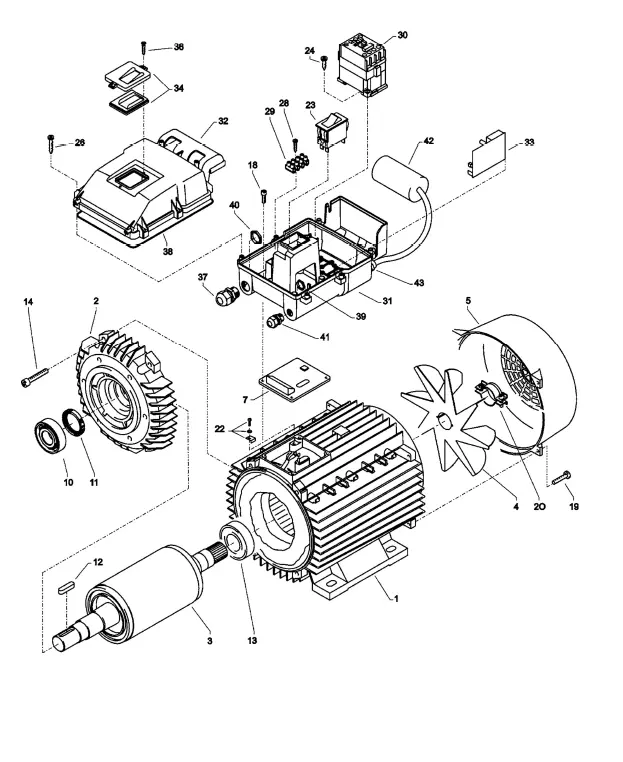

# | Part Name | German Part# | Kranzle USA Part # | Buy Now |
1 | Stator BG100 2.3kW 220V/60Hz | 407201 | special order | |
2 | A-Bearing Flange | 40700 | special order | |
3 | Roter BG100 230V/50Hz | 407031 | special order | |
4 | Pneumatic Wheel BG100 | 40702 | special order | |
5 | Fan Hood BG100 | 40701 | special order | |
7 | Flat Gasket | 43030 | special order | |
10 | Angular Contact Ball Bearings 7306 | 40704 | special order | |
11 | Oil Seal 35x47x7 | 40080 | 9740080 | |
12 | Key 8x7x28 | 40459 | special order | |
13 | Ball Bearings 6206-2Z | 40538 | special order | |
14 | Hexagon Socket Screw M6x30 | 43037 | special order | |
18 | Hexagon Socket Screw M5x12 | 410194 | 97410194 | |
19 | Screw M4x12 | 41489 | special order | |
20 | Clamp For Fan Wheel BG100-112 | 40535 | special order | |
22 | Ground Screw kpl. | 43038 | special order | |
23 | Switch 14.5A Amazon | 411116 | 97411116 | |
24 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
26 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
28 | Plastic Screw 3.5x20 | 43415 | 9743415 | |
29 | Luster Terminal 5-pol | 433261 | 97433261 | |
30 | switch 230V 50/60 Hz | 46005 | 9746005 | |
31 | Switch Box Bottom Part | 46012 | special order | |
32 | Switch Box Cover | 46013 | special order | |
33 | Control Board Switch-Off Delay 230V/50Hz | 42564 | 9742564 | |
34 | Clamping Frame with Switch Seal | 43453 | 9743453 | |
36 | Sheet Metal Screw 3.5x14 | 44525 | special order | |
37 | PG 16-Screw Connection | 414191 | special order | |
38 | Gasket For Switch Box Cover | 42525 | special order | |
39 | Locknut for PG9-screw connection | 410871 | special order | |
40 | Locknut for PG16-screw connection | 44119 | special order | |
41 | PG9- Screw Connection | 42541 | special order | |
42 | Capacitor 60uF | 41148 | 974118 | |
43 | PG-9 Screw Connection Reduced | 41087 | special order | |
Motor compl. without switch items 1-22 | 24087 | special order |

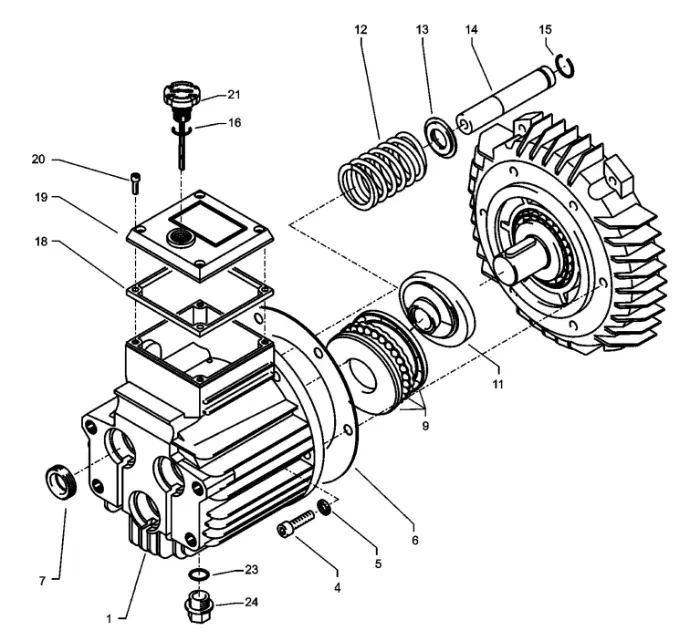

# | Part Name | German Part # | Kranzle USA part # | Buy Now |
1 | Pump Complete Transmission Housing | 40452 | 9740452 | |
4 | Hexagon Socket Screw M8x25 | 40053 | 9740053 | |
5 | Lock Washer | 40054 | 9740054 | |
6 | Flat Gasket | 40511 | special order | |
7 | Oil Seal 18x28x7 | 41031 | 974131 | |
9 | Deep Groove Ball Bearing AM | 40462 | special order | |
11 | Wobble Plate 6.5 degrees | 40460-6.5 | 9740460-6.5 | |
12 | Plunger Spring 18mm | 40453 | 9740453 | |
13 | Spring Pressure Washer | 40454 | 9740454 | |
14 | Plunger 18mm | 40455 | 9740455 | |
15 | Snap ring | 41035 | special order | |
16 | O-Ring 14x2 | 43445 | 9743445 | |
18 | Flat Gasket | 410193 | 97410193 | |
19 | Lid | 410231 | 97410231 | |
20 | Hexagon Socket Screw M5x12 | 410194 | 97410194 | |
21 | Oil Dipstick | 40463 | 9740463 | |
23 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
24 | Oil Drain Plug R3/8" | 42019 | 9742019 | |
Transmission unit AM Complete with Ball Bearing for Quadro 599 consisting of: Items 1-24 | 460871-6.5 | |||

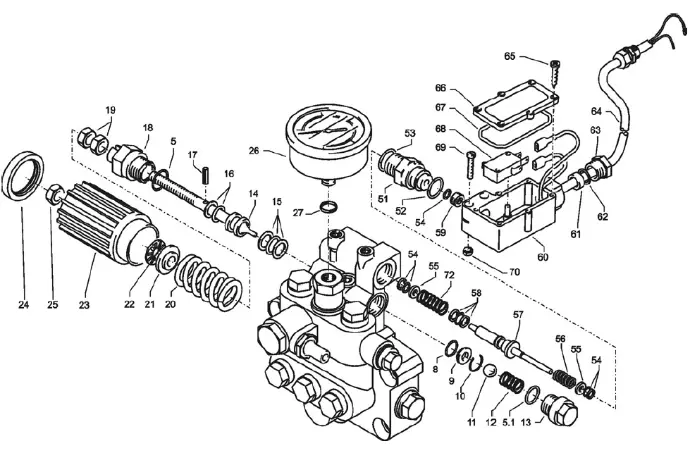

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Circlip (Locking Ring) | 13147 | 9713147 | |
11 | Stainless Steel Ball | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Locking Screw | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Chip Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring (black) | 14125 | 9714125 | |
21 | Spring Pressure Washer | 14126 | 9714126 | |
22 | Needle Bearings | 14146 | 9714146 | |
23 | Handwheel on the Pump | 40457 | special oder | |
24 | Cap Handwheel on the Pump | 40458 | special order | |
25 | Elastic Stop Nut M8x1 | 14152 | 9714152 | |
26 | Pressure Gauge Bar 0-250 | 15039 | 9715039 | |
27 | Aluminum Seal Ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
51 | Guide Part Control Spool | 150091 | special order | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disk | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Tax Stobel (control rod) | 150102 | 97150102 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
59 | Plug Drilled throughM10x1 | 133851 | special order | |
60 | Electric Switch Housing | 15007 | special order | |
61 | Rubber Sleeve PG9 | 15020 | special order |
62 | Disc PG9 | 15021 | special order | |
63 | Screw Connection PG9 | 15022 | special order | |
64 | PVC Cable 2x 1.0mm | 42505 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
