Kränzle K399TST 1600 PSI 1.7 GPM Electric Pressure Washer | PN 98K399TST
Special Shipping Method: Freight |
- Kranzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Ground fault interrupter (GFI)
- Auto on / off gun-jet control
- Safety shutdown
- 50 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Knife-jet (high-pressure wash/soap)
- Dirt Killer Turbo Nozzle | Video >>

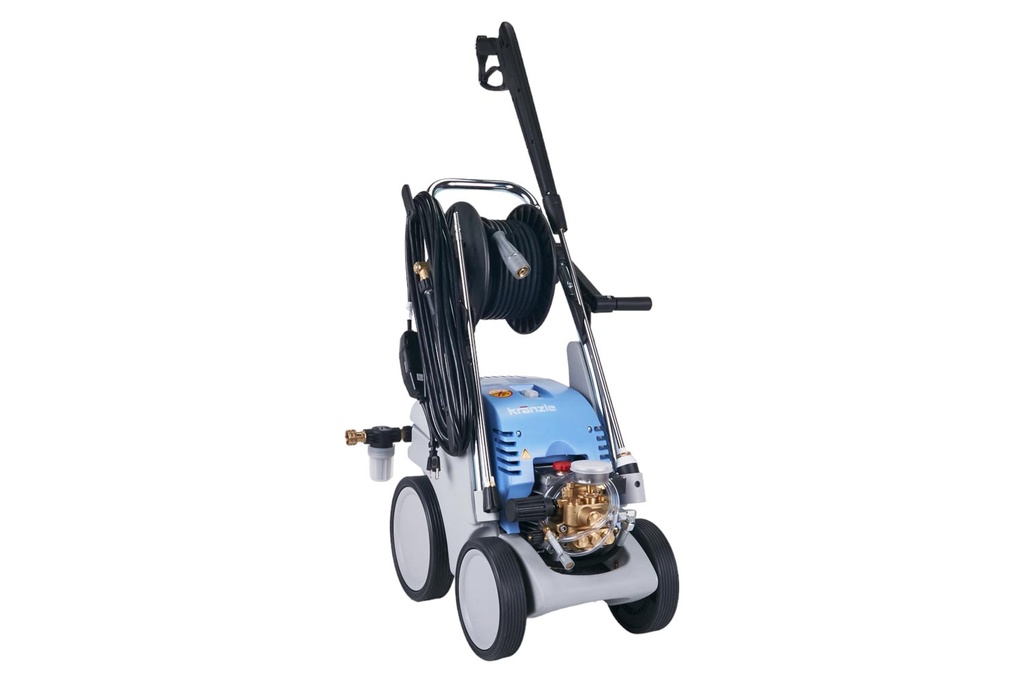

Kranzle K399TST 1600 PSI 1.7 GPM Electric Pressure Washer | Commercial / Industrial grade
The K399TST cold water electric pressure washer produces 1600 PSI, 1.7 gallons per minute and is perfect for medium-duty industrial cleaning jobs such as factories or food-processing facilities. The Kranzle pump design allows this model to self-prime and run dry. This unit also features an automatic on / off gun-jet control with a 30-second time delay to save pump life and a safety shutdown after 20 minutes to prevent accidents.
Specifications:
PSI: 1600 max adjustable
GPM: 1.7
Electrical Requirements: 110V, 15A, 60Hz
Weight: 115 lb
Dimensions: 23 inches length, 14 inches width, 33 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:
Complete Assembly Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
2 | Push Bow | 46504 | special order | |
3 | Screw M6x35 BIN6912 | 46024 | special order | |
4 | Disc 6.4 DIN125 | 50189 | special order | |
5 | Water Box | 46510 | special order | |
6 | Impact Protection at the Front | 46511 | special order | |
7 | Cable Winder | 46507 | special order | |
8 | Strain Relief | 43431 | special order | |
9 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
10 | Plastic Screw 5.0x30 | 41412 | special order | |
11 | Lance Stand | 46502 | special order | |
12 | Cooking Pot | 46503 | special order | |
13 | Wheel d210 | 44538 | 9744538 | |
14 | Hubcap d210 | 46011 | 9746011 | |
15 | Rubber Buffers 20x25 | 46534 | 9746534 | |
16 | Wheel d250 | 46508 | 9746508 | |
17 | Spring Pin | 401151 | special order | |
18 | Hubcap d250 | 46509 | 9746509 | |
19.1 | Front Pannel Quadro 399TST | 465354 | special order | |
19.2 | Front Pannel Quadro 499TST | 465355 | special order | |
20 | Lance Holder | 42610 | special order | |
21 | Sheet Metal Screw 3.5x16 DIN7981 | 44161 | special order | |
22 | Chassis | 46501 | special order | |
23 | Screw M6x12 | 43421 | special order | |
24 | Screw M6x12 | 440901 | special order | |
25.1 | Cable with Plug AWG14 (quadro 399) with Groundfall Interruptor | 435121 | special order | |
25.2 | Cable with Plug AWG12 (quadro 499) with Groundfall INterruptor | 435221 | special order | |
26 | Hose Reel kpl. | 46581 | special order | |
27 | Chemical Suction Hose (fabric) with Filter | 42621 | special order | |
28 | Cable Routing with Strain Relief | 46506 | special order | |
29 | Connecting Hose, Hose Reel | 46537 | 9746537 | |
39 | Lance with Flat Jet Nozzle | 12.392 5-M2003 | special order | |
40 | Gun M2000 | 12480 | 9712480 | |
41.1 | Dirt Killer 03 | 410738 | 97410738 | |
42 | High Pressure Hose 15m NW6 | 40170 | 9740170 | |
43 | O-Ring 13x2.6 | 13272 | 9713272 | |
44 | Connecting Hose Water Box | 46536 | special order | |
47 | Check Valve for Chemical Suction Hose | 44240 | 9744240 |
Water Inlet and Brake Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Inspection Cover | 46512 | special order | |
2 | Seal Inspection Cover | 46513 | 9746513 | |
3 | Star Grip Screw M6 | 46031 | 9746031 | |
4 | Float Valve | 462501 | 97462501 | |
5 | Nut R3/4" | 46258 | 9746258 | |
6 | Plastic Screw 5x14 | 43426 | special order | |
7 | Disc 5.3 DIN9021 | 50152 | 9750152 | |
8 | Tension Spring | 46020 | special order | |
9 | Brake Cover | 46016 | special order | |
10 | Lever Brake | 46505 | special order | |
11 | Star Screw M8 | 50168 | 9750168 | |
12 | Hexagon Socket Screw M4x10 | 46002 | special order | |
13 | Clamp | 43431 | special order | |
14 | Bolt for Brake | 46018 | special order | |
15 | Seal for Float Valve | 46261 | special order | |
16 | Collar Screw | 46019 | special order |
Pump Motor Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Housing for AP | 465301 | special order | |
2 | Motor Housing with Stator Three-Phase Current | 435135 | special order | |
3 | Rotor with Motor Shaft | 43316 | special order | |
4 | Key 6x6x20 | 414831 | 97414831 | |
5 | Engine Bearing B Side 6205-2Z | 43317 | 9743317 | |
6 | Engine Bearing Shoulder Bearing 7304 | 41027 | 9741027 | |
8 | Oil Seal 25x35x7 | 41024 | 9741024 | |
9 | Pnuematic Wheel BG90 | 43319 | 9743319 | |
10 | Fan Hood BG90 | 43320 | special order | |
19 | Cable with Three Phase Plug | 44036 | special order | |
22 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
23 | Hexagon Socket Screw M6x30 | 43037 | special order | |
24 | Ground Screw kpl. | 43038 | special order | |
25 | Screw M4x12 | 41489 | special order | |
26 | Clamp For Fan Wheel | 43454 | 9743454 | |
27 | Plastic Screw 5.0x25 | 414141 | special order | |
28 | Plastic Screw 3.5x20 | 43415 | 9743415 | |
29 | Luster Terminal 5-pol. | 433261 | 97433261 | |
30 | Protection 100-C12KN10 3x400V 50/60 Hz | 460051 | special order | |
31 | Switch Box Bottom Part | 46012 | special order | |
32 | Switch Box Cover | 46013 | special order | |
33 | Switch 8A Amazon | 41751 | special order | |
34 | Clamping Frame with Switch Seal | 43453 | 9743453 | |
36 | Sheet Metal Screw 3.5x14 | 44525 | special order | |
37 | PG 16-Screw Connection | 414191 | special order | |
38 | Gasket for Switch Box Cover | 42525 | special order | |
39 | Locknut for PG9-Screw Connection | 410871 | special order | |
40 | Locknut for PG16-Screw Connection | 44119 | special order | |
41 | PG 9-Screw Connection | 42541 | special order | |
50 | Rubber Seal for Switch Spacer | 411113 | special order | |
51 | Lower Part for Switch Spacer | 411111 | special order | |
52 | Round Seal for Switch Spacer | 411115 | special order | |
53 | Top for Switch Spacer | 411112 | special order | |
54 | Flat gasket for Switch Spacer | 411114 | special order |

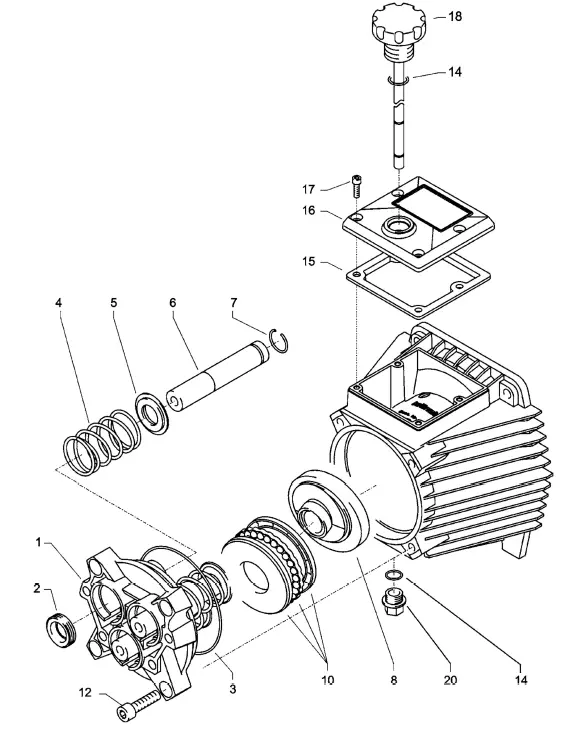

Pump with Plunger Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Housing Plate for 18mm Plunger | 410202 | 97410202 | |
2 | Oil Seal 18x28x7 | 41031 | 9741031 | |
3 | O-Ring Viton 88x2 | 410211 | 97410211 | |
4 | Plunger Spring | 41033 | 9741033 | |
5 | Spring Pressure Washer 18mm | 41034 | 9741034 | |
6 | Plunger 18mm | 410321 | 97410321 | |
7 | Snap Ring 18mm | 41035 | special order | |
8 | Disc 6.5 degrees (quadro 399 TST) | 41028-6.5 | 9741028-6.5 | |
8.1 | Disc 7.5 degrees (quadro 499 TST) | 41028-7.5 | 9741028-7.5 | |
10 | Partial Axel Deep Groove Ball Bearing 3 | 43486 | 9743486 | |
12 | Hexagon Socket Screw M5x12 | 410361 | 97410361 | |
14 | O-Ring 14x2 | 43445 | 9743445 | |
15 | Gasket for Lid | 46531 | special order | |
16 | Cover for Oil Housing | 46532 | special order | |
17 | Screw M5x12 | 410194 | 97410194 | |
18 | Oil Dipstick AP | 46546 | special order | |
20 | Oil Drain Plug M18x1.5 with Magnet | 48020 | 9748020 | |
AP Pump Complete with 18mm Plungers for quadro 399 consisting of items 1-18 | 46589-6.5 | special order | ||
AP Pump Complete with 18mm Plungers for quadro 499 consisting of items 1-18 | 46589-7.5 | special order |

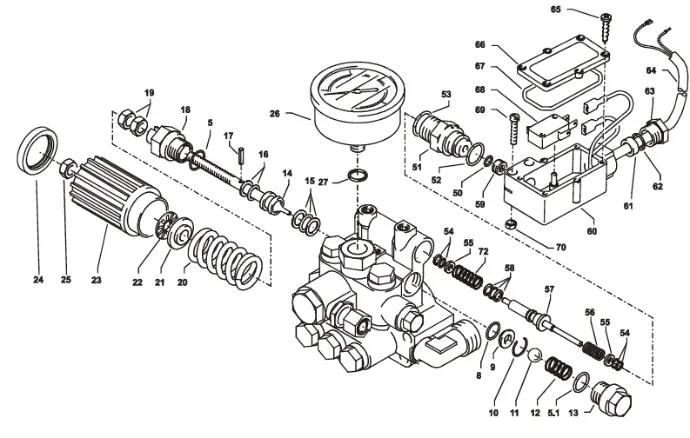

Unloader Valve and Pressure Switch Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Circlip | 13147 | 9713147 | |
11 | Stainless Steel Seat 8.5mm | 13148 | special order | |
12 | Stainless Steel Ball | 14119 | 9714119 | |
13 | Locking Screw | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Roll Pin | 14128 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring Black | 14125 | 9714125 | |
21 | Spring Pressure washer | 14126 | 9714126 | |
22 | Needle Bearings | 14146 | 9714146 | |
23 | Handwheel | 40457 | special order | |
24 | Cap Handwheel | 40458 | special order | |
25 | Elastic Stop Nut | 14152 | 9714152 | |
26 | Manometer 0-250 bar | 15039 | 9715039 | |
27 | Aluminium Seal ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
51 | Guide Part Control Spool | 150091 | special order | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disc | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Control Rod Long | 150102 | 97150102 | |
58 | Parbaks 4mm | 121362 | 97121362 | |
59 | Plug Drilled through M10x1 | 133851 | special order | |
60 | Housing Electric Switch | 15007 | special order | |
61 | Rubber Sleeve PG9 | 15020 | special order |
62 | Disc PG9 | 15021 | special order | |
63 | Screw Connection PG9 | 15022 | special order | |
64 | Cable 2x1.5mm for 9/170-11/140TS | 46515 | special order | |
64.1 | Cable 2x1.0mm for quadro 12/150TS | 46516 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
66 | Cover Electric Switch | 15008 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Micro Switch | 15018 | 9715018 | |
69 | Cylinder Screw M4x20 | 15025 | special order | |
70 | Hexagon Nut M4 | 15026 | special order | |
72 | Compression Spring 1x8.6x30 | 40520 | special order | |
Pressure Switch Kit | 150093 | 97150093 | ||
Piston Guide Complete with Hand Wheel | 40490 | 9740490 |
Valve Housing Spare Parts

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
