K1622TS Overview
Are you curious how professional's set up their car care solutions? Watch as Josh Lee, The Original Josh walks through proper set up and tear down of the K1622TS. Includes the use of factory accessories and OEM Kranzle Foam Cannon.
Washing a Tesla with a K1622TS
Do you have questions about the Kranzle K1622TS? Ever wondered about amp draw? OEM accessories? or even just basic start up and operation? Join Josh Lee, The Original Josh as he walks through everything from set up, operation, and even storage on the 1622.
Detail kit in use
Includes:
- Starlett gunjet w/ swivel
- Kranzle foam cannon
- 3.0 nozzle pack
The 1622TS (Total Stop) electric pressure washer produces 1600 PSI, 1.7 gallons per minute, and has the beloved total stop feature. Its solid brass pump head and hardened steel piston will give you years of service beyond anything else in its class. Kranzle pressure washers are engineered and manufactured according to strict German standards. They are built to last no matter what industry you use them in. The 1622TS in particular is a favorite in the car detailing and light industrial markets (such as 3D printing, silk screening, and restaurants).
Pressure Washer Specifications
The 1622TS comes with a Vario-Jet nozzle, hose, wand, and gun jet. Just plug it in, turn on the water, and get busy!
- PSI: 450 to 1600 adjustable
- GPM: 1.7
- Electrical Requirements: 110V, 15A, 60Hz
- Weight: 55lbs
- Dimensions: 18 inches length, 7 inches width, 13 inches height
Accessories Included:
- 33 ft wire braided hose
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Vario-Jet (high-pressure wash/soap) nozzle | Video >>
Warranty: 1 year commercial, 2 year residential
When choosing flat tip nozzles for the K1622TS be sure to use a 3.0 orifice for optimum performance. You may choose a larger orifice to reduce PSI and increase flow.
Considering a mobile application? Please review the video for pertinent information:
Choosing the right size generator for your Kranzle pressure washer | 1322TS, 1622TS, 1122TST
Josh Lee, the Original Josh, uses this simple formula to determine the right size generator for your Kranzle.
Wattage = Amps X Volts x 3
For example: 15 amps x 110 volts x 3 = 4950 Watts.
*Minimum 4800 watts. Lower watts will cause problems with your machine and is not covered under warranty.
*Do NOT use "inverter" generators. They are NOT designed for tools that produce power surges.
He also give us solid tips about how to use your Kranzle with a generator.
1) Do NOT use ECO mode
2) Only run the Kranzle by itself. No other electric tools should be pulling from the generator except the Kranzle
Discover moreKranzle plumbing tips : Water tank hook up | 1622TS, 1322TS, 1122TST
Josh Lee, The Original Josh, shows us the best practices when hooking up a water tank to your Kranzle 1622TS, 1322TS or 1122TST. In short, NO you do NOT need a booster pump, the shorter the line the better and make it a dedicated line.
Kranzle Plumbing Tips
Josh Lee, The Original Josh, despite misgivings, gives some solid advice about what do if you absolutely have to use a 90 degree elbow when connecting the water in line. In short, don't, unless you absolutely have to.
Extension cords: Yes or NO? Kranzle USA Pressure Washer | Official Answer
Should you use an extension cord with your Kranzle electric pressure washer?
Discover more15 or 20 AMP for the 1622TS, 1122TST and 1322TS Kranzle Pressure Washer | Official
Josh Lee, the Original Josh, explains whether we need a 15 AMP or 20 AMP circuit for the 1622TS, 1122TST and 1322 Kranzle electric pressure washers. The answer is 15, but it must be a DEDICATED circuit!
Storage Tips Kranzle USA Pressure Washer Perfection 1622 1122 1322
Josh Lee share a few tips about how to store your Kranzle pressure washer when not in house. In short, cool, dry place away from any corrosive chemicals such as pool bleach, etc. NOT FREEZING.
Watch on YoutubeComplete Assembly Spare Parts

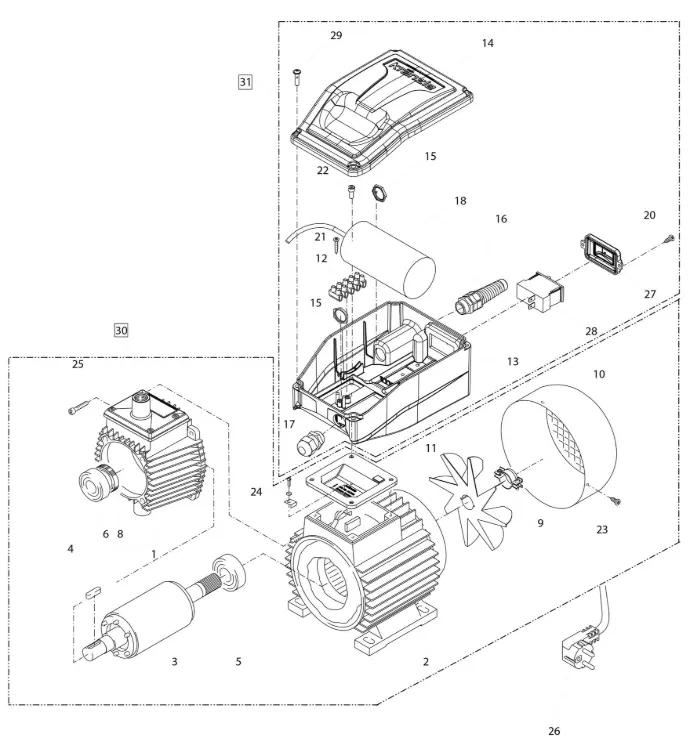

Motor Spare Parts
# | Part Name | German part# | Kranzle USA # | Buy Now |
1 | Transmission Housing | 44501 | 9744501 | |
2 | Stator | 230022 | Special order | |
3 | Motor shaft with Rotor | 43104 | Special order | |
4 | Feather Key 6x6x20 | 414831 | 97414831 | |
5 | Motor-Bearing B-side (fan-side) | 43025 | 9743025 | |
6 | Motor-Bearing A-side (pump-side) | 43026 | 9743026 | |
8 | Oil Seal 25x35x7 | 41024 | 9741024 | |
9 | Motor Fan (with clamp) | 41496 | special order | |
10 | Motor Fan Casing (fan cover) | 41497 | 9741497 | |
11 | Flat Seal (gasket) | 44513 | special order | |
12 | Terminal Strip 5-pin | 433261 | 97433261 | |
13 | Switch box (electrical enclosure lower housing) | 411330 | 97411330 | |
14 | Top Cover (electrical enclosure top cover with seal) | 411340 | 97411340 | |
15 | Lock nut (cable connector nut PG11) | 44521 | 9744521 | |
16 | Cable Gland PG11 (with kink protector) | 41091 | 9741091 | |
17 | Cable Gland (connector) PG11 | 41419 | 9741419 | |
18 | Capacitor 80 uF | 43505 | 9743505 | |
20 | Sheet Metal Screw 3.5x9.5 | 41088 | 9741088 | |
21 | Sheet Metal Screw 2.9x16 | 43036 | special order | |
22 | Sheet Metal Screw 4.8x16 | 40282 | special order | |
23 | Sheet Metal Screw 3.9x9.5 | 41079 | special order | |
24 | Ground Screw Assembly (Complete) | 43038 | special order | |
25 | Allen (Hex Socket) Screw M6x30 | 43037 | special order | |
26 | Power cord (110 volt 15 amp with ground fault interrupter) | 0800027 | 0800027 | |
27 | Switch Clamping Frame with Seal | 43453 | 9743453 | |
28 | Power Switch 14.5A | 43458 | 9743458 | |

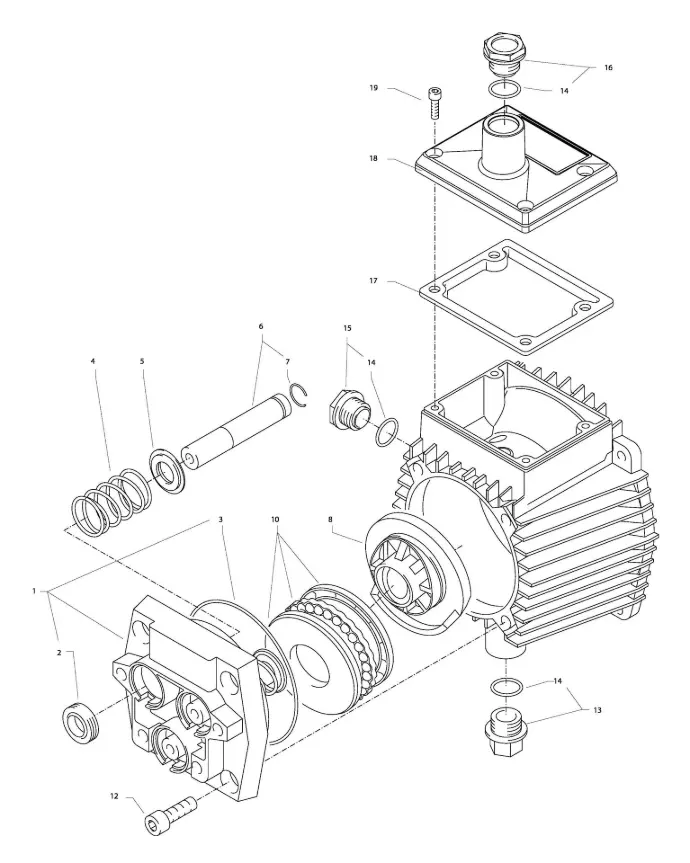

Transmission Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Housing Plate | 43003 | 9743003 | |
2 | Oil Seal (14x24x7) | 41631 | 9741631 | |
3 | O-Ring 83x2 | 43039 | 9743039 | |
4 | Plunger Spring | 43040 | 9743040 | |
5 | Plunger Spring Washer 14mm | 43041 | 9743041 | |
6 | Plunger 14mm | 49021 | 9749021 | |
7 | Snap Ring 14mm | 41635 | 9741635 | |
8 | Wobble Plate 9.75 degrees | 41028-975 | 9741028-975 | |
10 | Bearing Set (includes roller bearing and thrust washers) | 43486 | 9743486 | |
12 | Allen Bolt (Hex socket screw) M8x25 | 40053 | 9740053 | |
13 | Oil Drain Plug M18x1.5 (with magnet) | 48020 | 9748020 | |
14 | O-Ring 12x2 | 150051 | 97150051 | |
15 | Oil Sight Glass | 420181 | 97420181 | |
16 | Oil Fill Plug | 43437 | 9743437 | |
17 | Oil Housing Cover Gasket | 445011 | 97445011 | |
18 | Oil Housing Cover | 445012 | special order | |
19 | Allen Bolt M5x12 | 410194 | 97410194 |

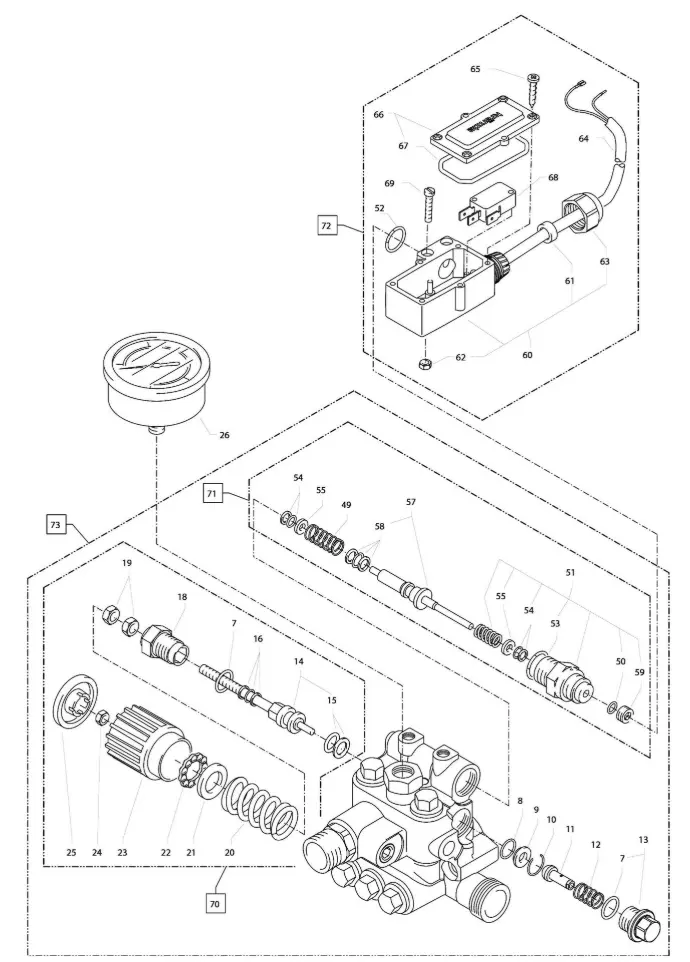

# | Part Name | German Part# | Kranzle USA Part # | Buy Now |
7 | O-Ring 12x2 | 150051 | 97150051 | |
8 | O-Ring 11x1.5 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | buy now |
10 | Locking Ring (Retaining Clip) | 13147 | 9713147 | |
11 | Start-up relief Valve (easy start valve) | 490411 | 97490411 | |
12 | Stainless Steel Spring | 49042 | 9749042 | |
13 | Brass Plug | 49053 | special order | |
14 | Unloader Control Piston (with Seals) | 44532 | 9744532 | |
15 | Parbaks for Piston, 14mm | 141231 | 97141231 | |
16 | Parbaks for Spindle, 6mm | 141232 | 97141232 | |
17 | Brass Disc | 43045 | 9743045 | |
18 | Control Piston Guide, 6mm | 141301 | 97141301 | special order |
19 | Hex Nut, M6 | 141271 | special order | |
20 | Black Unloader Spring for AZ pump | 43046 | 9743046 | |
21 | Unloader Spring Washer | 43047 | special order | |
22 | Ball Bearing for unloader Piston | 43048 | 9743048 | |
23 | Handwheel for AZ pump M6 | 43049 | 9743049 | |
24 | Nut M6 SW8 | 43010 | 9743010 | |
25 | Handwheel Cap for AZ-Pump | 43050 | 9743050 | |
26 | Pressure Gauge | 15039 | 9715039 | |
49 | Compression Spring, 1x8.6x30 | 40520 | special order | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 |
51 | Control Rod Guide Complete Assembly | 490580 | 97490580 | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks, 4mm | 121362 | 97121362 | |
55 | Brass Support Disc | 150151 | special order | |
57 | Pressure switch Control Piston (control rod) | 150102 | 97150102 | |
58 | Parabaks, 7mm | 15013 | 9715013 | |
59 | Plus with Through Port M10x1 | 133851 | special order | |
60 | Pressure (Micro) Switch Housing | 15200 | special order | |
61 | Rubber Sleeve | 15202 | special order | |
62 | Hex Nut M4 | 12138 | special order | |
63 | Unit Nut PG11 | 15203 | special order | |
64 | Electrical Cable 2x1.5mm2 | 49023 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
66 | Pressure Switch Cover | 15201 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Micro Switch | 15018 | 9715018 | |
69 | Machine Screw M4x22 | 15025 | special order | |
70 | Unloader Replacement Kit for AZ and AZ-L Pump | 445321 | 97445321 | |
71 | Pressure Control Rebuild Kit | 150093 | 97150093 | |
72 | Pressure Switch (electrical component) | 44561 | 99744561 | |
73 | Valve Housing Complete | 445912 | 97445912 |

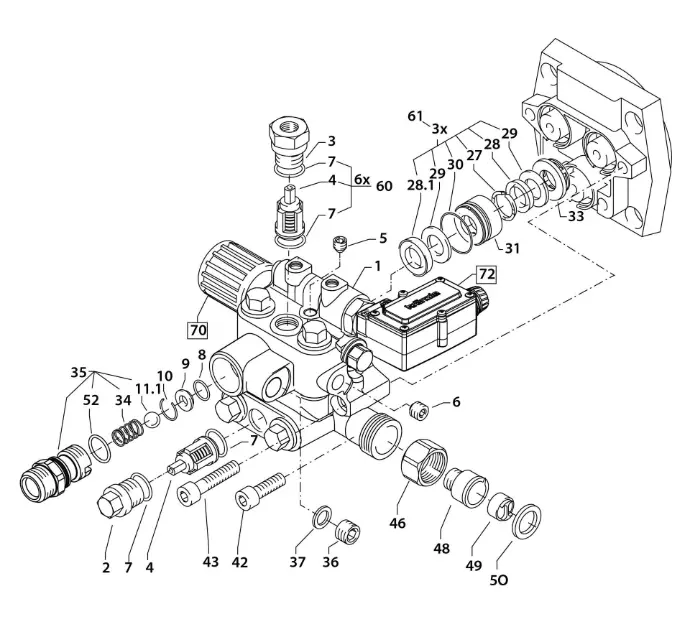

# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Body (housing) | 490262 | special order | |
2 | Valve Plug | 41011 | 9741011 | |
3 | Valve Plug with R 1/4" IG (female port) | 410111 | 97410111 | |
4 | Check Valve Green | 416121 | special order | |
5 | Sealing Plug M8 x1 | 13158 | 9713158 | |
6 | Sealing Plug M10 x1 | 43043 | special order | |
7 | O-Ring 12x2 | 150051 | 97150051 | |
8 | O-Ring 11x1.5 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Locking Ring (retaining clip) | 13147 | 9713147 | |
11.1 | Stainless Steel Ball 10.0mm | 12122 | 9712122 | |
27 | Support Ring | 41618 | special order | |
28 | Cuff (Low Pressure Cupped Water Seal) 14x24x5/2.5 | 41613 | 9741613 | |
28.1 | Cuff tissue (High Pressure Cupped Water Seal) 14x24x5/2.5 | 416131 | 97416131 | |
29 | Backring 14x24 | 41614 | 9741614 | |
30 | O-Ring 24x2 | 49024 | special order | |
31 | Leakage Ring | 49022 | 9749022 | |
33 | Brass Intermediate Ring with Support | 43055 | 9743055 | |
34 | Non Return Spring | 141201 | 97141201 | |
35 | Outlet Fitting 22mm (with ball and spring) | 405221 | 97405221 | |
36 | Sealing Plug | 13387 | 9713387 | |
37 | Aluminum Sealing Ring | 13275 | 9713275 | |
42 | Allen Screw M8x25 | 40053 | 9740053 | |
43 | Allen Screw M8x45 | 41017 | 9741017 | |
| 46 | Union Nut for US Water Inlet | 43518 | 9743518 | buy now |
48 | Suction Port for US Water Inlet | 43517 | special order | |
| 49 | Inlet Screen | 410462 | special order | |
| 50 | Rubber Garden Hose Gasket | 53519 | special order |
52 | O-Ring 18x2 | 40016 | 9740016 | |
60 | Repair Kit Check Valves Green | 416481 | 97416481 | |
61 | Repair Kit Water Seals (Packing Kit) | 49053 | 9749053 | |
70 | Control Piston Complete With Handwheel | 445321 | 97445321 |
Check out some custom detail rigs that use the Kranzle 1622TS >>
