Kränzle K1200TST 2400 PSI 5.0 GPM Electric Pressure Washer | PN 98K1200TST
| Special Shipping Method: Freight |
- Kranzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Ground fault interrupter (GFI)
- Auto on / off gun-jet control with 30-second time delay
- Safety shutdown after 20 minutes
- 65 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Fan spray nozzle
- Dirt Killer Turbo Nozzle
Quadro 1200 220V Electric Pressure Washer
The K1200TST cold water electric pressure washer produces 2400 PSI, 5.0 gallons per minute of heavy-duty industrial cleaning power and is the perfect choice for use in a wash bay to maintain vehicles or wash heavy machinery. Its industrial-grade Kranzle pump can run dry or on bypass for hours, won't freeze and is self-priming. This unit also includes an automatic on / off gun-jet control with a 30-second time delay and safety shutdown after 20 minutes. These safety features help prolong the life of the pump and prevent accidents.
Specifications:
PSI: 2400 max adjustable
GPM: 5.0
Electrical Requirements: 220V, 25A, 60Hz, 3-phase
Weight: 196 lb
Dimensions: 31 inches length, 23 inches width, 40 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:
Complete Assembly Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Motor Pump without Electronics for Quadro 1200TST | 426223 | special order | |
2 | Push Bar | 42601 | special order | |
3 | Star Grip Nut M8 | 42619 | special order | |
4 | Plug | 42613 | special order | |
5 | Water Tank | 42603 | special order | |
6 | Lance Rest | 42604 | special order | |
7 | Cable Winding Below | 42611 | special order | |
8 | Strain Relief | 43431 | special order | |
9 | Sheet Metal Screw 3.5x12 | 40290 | special order | |
10 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
11 | Disc 21 DIN125 | 40207 | special order | |
12 | Screw M8x50 DIN912 | 42620 | special order | |
13 | Disc 8.4 Din125 | 50186 | special order | |
14 | Cable Winding at the Top | 42612 | special order | |
15 | Rubber Buffer 25x25 | 44227 | special order | |
16 | Wheel | 44017 | special order | |
17 | Splint 5x28 DIN 94 | 42614 | special order | |
18 | Hubcap | 44018 | special order | |
19 | Front Panel Quadro 1200TST | 426093 | special order | |
20 | Lance Holder | 42610 | special order | |
21 | Sheet Metal Screw 3.5x16 DIN7981 | 44161 | special order | |
22 | Chassis | 42602 | special order | |
23 | Disc 8.4 DIN9021 | 41409 | special order | |
24 | Elastic Stop Mutter M8 | 41410 | 9741410 | |
25 | Power cable 8m | 44036 | special order | |
26 | Hose Reel kpl. | 412596 | special order | |
27 | Chemical Suction Hose (Fabric) with Filter | 42621 | special order | |
28 | Fabric Hose 0.4m | 42622 | special order | |
29 | Hose Clamp 9-9 | 44054 | special order | |
30 | Housing Detergent Valve | 44145 | special order | |
31 | O-Ring 5x1.5 (viton) | 44150 | special order | |
32 | O-Ring 28.24x2.62 | 44149 | special order | |
33 | Regulating Piston Chemical Valve | 44147 | special order | |
34 | Stainless Steel Spring 1.8x15x15 | 44148 | special order |
35 | Cover for Chemical valve | 44146 | special order | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | Sheet Metal Screw 3.5x19 | 44162 | special order | |
38 | Rotary Handle Chemical Valve with Cover Cap | 44151 | special order | |
39 | Lance with FlatJet Nozzle for 1200TST | 12.392D2507 | special order | |
40 | Starlet Pistol with Extension | 123202 | 97123202 | |
41 | Turbo Killer 07 at Quadro 1200 TST | 410727 | special order | |
42 | High Pressure Hose 20m NW8 | 41083 | 9741083 | |
43 | O-Ring 13x2.6 | 13272 | 9713272 | |
44 | Connecting Hose with Angle | 426251 | 97426251 | |
45 | Disc 8mm for Wheel | 44246 | special order | |
46 | Threaded Pin M6x55 | 426172 | special order | |
47 | Check Valve for Chemical Suction Hose | 44240 | 9744240 | |
48 | Chemical Valve Complete Pos. 30-37 | 44052 | 9744052 | |
49 | Water Filter | 42633 | special order |

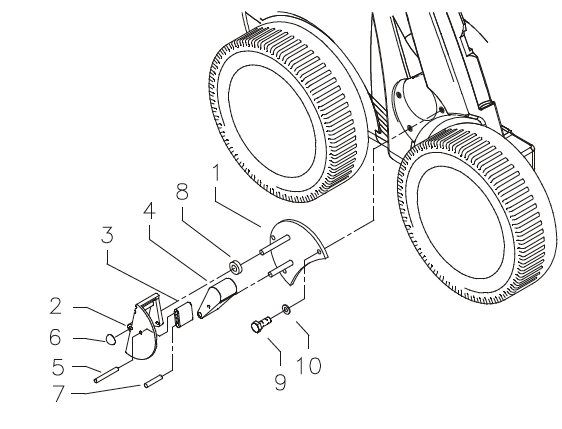

Brake Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Base Plate | 42615 | special order | |
2 | Brake Pedal | 44022 | special order | |
3 | Brake Lever | 44023 | special order | |
4 | Brake Pad | 44024 | 9744024 | |
5 | Pin 6x50 | 44035 | special order | |
6 | Starlock Cap 8mm | 44165 | special order | |
7 | Pin 6x40 | 440351 | special order | |
8 | Spacer Ring | 42626 | special order | |
9 | Hexagon Screw M6x16 | 50173 | special order | |
10 | Washer DIN125-6.3 | 50189 | special order |

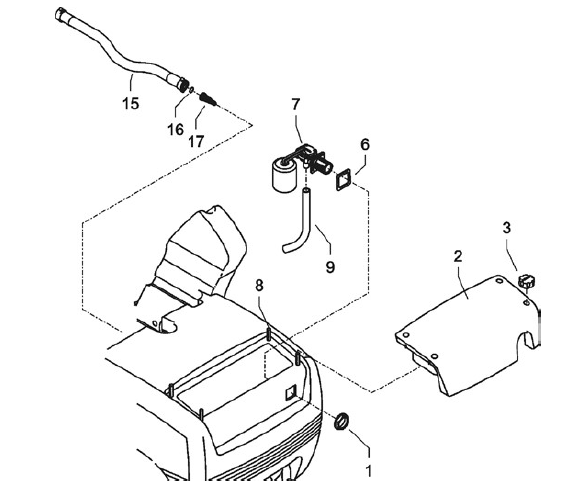

Water Inlet Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Nut R3/4" | 46258 | 9746258 | |
2 | Inspection Cover | 42605 | special order | |
3 | 42619 | |||
6 | 46261 | |||
7 | 46250 | |||
8 | 426171 | |||
9 | 42640 | |||
15 | 426251 | |||
16 | 12256 | |||
16.1 | 13272 | |||
17 | 42633 |
