Kranzle KWS1200TS 440V AQ 2400PSI 5.OGPM 16A 3PH | PN 98KWS1200TS440
| Special Shipping Method: Freight |

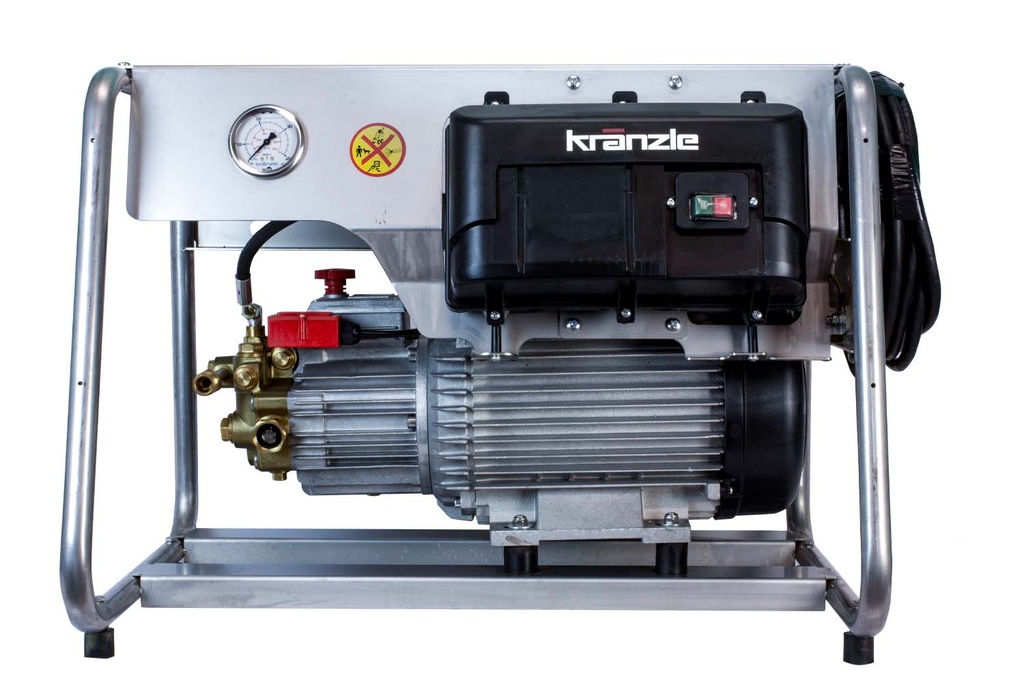

KWS 1200 TS Stationary/Wall mount electric pressure washer
The KWS1200TS cold water stationary electric pressure washer produces 2400 PSI and 5.0 gallons per minute. It is ideal for industrial and commercial use such as fleet wash, manufacturing, food production, and any industry where the object to be cleaned is brought to a wash station.
Equipped with an industrial-grade Kranzle AQ pump, this unit has both run-dry and multi-hour bypass capability. It also has the 30 second motor stop function which turns the motor off 30 seconds after you stop spraying, helping to extend the life of the machine.
Specifications:
PSI: 2400 max adjustable
GPM: 5.0 max
Electrical Requirements: 440V, 12A, 60Hz, 3-phase (also available in 220V model; contact us for more info)
Weight: 187 lb
Dimensions: 14 inches length, 31 inches width, 28 inches height
Warranty: 1 year commercial for manufacturer defect
Additional Features:
- 30 second Motor Stop function
- Safety shut down after 20 minutes of non-use
Accessories Included:
- 10 meter wire braided hose with one live swivel end
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Lance with fan nozzle for high-pressure washing
Complete Assembly Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Supporting Frame | 483000 | special order | |
2 | Rubber Metal Stop Buffer 25x25 | 483003 | special order | |
3 | Hexagon Screw M6x30 | 483004 | special order | |
4 | Cover Plate WS 100 TS Complete | 4830011 | special order | |
5 | Screw M6x10 | 44177 | special order | |
6 | Manometer (pressure gauge) 0-400 bar | 150394 | 97150394 | |
7 | Clamp for Manometer | 44049 | 9744049 | |
8 | Screw 5.0x25 | 414142 | special order | |
9 | Cable feed-through WS 1200 TS | 42513 | special order | |
9.1 | Cable feed-through WS 700S | 425131 | special order | |
10 | Strain Relief | 43431 | special order | |
11 | Plastic Screw 3.5x14 | 44525 | special order | |
12 | Rubber Vibration amper 30x30 | 44227 | special order | |
13 | Washer 8.4 DIN 9021 | 41409 | special order | |
14 | Elastic Stop Mutter M8 | 414101 | special order | |
15 | Water Filter | 13310 | 9713310 | |
16 | Plug In Coupling | 410474 | special order |
Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Stator 112 3.8kW 440V 3/60Hz | 405412 | special order | |
2 | A Long Flange | 40530 | special order | |
3 | Rotor 112 | 405315 | special order | |
4 | Fan Wheel BG112 | 405321 | special order | |
5 | Fan Hood BG112 | 40533 | 9740533 | |
6 | Terminal Box | 40534 | special order | |
7 | Flat Gasket | 43030 | special order | |
8 | Chandelier 10mm 4-terminal block | 433262 | special order | |
9 | PG Screw Connection PG 13.5 | 40539 | special order | |
10 | Tapered Roller Bearings 31306 | 40103 | 9740103 | |
11 | Oil Seal 35x47x7 | 40080 | 9740080 | |
12 | Keyway 8x7x28 | 40459 | special order | |
13 | Ball Bearings 6206-2Z | 40538 | special order | |
14 | Hexagon Socket Screw M6x30 | 43037 | special order | |
16 | Sheet Metal Screw 3.5x19 | 44162 | special order | |
17 | V-Seal | 40545 | special order | |
19 | Screw M4x16 | 42542 | special order | |
21 | Screw M4x16 | 42542 | special order | |
22 | Grounding Screw kpl. | 43038 | special order | |
50 | Motor Complete Without Swicth 440V/60Hz | 24068 | special order |
Motor Spare Parts, #2
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
21 | Screw M4x12 | 41489 | special order | |
22 | Grounding Screw Complete | 43048 | special order | |
23 | Push Button Switch | 42644 | 9742644 | |
24 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
25 | Stand for Switch | 42608 | special order | |
26 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
28 | Plastic Screw 3.5x20 | 43415 | 9743415 | |
29 | Chandelier Clamp 5-pol | 433261 | 97433261 | |
30 | Protection 100-C12KN10 440V 3 50/60 Hz | 460052 | special order | |
31 | Switch Box Lower Part | 426061 | special order | |
32 | Switch Box Cover | 426072 | special order | |
33 | Control Board Switch off Delay 400V/50Hz | 425431 | special order | |
34 | Terminal Frame with Switch Seal | 43453 | 9743453 | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | PG16 Screw Connection | 414191 | special order | |
38 | Seal for Switch Box Cover | 42525 | special order | |
39 | Lock Nut for PG9 Screw Connection | 410871 | special order | |
40 | Lock Nut for PG16 Screw Connection | 44119 | special order | |
41 | PG9 Screw Connection | 43034 | 9743034 | |
42 | Overcurrent Release 3-pole 11.3-16A | 42641 | 9742641 |

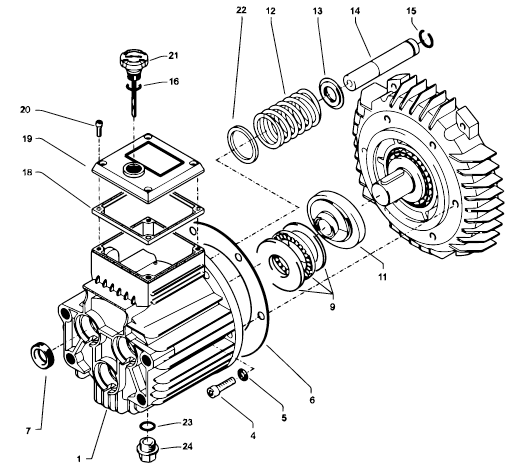

Transmission Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing | 40501 | 9740501 | |
4 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
5 | Lock Washer | 40054 | 9740054 | |
6 | Flat Gasket | 40035 | 9740035 | |
7 | Oil Seal 20x30x7 | 400441 | 97400441 | |
9 | Axial Cylindrical Roller Bearings AQ-Pump | 40524 | 9740524 | |
11 | ? | |||
12 | Plunger Spring | 40506 | 9740506 | |
13 | Spring Pressure Disc | 40510 | 9740510 | |
14 | Plunger 20mm (long) | 40505 | 9740505 | |
15 | Snap Ring | 40048 | special order | |
16 | O-Ring 14x2 | 43445 | 9743445 | |
18 | Flat Gasket | 410193 | 97410193 | |
19 | Flat Lid for Oil Housing | 410231 | 97410231 | |
20 | Hexagon Socket Screw M5x12 | 410194 | 97410194 | |
21 | Oil Dipstick AQ | 40463 | 9740463 | |
22 | Support Disc for Plunger Spring | 40513 | 9740513 | |
23 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
24 | Oil Drain Plug R3/8" | 42019 | 9742019 | |
Oil Housing AQ kpl. with Swash Housing | 40514 | 9740514 |

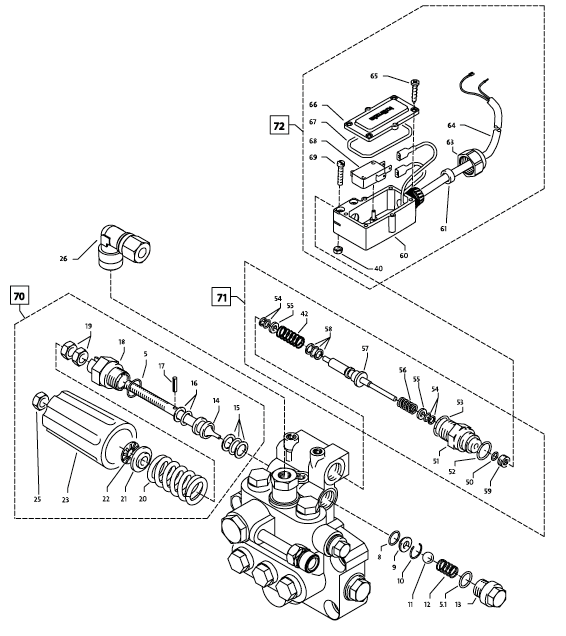

Unloader Valve and Pressure Switch Spare Parts
