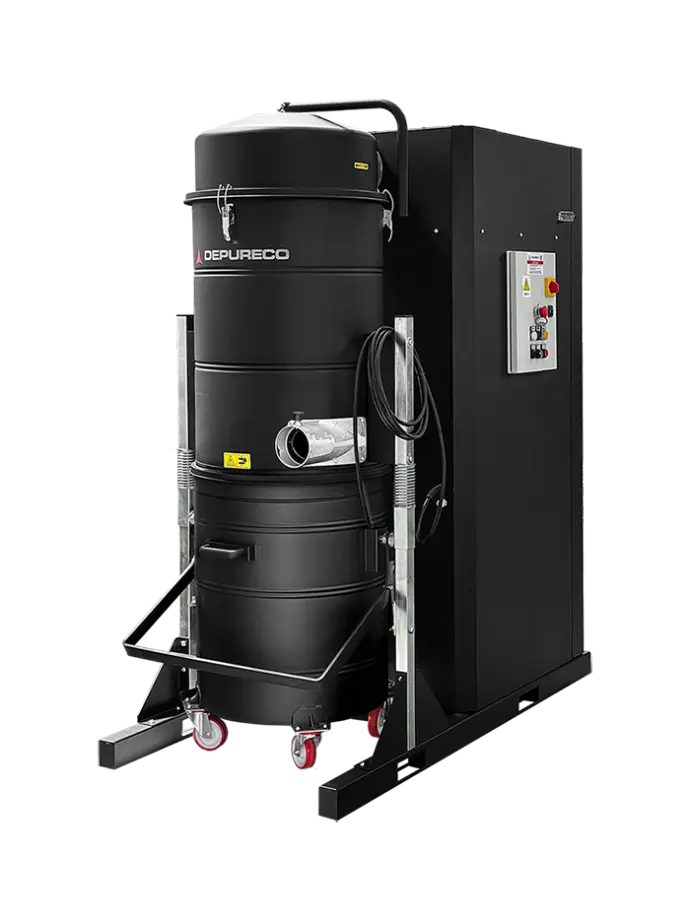

Depureco PUMA FIX 25 Stationary w/ bin | PN 2300208
Specifications:
Motors | Type: Side channel blower
Power: 28.6 | 3~
Voltage | Frequency V|Hz: 480V | 60Hz
IP | Insulation class: 55 | F
Vacuum in continuous run inH2O: 137
Max Air flow: 940CFM
Relief valve: Included
Suction inlet: 100mm (tangential with cyclone)
Electrical panel: included w/ remote vacuum control
Noise level: 74dB(A) w/ inlet and outlet silencer
Bin capacity Type – gal: Painted steel – 46gal
Dimensions: 33 x 66.93in
Height: 77.56in
Primary filter:4x cylindrical cartridges
Total Surface: 18,600in²
(Class EN 60335-2-69) IFA | BGIA M-PES: Class M
Media: Antistatic polyester
Filter cleaning system: SP-Automatic reverse jet cleaning system
Optional Absolute Filter Class - EN 1822: H14
Surface: 17,100in²
Media: Fiberglass
Filtration options: HEPA 14
Construction optionals: WRLS, BX, GX
Accessories: P00283, P00285, P09577
