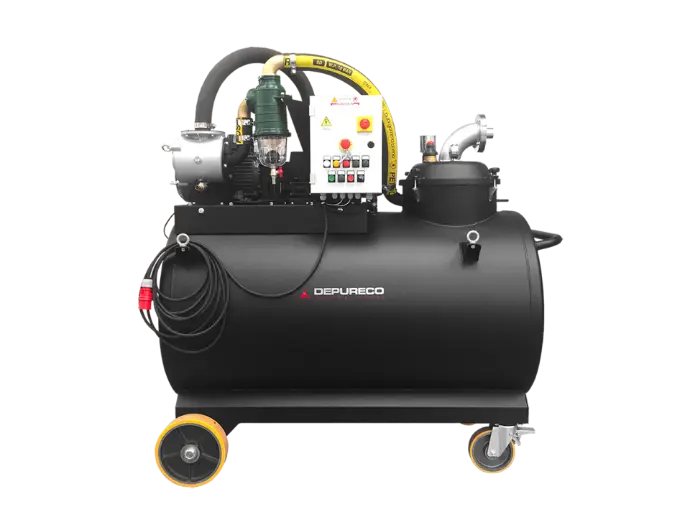

Depureco RAM OIL 1000 AV oil & sludge vacuum | PN 2300141

For technical sheet click below:

   RAM OIL 1000 AV   *see page 7

Motors | Type: Lobe pump

Power: 7.5HP | 3~

Voltage | Frequency: 400V | 60Hz

IP | Insulation class: 55 | F

Vacuum in continuous run: 314inH2O

Max air flow: 176CFM

Relief valve: included

Inlet: 50mm diameter

Noise level: 82 dB(A)

Liquids capacity: 264gal

Solids capacity: 11gal

Suction time: 264gal/220sec

Liquids discharge type: reverse flow

Discharge time: 264gal/200sec

Collection type: sieve grid basket

Dimensions (inches): 37 x 65

Height: 74in

Weight: 1015lbs

Primary filter solids: bag

Efficiency: 150microns

Media: PPL nylon polypropylene

Oil proof cartridge for motor protection: included

Construction options: BIS

Accessories optionals: P12352 (included), P12355
