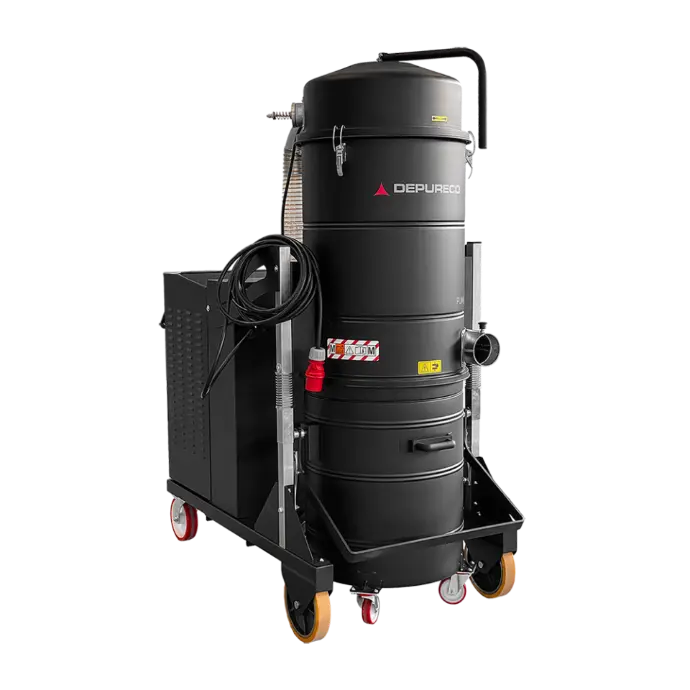

Depureco PUMA20 for large quantity of dusts & solids | PN 2300126
Motors | Type: Side channel blower
Power: 23.2HP | 3~
Voltage | Frequency: 480V | 60Hz
IP | Insulation class: 55 | F
Vacuum in continuous run: 130inH20
Max Air flow: 660CFM
Relief valve: Included
Inlet: 100mm diameter / Tangential with cyclone
Vacuum remote control: included
Noise level: 74 dB(A)
Bin capacity: 46gal
Dimensions (inches): 33.46 x 61.02
Height: 77.95in
Weight: 639lbs
Primary filter: Star
Surface area: 7000in2
Class EN 60335-2-69 (IFA | BGIAM-PES): Class M
Media: Polyester
Filter cleaning: manual
SP – Automatic filter cleaning: 18,600in2; Class M; Antistatic polyester, reverse jet cleaning system
Absolute filter – Optional (Class-EN 1822): H14 Surface area: 17,100in2 Media: fiberglass
Filtration optionals: HEPA 14, ANT M, MTF, NOMEX, PTFE, PTFE ANT
Filter cleaning system options: SP, PSC, COMP, SE
Construction options: BX, GX, TX, GRD, GFR, FKL, WRLS
Accessories optionals: P00283, P00285
Pre-Separators and hoppers for increase capacity or big bag collection: P09120
Collection of Polyethylene filaments | Depureco USA
This custom vacuum system is equipped with a double pre-separator, ensuring continuous suction and discharge. This configuration allows for the efficient collection and disposal of polyethylene filaments in large quantities at the same time.
