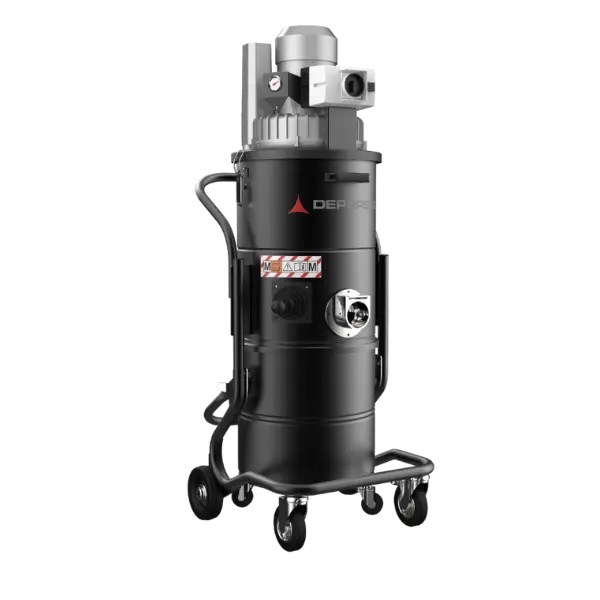

Depureco TB22 dusts & solids in continuous use vacuum cleaner | PN 2300113

For technical sheet click link below:

   TB22 *see page 6​

Motors | Type: Side channel blower

Power: 3.5HP | 3~

Voltage | Frequency: 480V | 60Hz

IP | Insulation class: 55 | F

Vacuum in continuous run: 85inH20

Max Air flow: 160CFM

Relief valve: included

Inlet: 70mm diameter

Noise level: 72 dB(A)

Bin capacity: 12gal

Dimensions (inches): 21.65 x 24.41

Height: 53.27in

Weight: 121lbs

Primary filter: Star

Surface area: 2500in2

Class EN 60335-2-69 (IFA | BGIAM-PES): Class M

Media: Polyester

Filter cleaning: manual

Absolute filter – Optional (Class-EN 1822): H14 Surface area: 3500in2 Media: fiberglass

Filtration optionals: HEPA 14, MTF, NOMEX, PTFE, PTFE ANT, ANT M

Construction options: AB, BX, GX, KDP, GRD

Accessories optionals: P14025, P10867, P13638, P13640, P10866, P12350, P11887, P11606
