Kränzle K2020T 2000 PSI 2.0 GPM Electric Pressure Washer with Hose Reel GFI | PN 98K2020T
| Special Shipping Method: Freight |
Kranzle K2020T Electric Pressure Washer 2000 PSI 2.0 GPM
The K020T cold water electric pressure washer produces 2000 PSI, 1.9 gallons per minute, and is perfect for use in factories or food-processing facilities. Built to the highest standards, the Kranzle pump can self-prime and run dry or on bypass for hours. Comes with a built-in hose reel, accessories holder, and 35 ft power cord with a ground fault interrupter (GFI) to prevent electric shocks. Plenty of power in a small package.
Specifications:
PSI: 2000 max adjustable
GPM: 1.9
Electrical Requirements: 110V, 20A, 60Hz
Weight: 90 lb
Dimensions: 37 inches length, 16 inches width, 16 inches height
Warranty: 1 year commercial
Additional Features:
- Kranzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Ground fault interrupter (GFI)
Accessories Included:
- 50 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
-
Vario-Jet (high-pressure wash/soap) nozzle | Video >>
- Exit-side chemical injection
-
Dirt Killer Turbo Nozzle | Video >>

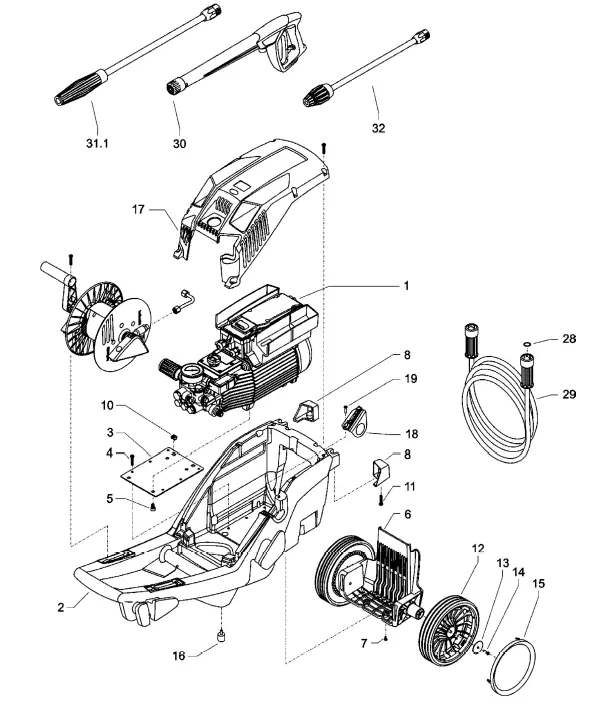

Complete Assembly Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | PMU | 0200496 | ||
2 | Chassis | 48000 | 9748000 | |
3 | Stiffening Plate | 48010 | special order | |
4 | Screw 6.0x30 | 43423 | special order | |
5 | Screw M8x12 | 40122 | special order | |
6 | Axel Holder | 48003 | 9748003 | |
7 | Screw M6x40 | 48012 | special order | |
8 | Stand Left & Right | 48005 | special order | |
10 | Cage Nut M6 | 48011 | special order | |
11 | Screw 5.0x30 | 43418 | 9743418 | |
12 | Wheel d210mm | 44538 | 9744538 | |
13 | Disc 40x6x1.5 | 452167 | special order | |
14 | Plastic Countersunk Screw 5.0x20 | 454211 | special order | |
15 | Hubcap | 46011 | 9746011 | |
16 | Rubber Buffers 20x25 | 48013 | special order | |
17.1 | Front panel, K 2017 | 480911 | special order | |
17.2 | Front Panel, K 2017T | 480912 | special order | |
17.3 | Front PAnel, K 2020 | 480913 | special order | |
17.4 | Front Panel, K 2020 T | 480914 | special order | |
18 | Kink Protection | 48004 | special order | |
19 | Screw 5.0x14 | 43426 | special order | |
28 | O-Ring 9.3x2.4 | 13273 | 9713273 | |
29 | High Pressure Hose NW6 10m (TS-Devices) | 43416 | 9743416 | |
30 | Gun M2000 | 12480 | 9712480 | |
31.1 | Vario-Jet 03 with Lance 400mm | 411562 | 97411562 | |
32 | Dirt Killer 03 Lance 400mm | 410738 | 97410738 |

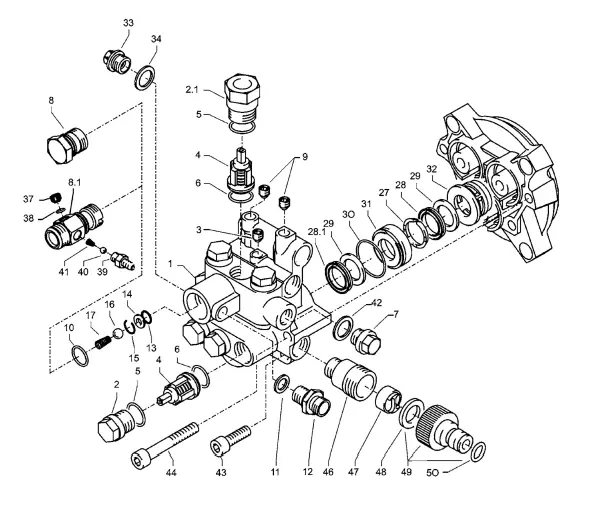

Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing | 421603 | special order | |
2 | Valve Plug | 41714 | 9741714 | |
2.1 | Valve Plug with R1/4" IG | 42102 | special order | |
3 | Plug Tightly M10x1 | 43043 | special order | |
4 | Valves (green) for APG-Pump | 417151 | special order | |
5 | O-Ring 116x2 | 13150 | 9713150 | |
6 | O-Ring 15x2 | 41716 | special order | |
7 | Seal Tightly R1/4" with Waistband | 42103 | 9742103 | |
8 | Output Part (TST) | 40522 | 9740522 | |
8.1 | Output Part (TS) | 405222 | 97450222 | |
9 | Seal Tightly M8x1 | 13158 | 9713158 | |
10 | O-Ring 18x2 | 43446 | special order | |
11 | Aluminum Sealing Ring | 13275 | 9713275 | |
12 | Screw Connection Ermeto R1/4"x8 | 41042 | 9741042 | |
13 | O-Ring 11x1.5 | 12256 | 9712256 | |
14 | Stainless Steel Seat 7mm | 14118 | 9714118 | |
15 | Snap Ring | 12258 | special order | |
16 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
17 | Recoil Spring K" | 141201 | 97141201 | |
27 | Pressure Ring | 41018 | 9741018 | |
28 | Cuff 18x26x4/2 | 41013 | special order | |
28.1 | Fabric Cuff 18x26x4/2 | 410131 | special order | |
29 | Backring 18x26 | 41014 | 9741014 | |
30 | O-Ring 28.3x1.78 | 40026 | 9740026 | |
31 | Leakage Ring 18mm | 41066 | 9741066 | |
32 | Intermediate Ring 18mm | 410152 | 97410152 | |
33 | Sealing Plug R3/8" | 14113 | 9714113 | |
34 | Copper Ring | 40019 | 9740019 | |
37 | Locking Screw M10x1 | 13385 | 9713385 | |
38 | O-Ring 6x1.5 | 13386 | 9713386 | |
39 | Suction Spigot Hose Connection | 13236 | 9713236 | |
40 | Stainless Steel Ball 5.5mm | 13238 | 9713238 | |
41 | Stainless Steel Spring | 13239 | 9713239 |
42 | Copper Ring 14x20x1.5 | 42104 | 9742104 | |
43 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
44 | Hexagon Socket Screw M8x55 | 410171 | 97410171 | |
46 | Suction Connection | 41016 | 9741016 | |
47 | Water Filter | 410462 | 97410461 | |
48 | Rubber Sealing Ring | 410471 | 97410471 | |
49 | Plug In Coupling | 410474 | special order | |
50 | O-Ring | 410473 | special order | |
Cuff Repair Kit 18mm | 410491 | 97410491 | ||
Repair Kit Valves For APG-Pumpe | 417481 | 97417481 |

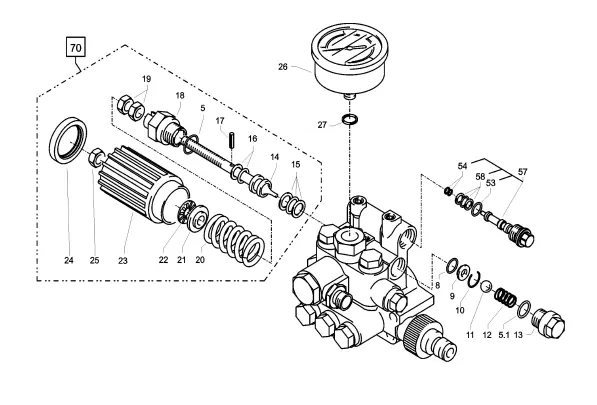

Unloader Valve and Pressure Switch Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Circlip | 13147 | 9713147 | |
11 | Stainless Steel ball | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Locking Screw | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Chip Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nut M8x1 | 14144 | 9714144 | |
20 | Valve Spring Black | 14125 | 9714125 | |
21 | Spring Pressure Washer | 14126 | 9714126 | |
22 | Needle Bearings | 14146 | 9714146 | |
23 | Hand Wheel on the Pump | 40457 | specia order | |
24 | Cap Handwheel on the Pump | 40458 | special order | |
25 | Elastic Stop Nut M8x1 | 14152 | 9714152 | |
26 | Manometer 0-250 bar | 15039 | 9715039 | |
27 | Aluminum Seal Ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 7mm | 121362 | 97121362 | |
57 | Bling Closure Seals | 44551 | 9744551 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
70 | Control Piston Complete with Hand Wheel | 40490 | 9740490 |

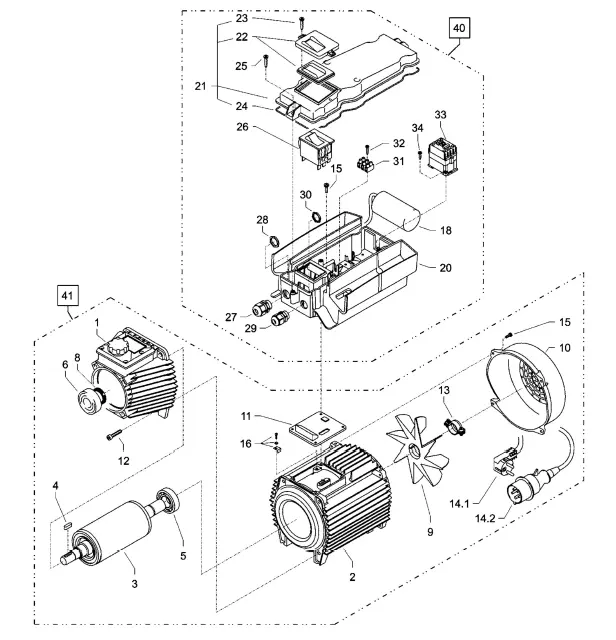

Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing Complete for APG Pumps | 465302 | 97465302 | |
3 | Rotor with Silumin Motor Shaft | 43523 | 9743523 | |
4 | Key 6x6x20 | 414831 | 97414831 | |
5 | Engine Bearing B Side 6205-2Z | 43317 | 9743317 | |
6 | Engine Bearing Shoulder Bearing 7304 | 41027 | 9741027 | |
7 | Tolerance Sleeve | 433301 | special order | |
8 | Oil Seal 25x35x7 | 41024 | 9741024 | |
9 | Motor Fan BG90 | 43319 | 9743319 | |
10 | Fan Hood BG90 | 43320 | special order | |
11 | Flat Gasket | 43030 | special order | |
12 | Hexagon Socket Screw M6x30 | 43037 | special order | |
13 | Clamp for fan wheel with Screws | 43454 | 9743454 | |
15 | Screw M4x12 | 41489 | special order | |
16 | Ground Screw Cpl. | 43038 | special order | |
20 | Switch Box | 480011 | 97480011 | |
21 | Cover for Switch Box | 44512 | 9744512 | |
22 | Clamping Frame with Switch Seal | 43453 | 9743453 | |
23 | Sheet Metal Screw 3.5x9.5 | 41088 | 9741088 | |
24 | Gasket for Lid | 44522 | special order | |
25 | Screw 5.0x20 | 43018 | 9743018 | |
27 | Cable Gland PG 13.5 | 44253 | special order | |
28 | Counternut for PG 13.5 | 44253 | special order | |
29 | Cable Gland PG 11 | 41419 | 9741419 | |
30 | Counternut for PG 11 | 44521 | 9744521 | |
31 | Luster Terminal 3Pin | 43326 | special order | |
32 | Sheet Metal Screw 2.9x16 | 43036 | special order | |
2 | Motor Housing with Stator Alternating Current | 48090 | special order | |
14 | Cable with Plug 20SMP for K2020 without groundfall Interruptor | 43522 | special order | |
14.1 | Cable with plug 20 AMP for Kranzle 2020 wit Groundfall Interruptor | 435221 | special order | |
14.2 | Cable with Plug 15AP for K2017T without Groundfall Interruptor | 43512 | special order | |
14.3 | Cable with Plug 15AMP for 2017T with Groundfall Interruptor | 435121 | special order | |
18 | Capacitor 80uF | 43505 | 9743505 | |
19 | Capacitor Holder | 411161 | special order | |
20 | Screw 5.0x20 | 43018 | 9743018 | |
26 | Switch with 20A Overcurrent Release | 43504 | 9743504 |
Transmission Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Housing Plate for 18mm Plunger | 410202 | 97410202 | |
2 | Oil Seal 18x28x7 | 41031 | 9741031 | |
3 | O-Ring Viton 88x2 | 410211 | special order | |
4 | Plunger Spring | 41033 | 9741033 | |
5 | Spring Pressure Washer 18mm | 41034 | 9741034 | |
6 | Plunger 18mm | 410321 | 9741321 | |
7 | Snap Ring 18mm | 41035 | special order | |
8 | Disc 6.5 degrees (K2017, 2017T) | 41028-6.5 | 9741028-6.5 | |
8.1 | Disc 7.5 degrees (K2020, 2020T) | 41028-7.5 | 9741028-7.5 | |
10 | Axel Grove Ball Bearing in 3 Parts | 43486 | 9743486 | |
12 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
13 | Oil Plug M18x1.5 | 41011 | 9741011 | |
14 | O-Ring 14x2 | 43445 | 9743445 | |
15 | Gasket for Lid | 46531 | special order | |
16 | Cover for Oil Housing | 46532 | special order | |
17 | Screw M5x12 | 41094 | 97410194 | |
18 | Oil Screw Plug with Measuring Stick | 48017 | special order |
Hose Drum Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Side Shell | 48101 | 9748101 | |
2 | Drum Part | 48102 | special order | |
3 | Kink Protection | 40162 | special order | |
4 | Plastic Screw 5.0x20 | 43018 | 9743018 | |
5 | Drive Shaft | 481041 | special order | |
7 | Bearing Block on the Left | 43810 | 9743810 | |
8 | Screw 6.0x30 | 43423 | special order | |
9 | Bearing Block on the Right | 43811 | special order | |
10 | Connecting Pipe | 48014 | 9748014 | |
11 | Water Input Part | 48103 | special order | |
12 | O-Ring 6x0.8 | 40177 | 9740177 | |
13 | Hand Crank | 48108 | 9748108 | |
14 | Screw M5x14 | 40536 | 9740536 | |
15 | Disc 5.3 | 50152 | 9750152 | |
16 | Wall Locking Ring 22mm | 40117 | 9740117 | |
17 | O-Ring 9.3x2.4 | 13273 | 9713273 | |
18 | Sealing Seat | 134101 | special order | |
19 | Suction Spigot Hose Connection | 13236 | 9713236 | |
20 | Stainless Steel Ball 5.5mm | 13238 | 9713238 | |
21 | Stainless Steel Spring | 13239 | 9713239 | |
22 | Input Injector | 40317 | 9740317 | |
23 | O-Ring 10x2 | 43068 | 9743068 | |
24 | O-Ring 6.68x1.78 | 40585 | special order | |
25 | High Pressure Hose 15m NW6 | 48015 | 9748015 | |
26 | Chemical Suction Hose with Filter | 15038 | special order | |
30 | Hose Reel Complete without HD Hose | 48100 | 9748100 |
