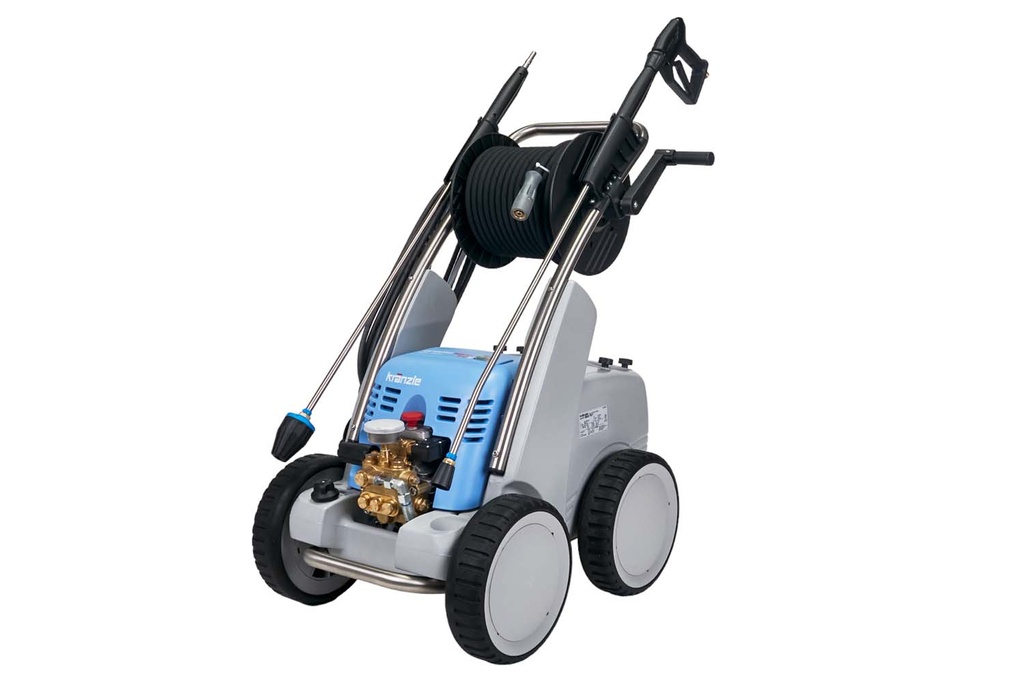

Kränzle K1200TST 2400 PSI 5.0 GPM Electric Pressure Washer | PN 98K1200TST
| Special Shipping Method: Freight |
- Kranzle adjustable pressure unloader
- Steel frame with plastic cover that holds all accessories
- Ground fault interrupter (GFI)
- Auto on / off gun-jet control with 30-second time delay
- Safety shutdown after 20 minutes
- 65 ft wire braided hose on hose reel
- Professional gun-jet lance
- Gauge
- Safety coupler screw connections
- Fan spray nozzle

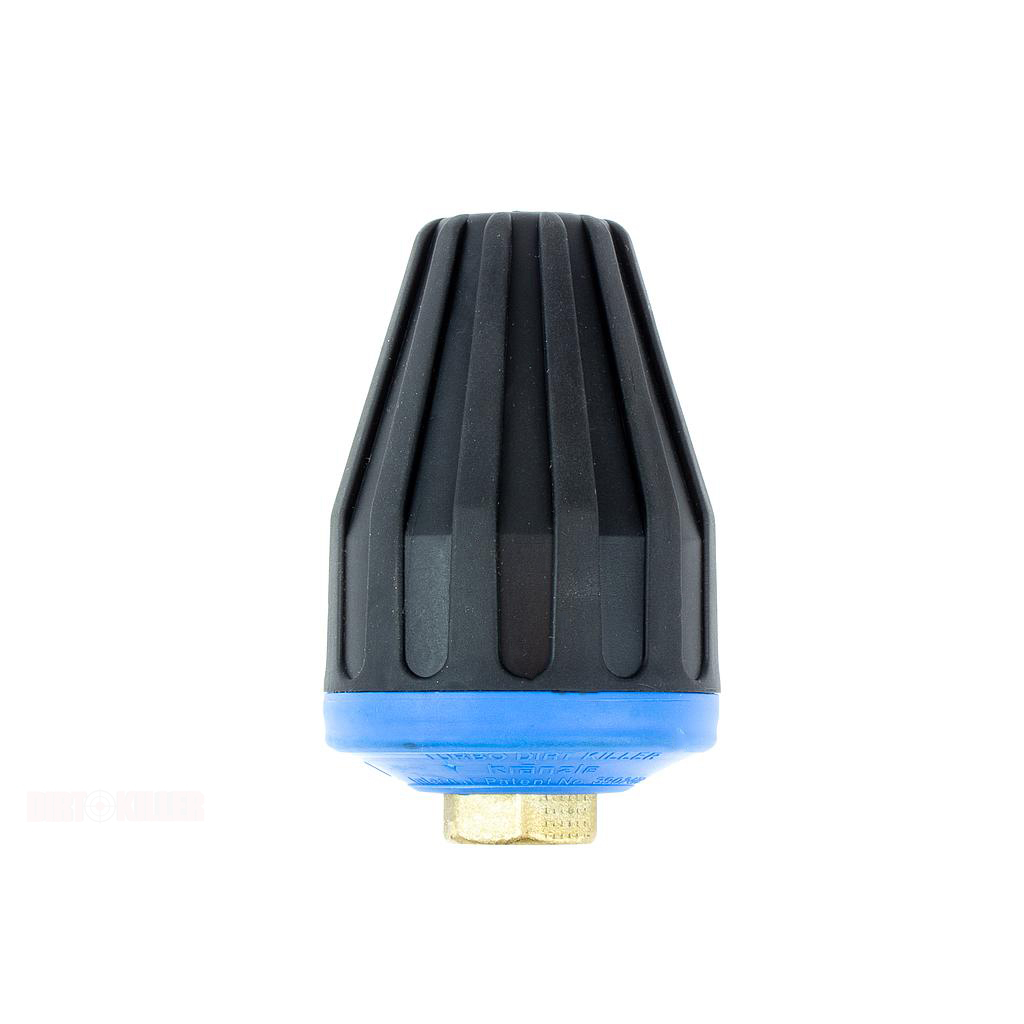

- Dirt Killer Turbo Nozzle
Quadro 1200 220V Electric Pressure Washer
The K1200TST cold water electric pressure washer produces 2400 PSI, 5.0 gallons per minute of heavy-duty industrial cleaning power and is the perfect choice for use in a wash bay to maintain vehicles or wash heavy machinery. Its industrial-grade Kranzle pump can run dry or on bypass for hours, won't freeze and is self-priming. This unit also includes an automatic on / off gun-jet control with a 30-second time delay and safety shutdown after 20 minutes. These safety features help prolong the life of the pump and prevent accidents.
Specifications:
PSI: 2400 max adjustable
GPM: 5.0
Electrical Requirements: 220V, 25A, 60Hz, 3-phase
Weight: 196 lb
Dimensions: 31 inches length, 23 inches width, 40 inches height
Warranty: 1 year commercial
Additional Features:
Accessories Included:
Complete Assembly Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Motor Pump without Electronics for Quadro 1200TST | 426223 | special order | |
2 | Push Bar | 42601 | special order | |
3 | Star Grip Nut M8 | 42619 | special order | |
4 | Plug | 42613 | special order | |
5 | Water Tank | 42603 | special order | |
6 | Lance Rest | 42604 | special order | |
7 | Cable Winding Below | 42611 | special order | |
8 | Strain Relief | 43431 | special order | |
9 | Sheet Metal Screw 3.5x12 | 40290 | special order | |
10 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
11 | Disc 21 DIN125 | 40207 | special order | |
12 | Screw M8x50 DIN912 | 42620 | special order | |
13 | Disc 8.4 Din125 | 50186 | special order | |
14 | Cable Winding at the Top | 42612 | special order | |
15 | Rubber Buffer 25x25 | 44227 | special order | |
16 | Wheel | 44017 | special order | |
17 | Splint 5x28 DIN 94 | 42614 | special order | |
18 | Hubcap | 44018 | special order | |
19 | Front Panel Quadro 1200TST | 426093 | special order | |
20 | Lance Holder | 42610 | special order | |
21 | Sheet Metal Screw 3.5x16 DIN7981 | 44161 | special order | |
22 | Chassis | 42602 | special order | |
23 | Disc 8.4 DIN9021 | 41409 | special order | |
24 | Elastic Stop Mutter M8 | 41410 | 9741410 | |
25 | Power cable 8m | 44036 | special order | |
26 | Hose Reel kpl. | 412596 | special order | |
27 | Chemical Suction Hose (Fabric) with Filter | 42621 | special order | |
28 | Fabric Hose 0.4m | 42622 | special order | |
29 | Hose Clamp 9-9 | 44054 | special order | |
30 | Housing Detergent Valve | 44145 | special order | |
31 | O-Ring 5x1.5 (viton) | 44150 | special order | |
32 | O-Ring 28.24x2.62 | 44149 | special order | |
33 | Regulating Piston Chemical Valve | 44147 | special order | |
34 | Stainless Steel Spring 1.8x15x15 | 44148 | special order |
35 | Cover for Chemical valve | 44146 | special order | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | Sheet Metal Screw 3.5x19 | 44162 | special order | |
38 | Rotary Handle Chemical Valve with Cover Cap | 44151 | special order | |
39 | Lance with FlatJet Nozzle for 1200TST | 12.392D2507 | special order | |
40 | Starlet Pistol with Extension | 123202 | 97123202 | |
41 | Turbo Killer 07 at Quadro 1200 TST | 410727 | special order | |
42 | High Pressure Hose 20m NW8 | 41083 | 9741083 | |
43 | O-Ring 13x2.6 | 13272 | 9713272 | |
44 | Connecting Hose with Angle | 426251 | 97426251 | |
45 | Disc 8mm for Wheel | 44246 | special order | |
46 | Threaded Pin M6x55 | 426172 | special order | |
47 | Check Valve for Chemical Suction Hose | 44240 | 9744240 | |
48 | Chemical Valve Complete Pos. 30-37 | 44052 | 9744052 | |
49 | Water Filter | 42633 | special order |
Brake Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Base Plate | 42615 | special order | |
2 | Brake Pedal | 44022 | special order | |
3 | Brake Lever | 44023 | special order | |
4 | Brake Pad | 44024 | 9744024 | |
5 | Pin 6x50 | 44035 | special order | |
6 | Starlock Cap 8mm | 44165 | special order | |
7 | Pin 6x40 | 440351 | special order | |
8 | Spacer Ring | 42626 | special order | |
9 | Hexagon Screw M6x16 | 50173 | special order | |
10 | Washer DIN125-6.3 | 50189 | special order |
Water Inlet Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Nut R3/4" | 46258 | 9746258 | |
2 | Inspection Cover | 42605 | special order | |
3 | Star Grip Nut M6 | 42619 | special order | |
6 | Seal for Float Valve | 46261 | special order | |
7 | Float Valve | 46250 | 9746250 | |
8 | Threaded Pin M6x40 | 426171 | special order | |
9 | Inlet Hose | 42640 | special order | |
15 | Connecting Hose | 426251 | 97426251 | |
16 | O-Ring 15x1.5 | 12256 | 97121291 | |
16.1 | O-Ring 13x2.6 | 13272 | 9713272 | |
17 | Water Filter | 42633 | special order |
Pump Motor Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Starter 112 5.5kW 400V/50Hz | 40540 | special order | |
2 | A-Bearing Flange | 40530 | special order | |
3 | Rotor 112 (400V/50Hz) | 405315 | special order | |
4 | Fan Wheel for BG 112 | 40532 | 9740532 | |
5 | Fan Hood BG 112 | 40533 | 9740533 | |
6 | V-Seal | 40545 | special order | |
7 | Flat Gasket | 43030 | special order | |
10 | Tapered Roller Bearings 31306 | 40103 | 9740103 | |
11 | Oil Seal 35x47x7 | 40080 | 9740080 | |
12 | Key 8x7x28 | 40459 | special order | |
13 | Ball Bearings 6206-2Z | 40538 | special order | |
14 | Hexagon Socket Screw M6x30 | 43037 | special order | |
19 | Screw M4x12 | 41489 | special order | |
20 | Clamp for Fan Wheel 112 | 40535 | special order | |
21 | Screw M4x12 | 41489 | special order | |
22 | Grounding Screw kpl. | 43038 | special order | |
23 | Switch with Push Buttons | 42644 | 9742644 | |
24 | Plastic Screw 4.0x16 | 43417 | 9743417 | |
25 | Stand for Switch | 42608 | special order | |
26 | Plastic Screw 5.0x25 | 41414 | 9741414 | |
28 | Plastic Screw 3.5x20 | 43415 | 9743415 | |
29 | Chandelier Clamp 5-Pol | 433261 | 97433261 | |
30 | Protection (contactor) 100-C12KN10 3x400V 50/60 Hz | 460051 | 97460051 | |
31 | Formwork Box Lower Part | 42606 | special order | |
32 | Switch Box Cover | 42607 | special order | |
33 | Control Board Shutdown Delay 400V/ 50Hz | 42563 | 9742563 |
34 | Terminal Frame with Switch Seal | 43453 | 9743453 | |
36 | Sheet Metal Screw 3.5x16 | 44161 | special order | |
37 | Screw Connection PG16 | 414191 | special order | |
38 | Seal for Switch Box Cover | 426071 | special order | |
39 | Lock Nut for PG9- Screw Connection | 410871 | special order | |
40 | Lock Nut for PG16- Screw Connection | 44119 | special order | |
41 | PG9- Screw Connection | 43034 | 9743034 | |
42 | Overcurrent Release 3-polig 11.3-16A | 42641 | 9742641 | |
50 | Motor Complete without Switch | 24060 | special order | |
51 | Switch Box Complete Pos. 23-42 | 42631 | special order |

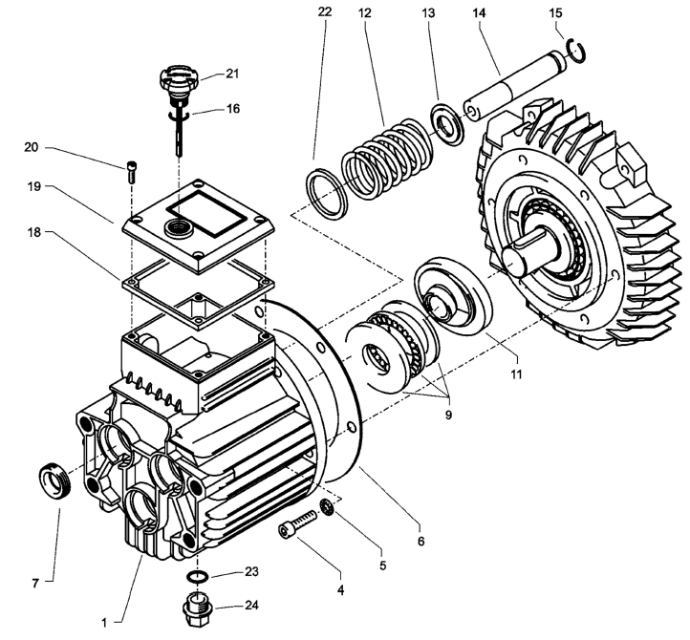

Pump Drive Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Transmission Housing | 40501 | 9740501 | |
4 | Hexagon Socket Screw M8x30 | 410361 | 97410361 | |
5 | Lock Washer | 40054 | 9740054 | |
6 | Flat Gasket | 40511 | special order | |
7 | Oil Seal 20x30x7 | 400441 | 97400441 | |
9 | Axial Cylindrical Roller Bearings AQ-Pump | 40524 | 9740524 | |
11.3 | Swashplate AQ 12.75 at Quadro 1200TST + 1200 TS | 40523-12.75 | special order | |
| 12 | Plunger Spring | 40506 | 9740506 | |
13 | Spring Pressure Disc | 40510 | 9740510 | |
14 | Plunger 20mm | 40505 | 9740505 | |
15 | Snap Ring | 40048 | special order | |
16 | O-Ring 14x2 | 43445 | 9743445 | |
18 | Flat Gasket | 410193 | 97410193 | |
19 | Flat Lid for Oil Housing | 410231 | 97410231 | |
20 | Hexagon Socket Screw M5x12 | 410194 | 97410194 | |
21 | Oil Dipstick AQ | 42623 | special order | |
22 | Support Disc for Plunger Spring | 40513 | 9740513 | |
23 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
24 | Oil Drain Plug R 3/8" | 42019 | 9742019 | |
Transmission Housing Complete | 40514 | 9740514 |
Unloader Valve and Pressure Switch
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
5 | O-Ring 16x2 | 13150 | 9713150 | |
5.1 | O-Ring 13.94x2.62 | 42167 | 9742167 | |
8 | O-Ring 11x1.44 | 12256 | 9712256 | |
9 | Stainless Steel Seat | 14118 | 9714118 | |
10 | Retaining Ring | 13147 | 9713147 | |
11 | Stainless Steel Ball | 13148 | special order | |
12 | Stainless Steel Spring | 14119 | 9714119 | |
13 | Screw Plug | 14113 | 9714113 | |
14 | Control Piston | 14134 | 9714134 | |
15 | Parbaks 16mm | 13159 | 9713159 | |
16 | Parbaks 8mm | 14123 | 9714123 | |
17 | Chip Pin | 14148 | 9714148 | |
18 | Piston Guide Special | 42105 | 9742105 | |
19 | Lock Nut | 14144 | 9714144 | |
20 | Valve Spring Red quadro 800 | 141251 | 97141251 | |
20.1 | Valve Spring Black quadro 1000 and 1200 | 14125 | 9714125 | |
21 | Spring Pressure Disc | 14126 | 9714126 | |
22 | Needle Bearing | 14146 | 9714146 | |
23 | Handwheel | 14147 | 9714147 |
25 | Elastic Stop Mutter M8x1 | 14152 | 9714152 | |
26 | Manometer 0-400 Bar | 150394 | 97150394 | |
27 | Aluminium Sealing Ring | 13275 | 9713275 | |
50 | O-Ring 3.3x2.4 | 12136 | 9712136 | |
51 | Guide Part Control Lever | 150091 | special order | |
52 | O-Ring 13x2.6 | 15017 | 9715017 | |
53 | O-Ring 14x2 | 43445 | 9743445 | |
54 | Parbaks 4mm | 121362 | 97121362 | |
55 | Support Disc | 150151 | special order | |
56 | Stainless Steel Spring | 15016 | 9715016 | |
57 | Control Rod | 150102 | 97150102 | |
58 | Parbaks 7mm | 15013 | 9715013 | |
59 | Plug M10x1 (drilled through) | 133851 | special order | |
60 | Housing Electrical Switch | 15007 | special order | |
61 | Rubber Sleeve PG9 | 15020 | special order | |
62 | Disc PG9 | 15021 | special order | |
63 | Screw Connection PG9 | 15022 | special order | |
64 | PVC Cable 2x 1.0mm | 42505 | special order | |
65 | Sheet Metal Screw 2.8x16 | 15024 | special order | |
66 | Electrical Switch Cover | 15008 | special order | |
67 | O-Ring 44x2.5 | 15023 | special order | |
68 | Micro Switch | 44262 | special order | |
69 | Cylinder Head Screw M4x20 | 15025 | special order | |
70 | Hexagon Nut M4 | 15026 | special order | |
72 | Compression Spring 1x8.6x30 | 40520 | special order |
Control Piston Complete Quadro 800 | 434441 | special order | ||
Control Piston Complete Quadro 1000-1200 | 43444 | 9743444 | ||
Pressure Switch Mechanics Repair Kit | 150093 | 97150093 | ||
Pressure Switch Complete | 413005 | 97413005 |
Valve Housing Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Valve Housing with Integrated Pressure Switch | 405035 | special order | |
2 | O-Ring 18x2 | 40016 | 9740016 | |
3 | Inlet/Outlet Valve | 42024 | 9742024 | |
4 | O-Ring 21x2 | 42025 | 9742025 | |
5 | Valve Plug | 42026 | 9742026 | |
5.1 | Valve Plug with R 1/4" | 420262 | 97420262 | |
6 | Retaining Ring | 40032 | 9740032 | |
7 | Hexagon Socket Screw M12x45 | 40504 | 9740504 | |
8 | Hose Nipple R 3/8"x6 | 42634 | special order | |
9 | Hose Clamp 7-10 | 44054 | special order | |
10 | Chemical Suction Hose with Filter | 42621 | special order | |
11 | Angle 12Lx12L | 42630 | special order | |
13 | Fabric Cuff | 40023 | special order | |
14 | Back Ring 20mm | 40025 | 9740025 | |
15 | O-Ring 31.42x2.62 | 40508 | 9740508 | |
16 | Leakage Ring 20x36x13.3 | 40509 | 9740509 | |
17 | Copper Sealing Ring 21x28x1.5 | 42039 | 9742039 | |
18 | Rubber Sleeve | 40512 | 9740512 | |
19 | Screw Plug R 1/2" | 42032 | 9742032 | |
20 | Spacer Ring with Support | 40507 | 9740507 | |
21 | Aluminum Sealing ring for Quadro TS | 13275 | 9713275 | |
22 | Sealing Plug at Quadro TS | 13181 | special order | |
23 | Through Ring 20mm | 40021 | 9740021 |
24 | Intermediate Ring 20mm | 40516 | 9740516 | |
25 | O-Ring 11x1.5 | 12256 | 9712256 | |
26 | Stainless Steel Seat 7mm | 14118 | 9714118 | |
27 | Snap Ring | 13147 | 9713147 | |
28 | Pump Output Part R1/4"x12 | 44215 | special order | |
29 | Copper Sealing Ring 17x22x1.5 | 40019 | 9740019 | |
30 | Plug 3/8" | 40018 | 9740018 | |
31 | Sealing Plug M10x1 | 43043 | special order | |
32 | Sealing Plug M8x1 | 13158 | 9713158 | |
33 | Output Part for quandary 800, 1000, 1200TST | 40522 | 9740522 | |
33.1 | Output Part M22x1.5 | 405221 | 97405221 | |
34 | Stainless Steel Ball 10mm | 12122 | 9712122 | |
35 | Check Spring K" | 141201 | 97141201 | |
37 | O-Ring 18x2 | 43446 | special order | |
40 | Water Inlet R3/8" AG | 41016 | 9741016 | |
Valve Housing | 405036 | 97405036 | ||
Repair Kit Cuffs | 400651 | 97400651 | ||
Repair Kit Cuffs without Brass Parts | 40517 | 9740517 | ||
Valve Repair Kit | 400621 | 97400621 |

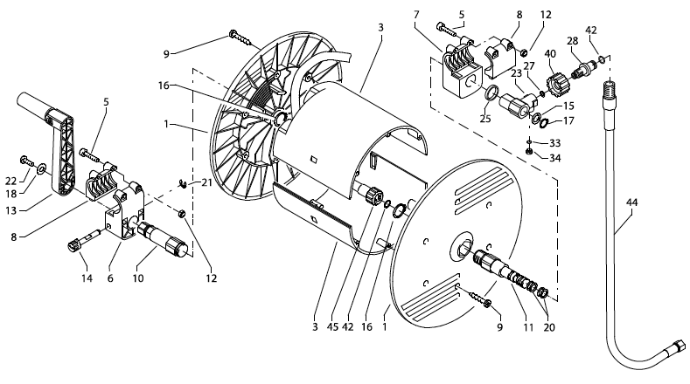

Hose Reel Spare Parts
# | Part Name | German Part # | Kranzle USA Part # | Buy Now |
1 | Side Shell Hose Guide | 40302 | special order | |
2 | Side Shell Water Guide | 40301 | special order | |
3 | Drum Lower Part | 40304 | special order | |
4 | Drum Top | 40303 | special order | |
5 | Hexagon Socket Screw M4x25 | 40313 | special order | |
6 | Bearing Block with Brake | 40306 | special order | |
7 | Bearing Block Left | 40305 | special order | |
8 | Clamp Piece | 40307 | special order | |
9 | Plastic Screw 5.0x20 | 43018 | 9743018 | |
10 | Drive Shaft | 40310 | 9740310 | |
11 | Wave Water Flow | 40311 | special order | |
12 | Elastic Stop Mutter M4 | 40111 | special order | |
13 | Foldable Hand Crank | 403200 | special order | |
14 | Locking Bolt | 40312 | special order | |
15 | Disc MS 16x24x2 | 40181 | 9740181 | |
16 | Shaft Retaining Ring 22mm | 40117 | 9740117 | |
17 | Shaft Retaining Ring 16mm | 40182 | 9740182 | |
18 | Washer 6.4 | 50189 | special order | |
20 | Parbaks 16mm | 13159 | 9713159 | |
21 | Lock Washer 6DIN6799 | 40315 | special order | |
22 | Screw M5x10 | 43021 | 9743021 | |
23 | Swivel Joint | 40167 | 9740167 | |
24 | Connecting Part | 40308 | special order | |
25 | Spacer Ring | 40316 | 9740316 | |
27 | O-Ring 6.5x2 | 405852 | special order | |
28 | Connecting Piece | 40308 | special order | |
33 | O-Ring 6x1.5 | 13386 | 9713386 | |
34 | Plug M10x1 | 13385 | 9713385 | |
40 | Union Nut | 132762 | special order | |
42 | O-Ring 9.3x2.4 | 13275 | 9713275 | |
44 | Connecting Hose | 42624 | special order | |
45 | High Pressure Hose | 41083 | 9741083 | |
Hose Reel Complete without HD Hose | 412596 | special order |
