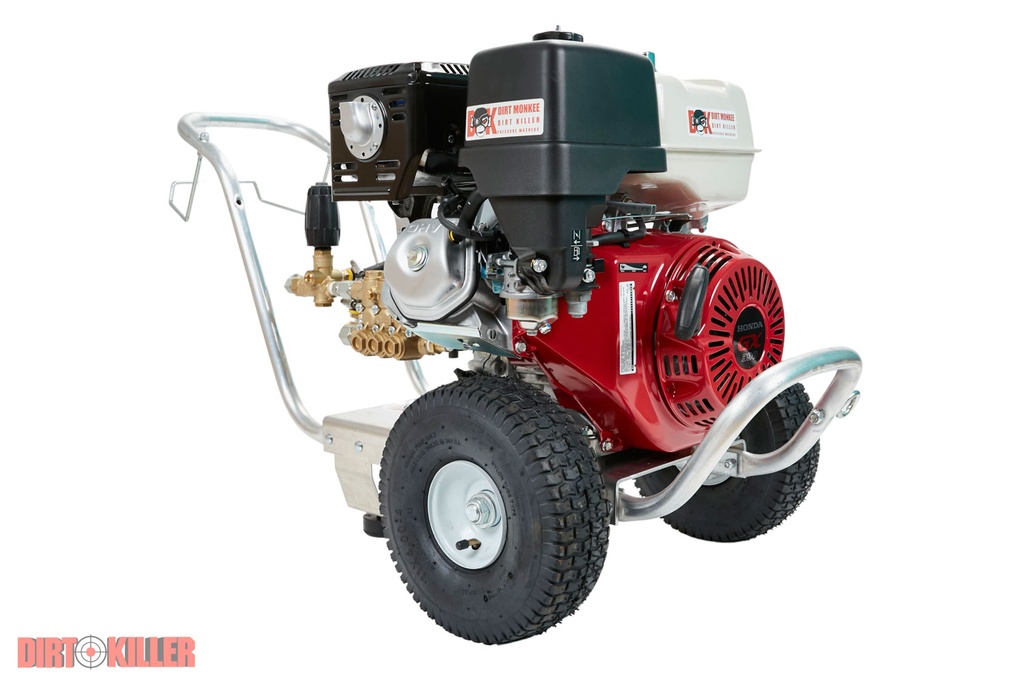

Dirt Monkee Electric Start Honda GX390 5 GPM 3000 PSI DM-EHC390C53 | PN 98006631-E
| Special Shipping Method: Freight |
Powered by a Honda GX390 key start engine paired with a direct drive Comet ZWD5030 model with an external unloader, this unit is perfect for mobile commercial use.
Resting on aircraft grade aluminum trolley cart frame this Dirt Monkee is ready to get to work.
This machine comes standard with the following accessories pack-
(5) flat tips -
(1) 0* red tip
(1) 15* yellow tip
(1) 25* green tip
(1) 45* white tip
(1) 65* black soap tip

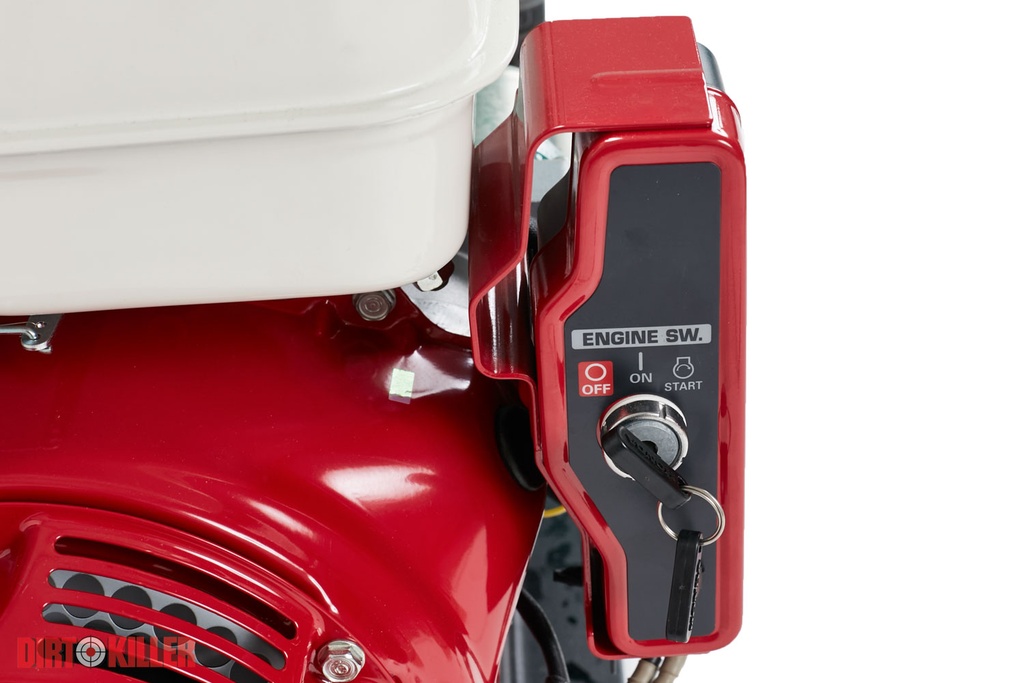

Electric start (key start) Honda GX390 includes 18.5 amp charging system and rectifier making it perfectly suited to support 12V accessories such as a 12v burner, 12v pumps, or 12v LED's
Comet ZWD5030 High Pressure Pump Overview
Dirt Killer offers the Comet ZWD5030 direct drive high pressure pump with custom plumbing configurations best suited to a contractors needs.
Watch as Josh Lee, The Original Josh explains where this pump is best used and when it makes sense to select this replacement pump for your engine.
Frame Assembly Spare Parts
Part Image | Part Name | Part Number | Buy Now |

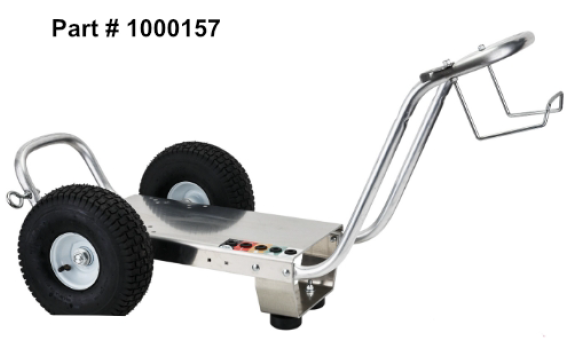

| Frame Small Aluminum with Wheels With Hose and Gun Hooks | 1000157 | |
| Tire Wheel Assembly 11"x4.00/4" for 3/4" Shaft | 4800017 | |
| Battery Box | 4100111 | |
| General Plump #6.0 Nozzle Pack | 9800386 |

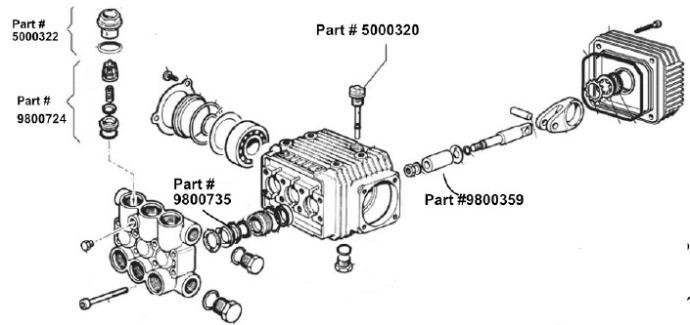

ZWD5030 Pump Assembly Spare Parts
Part Number | Part Name | Buy Now |
5400221 | VRT-3 Unloader 10.5gpm | |
5100211 | 3/8' Stainless Steel Male Socket | |
5500026 | 1/2" Clear Water Inlet Strainer with Bypass Ports | |

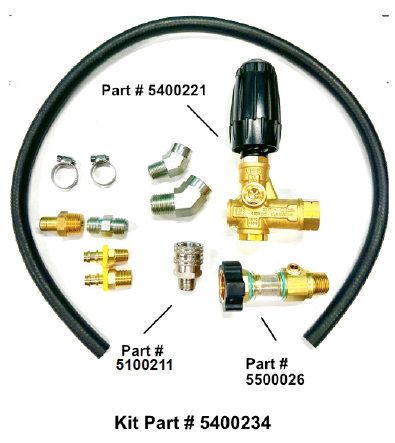

5400234 | General Pump Unloader Made Ready Kit |
Part Image | Part Name | Part Number | Buy Now |
| Comet Pump Oil | 8100119 | |

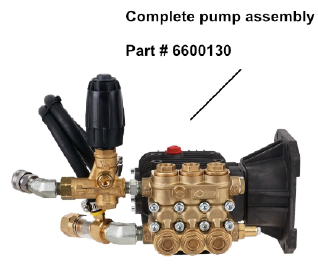

| Direct Drive Made Ready Comet Pump | 6600130 |

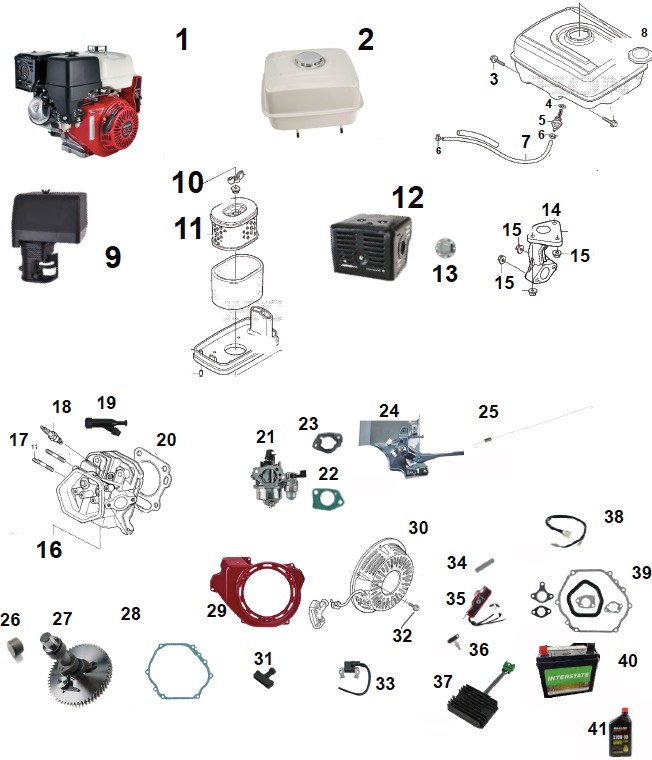

GX390E Engine Spare Parts
# | Description | Buy Now | |
1 | 6600010-E | Replacement Engine | |
2 | 3600138 | Fuel Tank | |
3 | 3600231 | Fuel Tank Bolt | |
4 | 3600123 | Fuel Tank O-Ring | |
5 | 3600121 | Fuel Tank Filter | |
6 | 3600167 | Fuel Line Clip | |
7 | 3600203 | Fuel Tube | |
8 | 3600210 | Gas Filler Cap | |
9 | 3600148 | Air Filter Housing Assembly | |
10 | 3600141 | Wing Nut for Air Filter | |
11 | 5500107 | Air Filter | |
12 | 3600139 | Muffler | |
13 | 3600194 | Exhaust Deflector | |
14 | 3600126 | Riser Pipe | |
15 | 3600162 | Muffler Nuts | |
16 | 3600222 | Cylinder Head Assembly |
17 | 3600204 | Muffler Stud Bolt | |
18 | 4800104 | Spark Plug | |
19 | 3600132 | Spark Plug Cap | |
20 | 3600146 | Head Gasket | |
21 | 3600205 | Carburetor Assembly | |
22 | 3600125 | Carburetor Gasket | |
23 | 3600229 | Carburetor Spacer | |
24 | 3600180 | Throttle Control Assembly | |
25 | 3600104 | Throttle Return Spring | |
26 | 3600227 | Valve Rotator | |
27 | 3600216 | Cam Shaft | |
28 | 3600176 | Crankcase Gasket | |
29 | 3600181 | Motor Fan Shroud Cover | |
30 | 3600111 | Recoil Assembly | |
31 | 3600207 | Handle/Grip for Recoil | |
32 | 3600130 | Flange Bolt for Recoil Assembly | |
33 | 3600144 | Ignition Coil Assembly |
34 | 3600157 | Shaft Key for 1" Shaft | |
35 | 3600211 | Key Box | |
36 | 3600159 | Key | |
37 | 3600128 | Rectifier | |
38 | 3600129 | Rectifier Sub Harness | |
39 | 3600134 | Gasket Kit | |
40 | 6000102 | 12V Lawn&Garden Battery | |
41 | 8100153 | Engine Oil 10W-30 |
