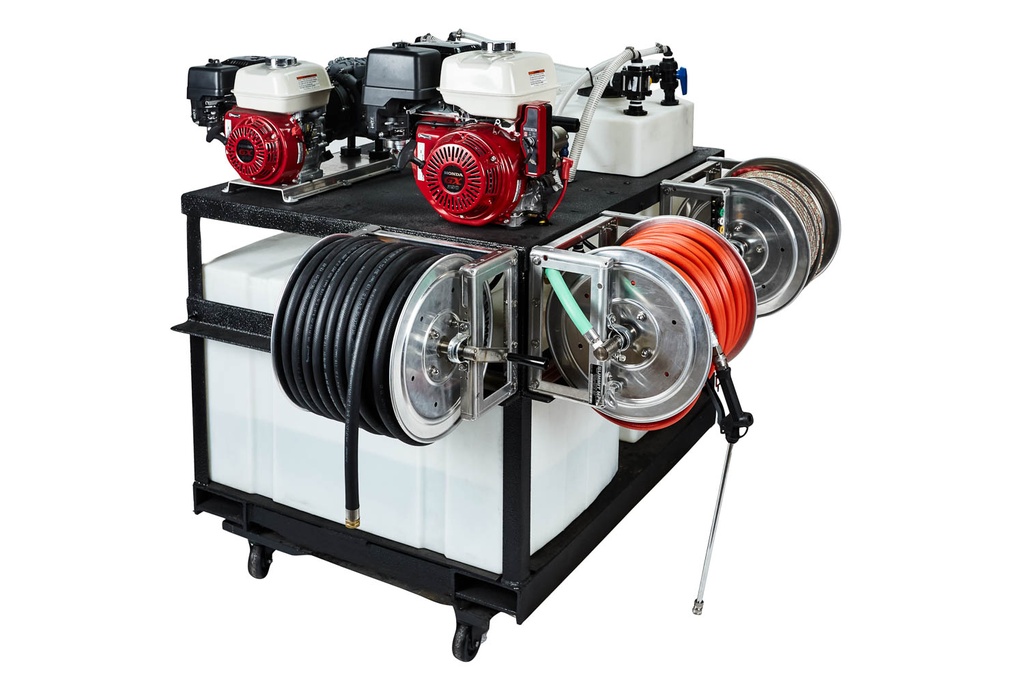

Aluminum Table Top Drop Skid With Key Start GX390 Kranzle AQ Pump and GX200 Comet P36 Combo | PN 9800497

Pick Up Truck Drop Skid Pressure Washer Rig

The Aluminum Table Top Drop Skid is designed to be placed in the bed of a pickup truck using a fork lift or similar lifting device. Once in place the drop skid is intended to be strapped around the water tank to the back of the truck, and around the chemical tanks to the front of the truck. From there the operator has access to the following-

1- 100 Gallon Water tank
2- 50 gallon DOT approved chemical tanks
1- Electric start Honda GX (LX Series) 390 with 18.5 Amp charging system powering a gear reduced Kranzle AQ High Pressure Pump
1- Pull start Honda GX200 powering a gear driven Comet P36 low pressure diaphragm pump
1 – Aluminum hose reel holding 125’ of ¾” contractor grade garden hose
1- Aluminum hose reel holding 275’ of ½” agricultural hose
1- Aluminum hose reel holding 250’ of 3/8” high pressure hose
2- Stainless steel lance holders
1- 36” gunjet assembly
1- 12” gunjet assembly
1- low pressure trigger assembly
1- 12V battery and battery box

Low pressure P36 system operates at 5.0 GPM @ 150 PSI at the nozzle. When used in conjunction with the two chemical tanks you have up to 100 gallons of chemical storage at your disposal. High pressure system reaches 4.5 GPM @ 3000 PSI at the nozzle pulling from the single 100 gallon water tank. System can soap and rinse up to three stories under optimal working conditions.

Unit only ships freight and is recommended to load into a truck with a minimum payload of 2250 lbs
