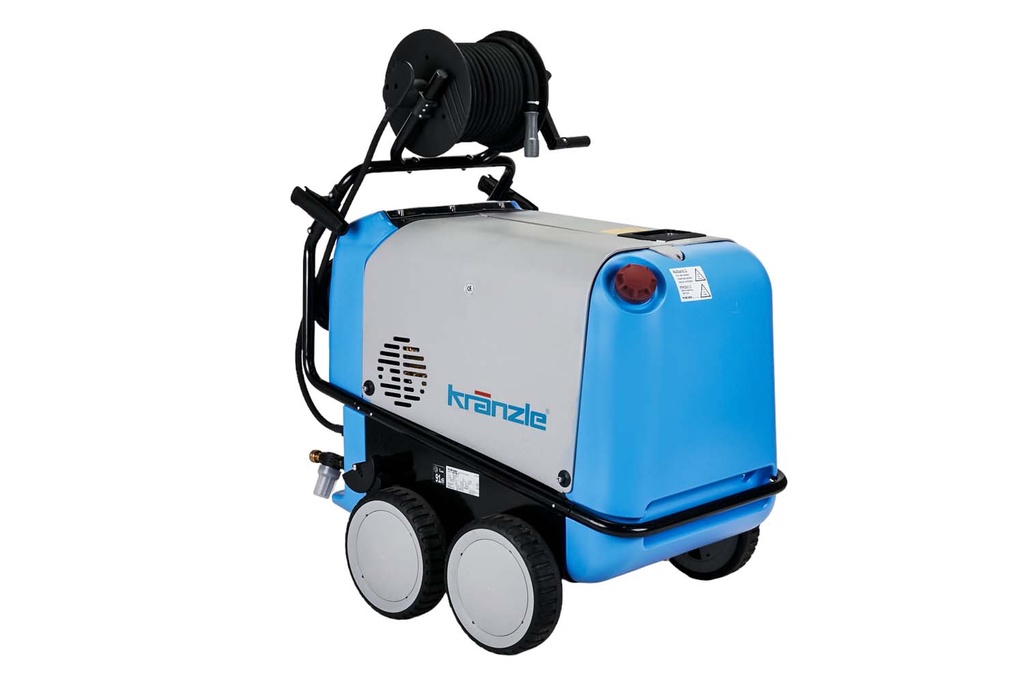

Kränzle Therm K2175TST 2500 PSI 3.3 GPM Hot Water Electric Pressure Washer | PN 9800245

$ 8,401.00 8401.0 USD $ 11,761.00

$ 11,761.00

Not Available For Sale

($ 8,401.00 / EA)
  • Special Shipping Method

This combination does not exist.

Contact Us
Special Shipping Method: Freight

    Kranzle K2175TST 2500 PSI 3.3 GPM Hot Water Electric Pressure Washer

    The K2175TST hot water electric pressure washer produces 2500 PSI, 3.3 gallons per minute of power, making it an excellent choice for farms, factories, vehicle wash bays and other heavy-duty industrial cleaning applications. Equipped with a high-quality Kranzle pump, this unit is self-priming, can run dry, and has multi-hour bypass capability.

    As part of the Therm series, the K2175TST uses a downdraft coil-burner assembly which makes it more efficient that top-fed coil units. This model also has several safety features including an automatic on / off gun-jet control, safety shutdown and optical flame monitoring system.

    Specifications:

    PSI: 2500 max adjustable

    GPM: 3.3

    Electrical Requirements: 220V, 25A, 60Hz, single-phase

    Weight: 484 lb

    Dimensions: 41 inches length, 32 inches width, 47 inches height

    Warranty: 1 year commercial

    Additional Features:

    • Kranzle adjustable pressure unloader
    • Inlet water filter
    • Schedule 80 heating coil
    • Precise digital temperature control
    • Flame safety monitor
    • Steam-capable
    • Downdraft fuel-efficient 220V burner
    • Steel frame with plastic cover that holds all accessories
    • Auto on / off gun-jet control with 30-second time delay
    • Safety shutdown after 20 minutes

    • Accessories Included:

    • 65 ft wire braided hose on hose reel
    • Professional gun-jet lance
    • Gauge
    • Safety coupler screw connections
    • Fan spray nozzle
    • Industrial Dirt Killer Turbo Nozzle

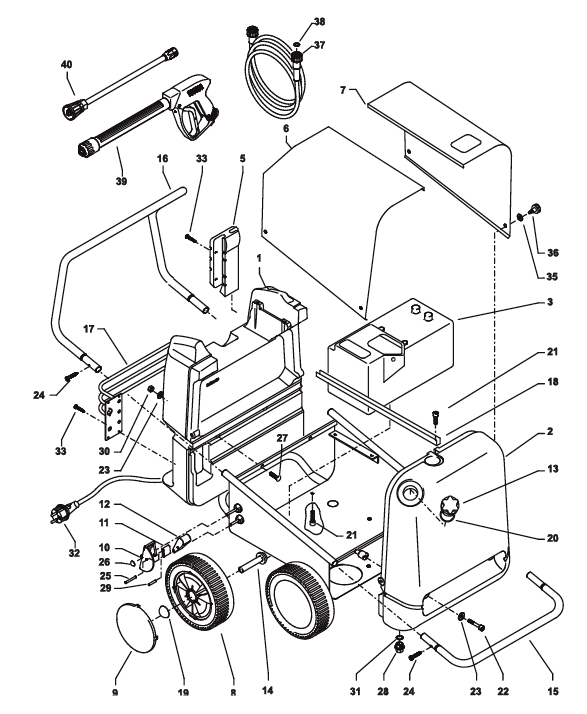

Complete Assembly Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Cockpit

44351


special order

2

Fuel Tank

44004

9744004

buy now

3

Water Tank

44009


special order

5

Lanzer Cooker

44008


special order

6

Hood Right

44032

9744032

buy now

7

Hood Left

44031

9744031

buy now

8

Wheel

44017


special order

9

Red Cap

44018


special order

10

Brake Pedal

44022


special order

11

Brake Lever

44023


special order

12

Brake Pad

44024

9744024

buy now

13

Tank Cap with O-Ring

44005

9744005

buy now

14

Chassis

44001


special order

15

Front Bow

44002


special order

16

Push Bar

44003


special order


17

Reeling

440161


special order

18

Top Strut

44019


special order

19

Starlock Cap 20mm

40142

9740142

buy now

20

O-Ring 70x5

44020


special order

21

Hexagon Socket Screw M8x12

40122


special order

22

Hexagon Socket Screw M8x40

44033


special order

23

Washer 8.4 DIN9021

41409


special order

24

Screw 3.9x16

12150


special order

25

Pen 6x50

44035


special order

26

Starlock Cap 8mm

44165


special order

27

Carriage Bolt M8x35

41408


special order

28

Fuel Tank Drain Plug

440041


special order

29

Pen 6x40

440351


special order


30

Elastic Stop Mutter M8

41410

9741410

buy now

31

Seal for Oil Drain Plug

410471

97410471

buy now

33

Plastic Screw 6x30

434231


special order

35

Disc

44034

9744034

buy now

36

Star Grip

501681

97501681

buy now

37

High Pressure Hose NW8 10m

41081

9741081

buy now

37.1

High Pressure Hose NW8 20m

443812

97443812

buy now

38

O-Ring 9.3x2.4 Viton

132731


special order

39

Pistol with Extension Starlet II

123202

9712519

buy now

40

Lance with Flat jet Nozzle 25045

12392-D25045


special order




Switch Box for Electronics Spare Parts

#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Electrical Box

448071


special order

2

Cover for Electrical Bx Therm 2175-1

470141-2175-1


special order

3

Front Panel Manometer

443751


special order

4

Cable Winding

44822

9744822

buy now

5

Screw 5x25

414141


special order

6

Stand for Switch

44810


special order

7

Screw 5.0x14

43426


special order

8

Bock for Thermostat

47012


special order

9

Seal for Thermostat

47013


special order

10

Seal for Switch

44817


special order

11

Switch

44835

9744835

buy now

12

Nut M4

40111


special order

13

Seal for Lid Overtemp

441821


special order

14

Control Panel for Control Board

44257


special order

15

Cover for Over temperature release

44361


special order


16

Control Board Over Temperature Trigger

44370


special order

17

Screw 3.5x8

43430


special order

18

Screw 4.0x16

43417

9743417

buy now

19

Grounding Terminal

44839


special order

21

Disc 4.3 DIN9021

43472


special order

22

Control Board 230V/ 50/60 Hz

443591


special order

23

Engine Protection C30 for 3x 230V/ 50/60Hz

444000

97444000

buy now

24

Screw 4.0x25 with Washer

43425


special order

25

Thermal Relay 193-EEEB 5.4-27A

444010

97444010

buy now

26

Cable Trumpet with Strain Relief

44819


special order

27

Strain Relief Clamp

43431


special order

28

Screw 3.5x14

44525


special order

30

PG16-Screw 1 Connection

414191


special order

31

PG16-Screw 2 Connection Bushings

44132


special order

32

PG16-Screw 3 Connection Bushings

44133


special order

33

Manometer

150391


special order


34

Fuel Pressure Gauge with Bracket

44362


special order

35

Connectors R1/4" IG-6DN

44409


special order

36

Sealing Ring 8.3x11.3x2

132751


special order

37

Fine Fuse 1.25 A

44676

9744676

buy now

38

Fine Fuse 3.14 A

441663


special order

39

Fine Fuse 630 mA

442002

97442002

buy now

40

Holding Bridge

44352


special order

41

Screw M5x10

43021

9743021

buy now

42

Fine Fuse 32 mA

442001

97442001

buy now

45

Grommet for Capillary Tube

44823


special order

47

Electrical Box Seal

44838


special order

48

Clamp for Manometer

44049

9744049

buy now

49

Connection Sleeve Manometer

44136

9744136

buy now

50

Electrical Box Cover

47015

9747015

buy now

55

Pressure Measuring Line

441021


special order

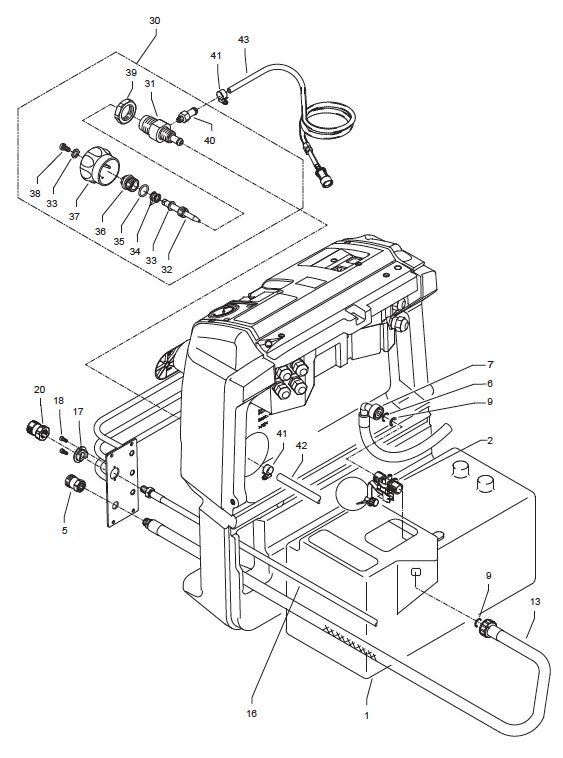

Water Supply Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Water Tank

44009


special order

2

Float Valve

462505

97462505

buy now

5

Connecting Piece R 3/8" IG

41423


special order

6

O-Ring 13x2.6

15017

9715017

buy now

7

Inlet Hose

440271


special order

9

O-Ring 13x2.6

13272

971272

buy now

13

Water Inlet Hose

44028

9744028

buy now

16

HD Hose Water Outlet

44840


special order

17

Retaining Disc

44841


special order

18

Screw DIN912 M5x12

410194

97410194

buy now

20

Water Outlet Part

44061


special order

30

Chemical Valve

46616


special order

31

Basic Part Angle Valve

46608


special order

32

Valve Needle

46601


special order

33

Disc

43045

9743045

buy now


34

Parbaks 6mm

150139715013

buy now

35

O-Ring

12256

9712256

buy now

36

Leadership Part

46602


special order

37

Handwheel

46607


special order

38

Screw M 4x8 Brass

46604


special order

39

Nut M18x1

40185


special order

40

Suction Cup M10x1

13236

9713236

buy now

41

Hose Clamp

44363


special order

42

Plastic Hose for Detergent Suction

44055


special order

43

Plastic Hose with Filter

440561


special order




Fuel Supply Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Fuel Supply Cover

44011


special order

2

Flange with Fuel Lines

440101


special order

3

Rubber Seal

44012


special order

4

PA-Hose DN6 0.22m

44403


special order

5

Float Switch

44014


special order

7

Fuel Line Pump

441081


special order

8

PA-Hose DN6 0.84m

44403


special order

9

PA-Hose DN6 0.32m

44403


special order

10

Connector Angle 1/4"x6

44405

9744405

buy now

11

Screw 5.0x25

414141


special order

12

Connector Socket 1/8"x6

44407

9744407

buy now

13

Ermeto Screw Connection R1/8"x6L

44372


special order

14

Connector Angle 1/8"x6

44408

9744408

buy now

16

Fuel Filter Connection Part

44214


special order

17

Rubber Seal

410471

97410471

buy now

18

Filter base Body

13301


special order


19

Rubber Seal

13303

9713303

buy now

20

Fuel Filter Screen Body

44213

9744213

buy now

21

Filter Cup

13302

9713302

buy now

22

Screw In Angle R1/4" AGx10L

401211


special order

23

Fuel Pump with Solenoid Valve

44073

9744073

buy now

24

PA-Hose DN6 0.93m

44403


special order

25

Coil for Solenoid Valve

442513


special order

26

Solenoid Valve

44251


special order

27

Spacer Tube 128mm

44084


special order

40

Fuel Pump Complete

44371

9744371

buy now

41

Fuel Filter Complete

44391


special order

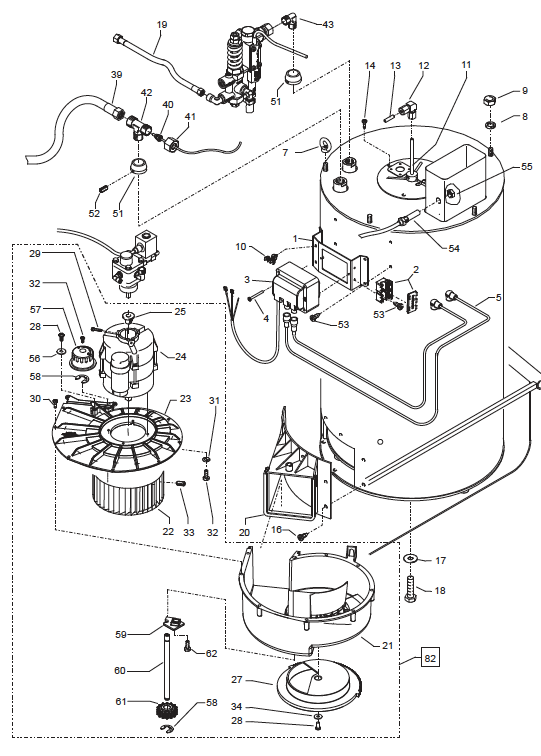

Combustion Chamber Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Bracket for Ignition Transformer with Pos. 2 and 10

44821


special order

2

Hanger Bracket

44395


special order

3

Ignition Transformer

440742

97440742

buy now

4

Screw M5x50

44113


special order

5

High Voltage Ignition Cable

441142


special order

7

Ring Nut M8 DIN 582

44115


special order

8

Spring Ring A8

44222


special order

9

Stainless Steel Nut M8

141272


special order

10

Holding Base Ignition Cable

441142


special order

11

Fuel Line 115mm

440891


special order

12

Angle Screw Connection 6Lx6L

44106


special order

13

Fuel Pump

441081


special order

14

Stainless Steel Screw M6x10

44177


special order

16

Self Tapping Screw 6.3x13

44109


special order

17

Washer A 10.5 DIN 9021

50182


special order

18

Hexagon Screw M10x20 DIN933

44116


special order


19

Pressure Measuring Line

441021


special order

20

Blown Nozzle

44068


special order

21

Blower Housing

44353


special order

22

Air Wheel

44380


special order

23

Blower Cover

44354


special order

24

Burner Engine 200-240V / 50/60 Hz

440726


special order

25

Plug-In Coupling

44085

9744085

buy now

27

Air Damper

44355


special order

28

Screw 5.0x14

43426


special order

29

Screw M5x12

40134

9740134

buy now

30

Screw 5.0x25

414141


special order

31

Washer 4.3

44059


special order

32

Screw M4x8

44091


special order

33

Threaded Pin M6x8 DIN 914

44090


special order

34

Disc 5.3

50152

9750152

buy now

39

HD Hose Water outlet

44840


special order

40

Temperature Sensor

449541

97449541

buy now


41

Ermeto Nut 12mm

40075

9740075

buy now

42

T-Screw In Fitting

44173


special order

43

Screw In Elbow Fitting 3/8"x12L

44092


special order

44High Pressure Hose

44093

9744093

buy now

45

Clamp Ring for Measuring Line Thermostat

440871


special order

46

Measuring Line Thermostat

441012


special order

48

Cutting Ring 12mm

40074


special order

49

Union Nut Ermeto 12mm

40075

9740075

buy now

50

Pipe with fittings

44030

9744030

buy now

51

End Ring

440861


special order

52

Threaded Pin M6x8 DIN 914

44090


special order

53

Self Tapping Screw 4.8x13

44112


special order

54

Overtemperature Sensor

44388


special order

55

Nut

44172


special order

56

Disc 6.4

50174


special order

57

Rotary Knob for Air Slide

44358


special order

58

Lock Washer

40315


special order

59

Counter Bearing for Air Distribution

44356


special order

60

Shaft for Air Distribution

44382


special order

61

Gear Drive Air Slide

44357


special order

62

Screw 3.5x14

44525


special order

82

Blower Unit

443901


special order

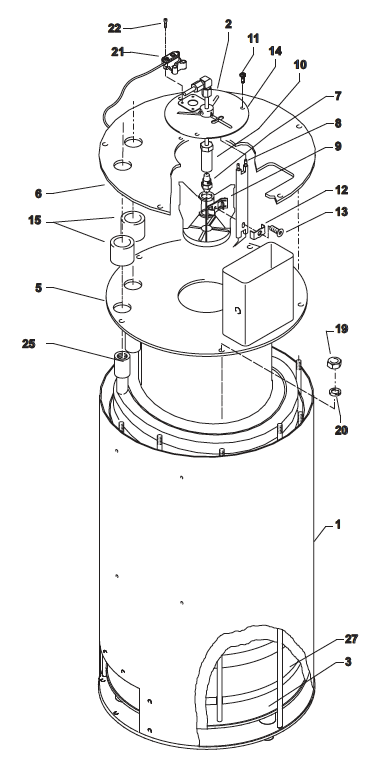

Combustion Chamber Part 2 Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Outtershell with Baseplate

44063


special order

2

Cover Nozzle Stock

44079


special order

3

Inner Shell with Base Plate

44378


special order

5

Inner Cover with Flame Tube

44377


special order

6

Exterior Cover

44066


special order

7

Fuel Can 60B 1.50gph

44077


special order

8

Therm Electrode

44080

9744080

buy now

9

Nozzle Stock Slots 25mm

440764


special order

10

Shower Holder

44078


special order

11

Stainless Steel Screw M6x10

44177


special order

12

Clamping Plate for Electrode

440761


special order

13

Cylinder Head Screw with Hexagon Socket M5x15 DIN 6912

440762


special order

15

Intermediate Sleeve

44376


special order

19

Stainless Steel Nut M8

141272


special order

20

Spring Ring A8

44222


special order

21

Optical Flame Sensor

442561

97442561

buy now

22

Screw M4x10

46002


special order

25

Heating Coil

44374

9744374

buy now

27

Insulation Plate

44360


special order

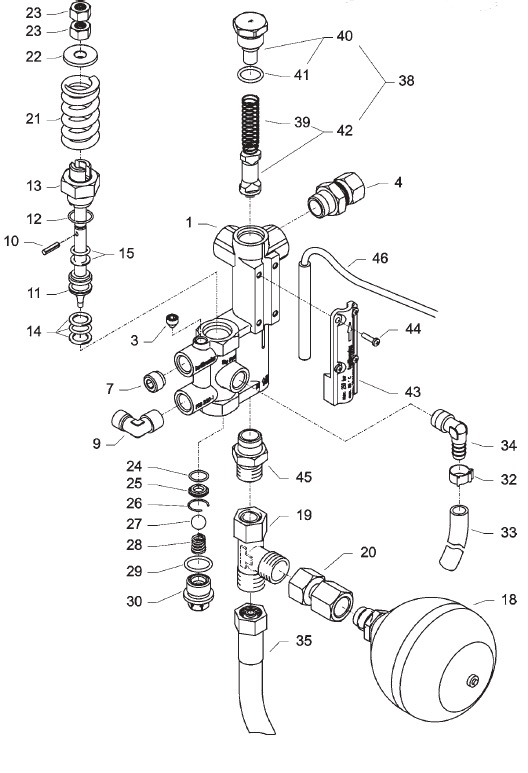

Flow Safety Block Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Valve Body FSB250-1

14215


special order

3

Sealing Plug M8x1

13158

9713158

buy now

4

Ermeto Screw Connection Pipe Socket R 3/8"x12mm

44365


special order

7

Plug R1/4"

13387

9713387

buy now

9

Ermetowinkel R 1/4" x6L

44062


special order

10

Roll Pin

14148

9714148

buy now

11

Control Piston

14110


special order

12

O-Ring 16x2.0

13150

9713150

buy now

13

Piston Guide

14130

9714130

buy now

14

Parbaks 16mm

13159

9713159

buy now

15

Parbaks 8mm

14123

9714123

buy now

18

Hydro Storage

44140


special order

19

L-Screw Connection

44869


special order

20

Connection Sleeve for Hydraulic Accumulator

441401


special order

21

Valve Spring

14125

9714125

buy now

22

Spring Pressure Disc

14126

9714126

buy now

23

Hexagon Nut M8x1

14144

9714144

buy now

24

O-Ring 11x1.44

12256

9712256

buy now

25

Stainless Steel Seat 7.0mm

14118

9714118

buy now

26

Snap Ring

12258


special order

27

Stainless Steel Ball 10mm

12122

9712122

buy now

28

Stainless Steel Spring

14119

9714119

buy now

29

O-Ring 13.94x2.62

42167

9742167

buy now

30

Screw Plug

14113

9714113

buy now

32

Hose Clamp

44363


special order

33

PVC Hose DN6 0.7m

44403


special order

34

Angled Tulle R 1/4"x8

14212


special order

35

HD- Hose Inlet Combustion Chamber

44384


special order

38

Flow Body Including Plug and Spring

142181


special order

39

Compression Spring Flow Monitor

14217


special order

40

Stop Plug with Pin Flow Monitor

14219


special order

41

O-Ring 14x2

43445

9743445

buy now

42

Flow Body with Pin for Spring

14218


special order

43

Cover

12603


special order


44

Screw M4x8

44216


special order

45

Screw Connection M18x1.5x12L

44364


special order

46

Magnetic Switch

405942


special order


Control Piston Complete

141101


special order


Flow Safety Block Complete

14235

9714235

buy now

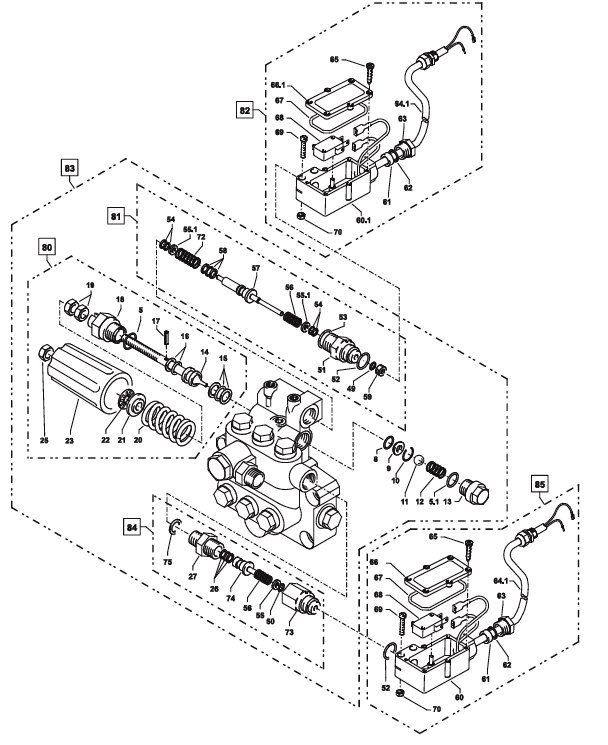

Unloader Valve and Pressure Switch Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

5

O-Ring 16x2

13150

9713150

buy now

5.1

O-Ring 13.94x2.62

42167

9742167

buy now

8

O-Ring 11x1.44

12256

9712256

buy now

9

Stainless Steel Seat

14118

9714118

buy now

10

Retaining Ring

12258


special order

11

Stainless Steel Ball 8.5mm

13148


special order

12

Stainless Steel Spring

14119

9714119

buy now

13

Screw Plug

14113

9714113

buy now

14

Control Piston

14134

9714134

buy now

15

Parbaks 16mm

13159

9713159

buy now

16

Parbaks 8mm

14123

9714123

buy now

17

Roll Pin

14148

9714148

buy now

18

Piston Guide Special

42105

9742105

buy now

19

Nut M8x1

14144

9714144

buy now

20

Valve Spring Black

14125

9714125

buy now

21

Spring Pressure Disc

14126

9714126

buy now

22

Needle Bearing

14146

9714146

buy now


23

Handwheel

141472


special order

25

Elastic Stop Nut

14152

9714152

buy now

26

Parbaks 7mm

15013

9715013

buy now

27

Output Part R3/8" AG

15012


special order

49

O-Ring 3.3x2.4

12136

9712136

buy now

50

O-Ring 5x1.5

15014


special order

51

Guide Part Control Lever

150091


special order

52

O-Ring 12.3x2.4

15017

9715017

buy now

53

O-Ring 14x2

43445

9743445

buy now

54

Parbaks 4mm

121362

97121362

buy now

55

Support Disc dm5

15015

9715015

buy now

55.1

Support Disc dm4

150151


special order

56

Stainless Steel Spring

15016

9715016

buy now

57

Control Rod

150102

97150102

buy now

58

Parbaks

15013

9715013

buy now

59

Plug M10x1 Drilled Through

133851


special order

60

Housing Electrical Switch Black

15007


special order


60.1

Housing Electrical Switch Red

150071


special order

61

Rubber Sleeve PG9

15020


special order

62

Disc PG9

15021


special order

63

Screw Connection PG9

15022


special order

64

Cable 2x1.0mm 0.70m black

44367


special order

64.1

Cable 21.0mm 0.70m grey

44368


special order

65

Self Tapping Screw 2.9x16

15024


special order

66

Cover Electrical Switch Black

15008


special order

66.1

Cover Electrical Switch red

150081


special order

67

O-Ring 44x2.5

15023


special order

68

Microswitch

44262


special order

69

Cylinder Head Screw M4x20

15025


special order

70

Hexagon Nut M4

15026


special order

72

Basic Part Electrical Switch

15009


special order

73

Compression Spring 1x8.6x30

40520


special order

74

Control Piston

15010


special order

80

Control Piston Complete with Hand wheel

44209

9744209

buy now

81

Pressure Switch Mechanics

150093

97150093

buy now

82

Pressure Switch without Mechanics

443891

97443891

buy now

83

Valve Housing Complete without E-Switch

405037


special order

84

Pressure Switch Mechanics 3/8" AG

150112

97150112

buy now

85

Pressure Switch Without Mechanics

44389

9744389

buy now

86

Pressure Switch with Mechanics (Pos 81+82)

443892


special order

87

Pressure Switch with Mechanics (Pos. 84+85)

443893


special order


Valve Housing Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Valve Housing

405034


special order

2

O-Ring 18x2

40016

9740016

buy now

3

Inlet/Outlet Valve

42024

9742024

buy now

4

O-Ring 21x2

42025

9742025

buy now

5

Valve Plug

42026

9742026

buy now

6

Retaining Ring

40032

9740032

buy now

7

Hexagon Socket Screw M12x45

40504

9740504

buy now

13

Fabric Cuff 20mm

40023

9740023

buy now

14

Backring 20mm

40025

9740025

buy now

15

O-Ring 31.42x2.62

40508

9740508

buy now

16

Leakage Ring 20mm

40509

9740509

buy now

17

Copper Sealing Ring 21x28x1.5

42039

9742039

buy now

18

Cuff 20mm

40512

9740512

buy now

19

Locking Screw R 1/2"

42032

9742032

buy now

20

Spacer Ring with Support

40507

9740507

buy now

21

Screw Plug R1/2" with Tulle

420321


special order

23

Pressure Ring 20mm

40021

9740021

buy now

24

Spacer Ring 20mm

40516

9740516

buy now

25

O-Ring 11x1.5

12256

9712256

buy now

26

Stainless Steel Seat 7mm

14118

9714118

buy now

27

Snap Ring

13147

9713147

buy now

28

Pump Output Part R1/4"x12L

44394


special order

29

Sealing Ring

40019

9740019

buy now

30

Plug 3/8"

40018

9740018

buy now

31

Plug M10x1

43043


special order

32

Plug M8x1

13158

9713158

buy now

33

Output Plug

40522

9740522

buy now

34

Stainless Steel Ball 10mm

12122

9712122

buy now

35

Recoil Spring K

141201

97141201

buy now

37

O-Ring 18x2

43446


special order

38

Copper Sealing Ring 17x22x1.5

40019

9740019

buy now

39

Suction Connection 3/8" AGx3/4" AG

41016

9741016

buy now

40

O-Ring 13x2.6

13272

9713272

buy now

41

Intake Hose

440962


special order


42

Sealing Plug R 3/8"

40051


special order


Repair Kit Valves

400621

97400621

buy now


Repair Set Cuffs without Brass Parts

40517

9740517

buy now


Repair Set Cuffs with Brass Parts

400651

97400651

buy now


Transmission Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Oil Housing with Oil Seals

40501

9740501

buy now

4

Hexagon Socket Screw M8x25

40053

9740053

buy now

5

Lock Washer

40054

9740054

buy now

6

Flat Gasket

40511


special order

7

Oil Seal 20x38x7

400441

97400441

buy now

9

Axial Cylindrical Roller Bearing AQ Pump

40524

9740524

buy now

11

Swashplate 7.0"

40523-7.0

9740523-7.0

buy now

12

Plunger Spring

40506

9740506

buy now

13

Spring Pressure Disc

40510

9740510

buy now

14

Plunger 20mm (long)

40505

9740505

buy now

15

Snap Ring

40048


special order

16

O-Ring 14x2

43445

9743445

buy now

17

Screw Plug M18x1.5

41011

9741011

buy now

18

Flat Gasket

410193

97410193

buy now

19

Lid

40518


special order

20

Hexagon Socket Screw M5x12

410194

97410194

buy now

21

Oil Dipstick

42520

9742520

buy now

22

Support Disc for Plunger Spring

40513

9740513

buy now

23

Screw-In Angle 3/8"x3/8"

44127

9744127

buy now

24

Oil Drain Hose

441281


special order

25

Copper Ring

14149

9714149

buy now

26

Cap

44130

9744130

buy now


Complete Transmissiom Huosing

40514

9740514

buy now


Motor Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Stator 112 4.0kW 220V/60Hz

405411


special order

2

A-Bearing Flange

40530


special order

3

Rotor 112 220V/60Hz

405311


special order

4

Fan Wheel BG112

40532

9740532

buy now

5

Fan Cover BG112

40533

9740533

buy now

6

Clamp Box

40534


special order

7

Flat Seal

43030


special order

8

Chandelier terminal 2.5mm 4-polig

430311


special order

9

PG Screw Connection PG13.5

40539


special order

10

Conical Roller Bearing 31306

40103

9740103

buy now

11

Oil Seal 35x47x7

40080

9740080

buy now

12

Spring 8x7x32

40104


special order

13

Ball Bearing 6206-2Z

40538


special order

14

Hexagon Socket Screw M6x30

43037


special order

15

Tolerance Shell

405441


special order

16

Sheet Metal Screw 2.9x16

43036


special order


17

V-Seal

40545


special order

19

Screw M4x12

41489


special order

20

Clamp for Fan Wheel BG112

40535


special order

21

Screw M4x12

41489


special order

22

Grounding Screw Complete

43038


special order

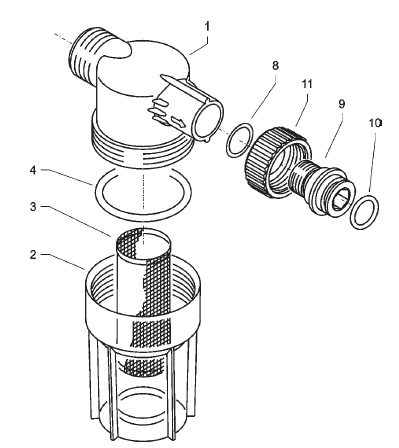

Water Filter Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Filter Base Body

13308


special order

2

Filter Cup

13302

9713302

buy now

3

Screen Body

13304


special order

4

O-Ring 40x3.5

13303

9713303

buy no

8

O-Ring 14x2

43445

9743445

buy now

9

Spout

13307


special order

10

O-Ring 13x2.6

13272

9713272

buy now

11

Union Nut

410475


special order


Filter Complete

13310

9713310

buy now

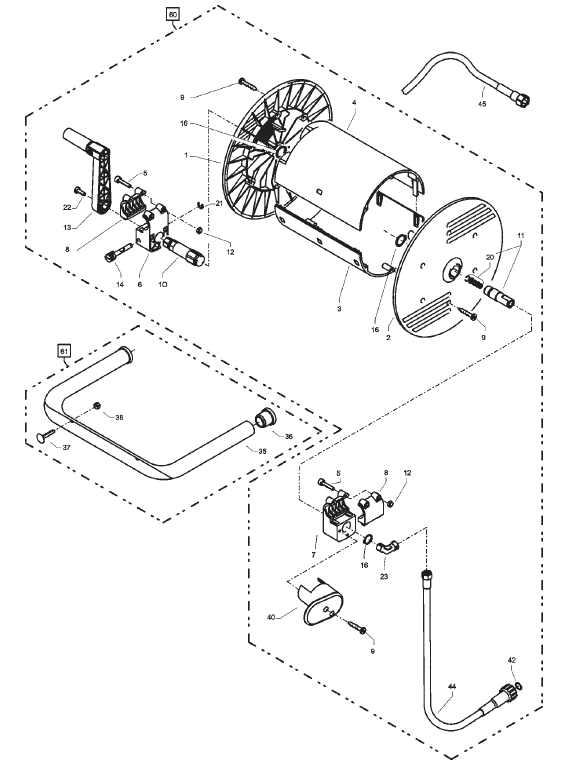

Hose Reel Special Accessories Spare Parts


#

Part Name

German Part #

Kranzle USA Part #

Buy Now

1

Side Shell Hose Guide

40302


special order

2

Side Shell Water Guide

40301


special order

3

Drum Bottom Part

40304


special order

4

Drum Top

40303


special order

5

Hexagon Socket Screw M4x25

40313


special order

6

Bearing Block with Brake

40306


special order

7

Bearing Block Left

40305


special order

8

Clamp Piece

40307


special order

9

Plastic Screw 5.0x20

43018

9743018

buy now

10

Drive Shaft

40310

9740310

buy now

11

Wave Water Flow

40323


special order

12

Elastic Stop Mutter M4

40111


special order

13

Crank Complete

403200


special order

14

Locking Bolt

40312


special order


16

Shaft Retaining Ring 22mm

40117

9740117

buy now

20

Sealing Seat

134101


special order

21

Lock Washer 6DIN6799

40315


special order

22

Screw M5x10

43021

9743021

buy now

23

Ermetowinkel R1/4" AGx12L

44864


special order

35

Retaining Bracket

44143


special order

36

Rubber Stoppers

42613


special order

37

Carriage Bolt M8x40

44159


special order

38

Elastic Stop Mutter M8

41410

9741410

buy now

40

Hook

42612


special order

42

O-Ring 9.3x2.4

13272

9713272

buy now

44

Connecting Hose NW 8 1m

44385


special order

45

High Pressure Hose NW 8 20m

443812

97443812

buy now

60

Hose Reel Complete without hose without Retaining Bracket

44392


special order

61

Retaining Bracket Complete Consisting of Pos. 35-38

441431


special order
