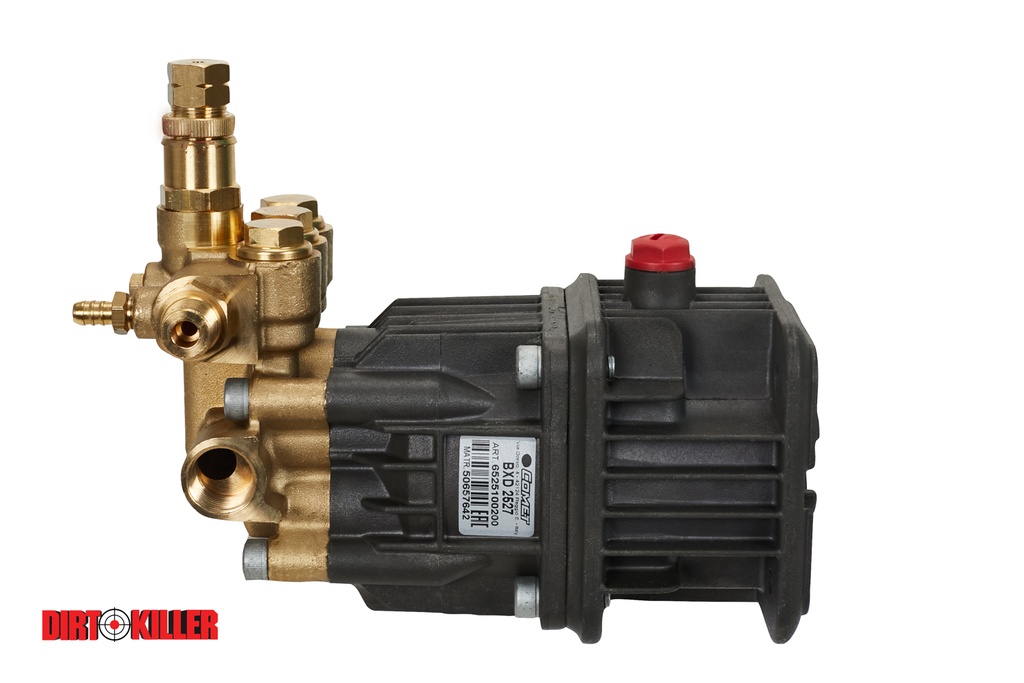

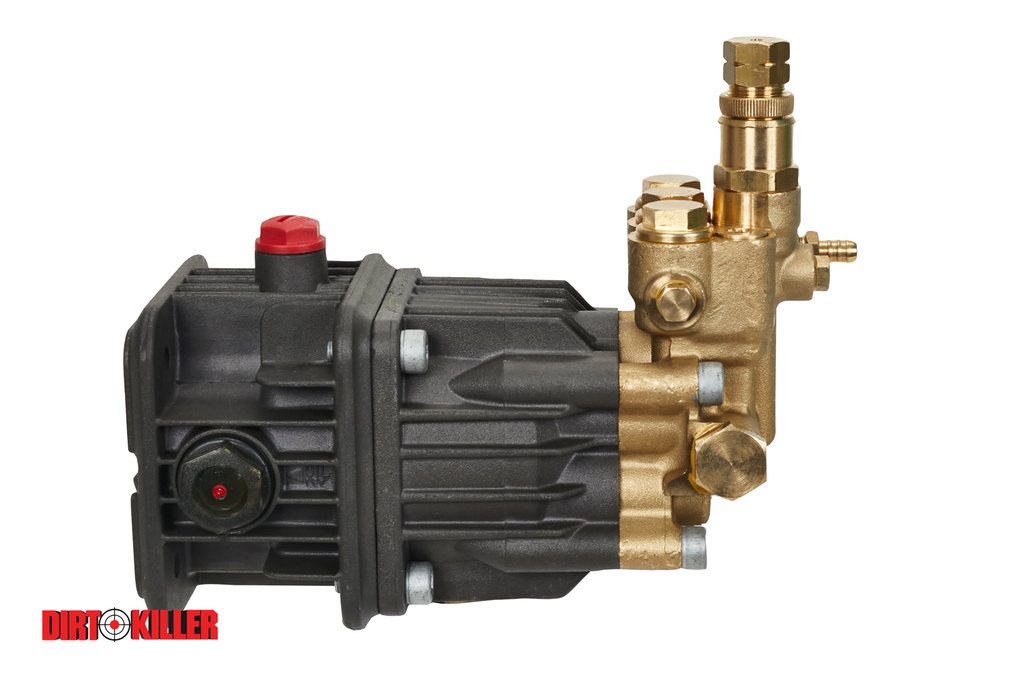

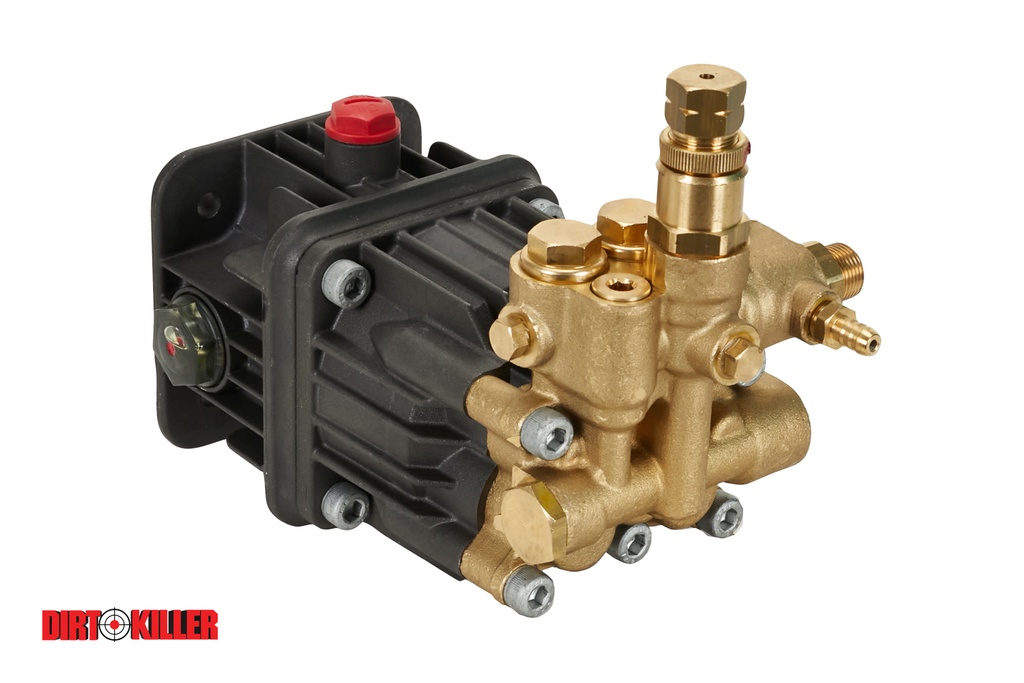

Direct Drive Made Ready Comet Pump BXD2527G MAX 2.4GPM 2700PSI | PN 6600171

Comet BXD2527G High Pressure Pump for Pressure Washers

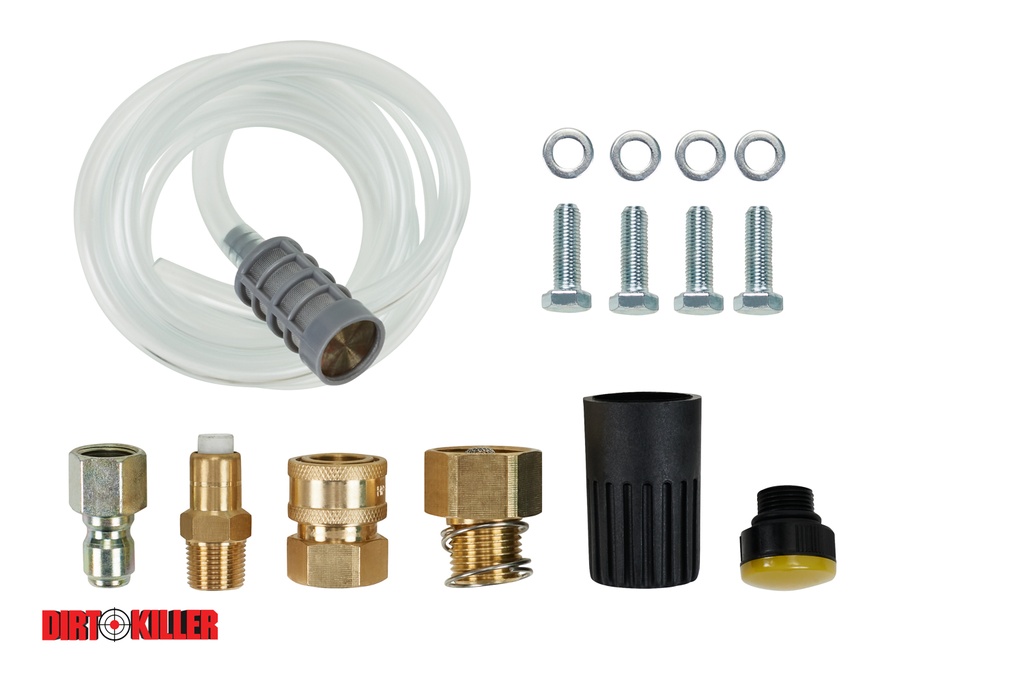

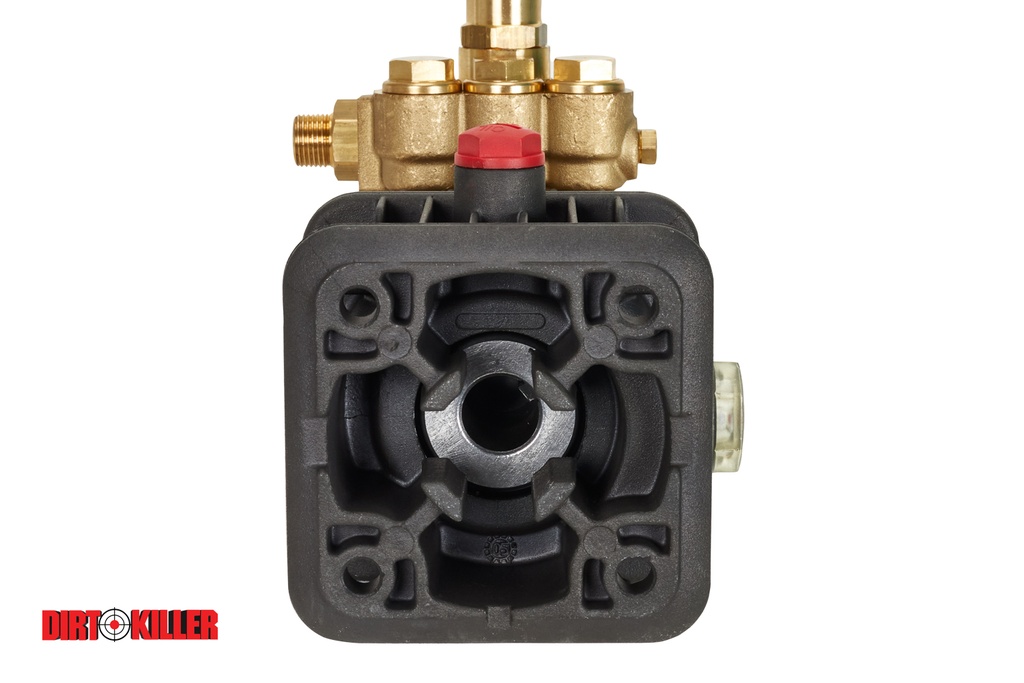

Commercial duty direct drive pump made by Comet. Designed to fit a ¾”” shaft this assembly makes quick work of replacing your existing pump when you need repair. Plumbing includes a garden hose water inlet, internal unloader as well as outlet socket and plug style quick disconnect. Pump uniquely includes a shaft key integrated into the pump flange for easy installation.

Bolt pattern on pump flange fits most horizontal shaft general purpose engines Pump includes hardware set, breather dipstick, and comes prefilled with oil.

Installation instructions are as follows:

1) Remove the old pump and shaft key.

    a. Clean and inspect the engine shaft.

    b. Grease/ lubricate the entire shaft with some form of anti seize.

2) Slide new pump into place by lining up the integrated pump key with the Keyway on engine shaft.

    a. Pump may need rotated into place as you install around a frame.

3) Select the best placement for bolts as well as proper bolts based on the engines pattern.

    a. Install and tighten all bolts with the appropriate washers and/ or spacers provided.

4) Once the pump is properly installed to the engine the unloader can be adjusted to meet the optimal performance in accordance with the HP rating of your engine.

    a. Install breather dipstick prior to starting engine.

    b. Set engine throttle then manually adjust the unloader until the pump is set properly to your engine.

Pressure Washer Pump Specs

Pump Manufacturer- Comet

Pump Model – BXD2527

Drive Type- Direct Drive

Required Shaft Size – 3/4”

Minimum HP Rating- 5 HP

Maximum Flow- 2.4 GPM

Maximum Pressure – 2700 PSI

Recommended RPM’s- 3500

Recommended Orifice Size – 3.0

Recommended Oil- Comet Premium Pump Oil
