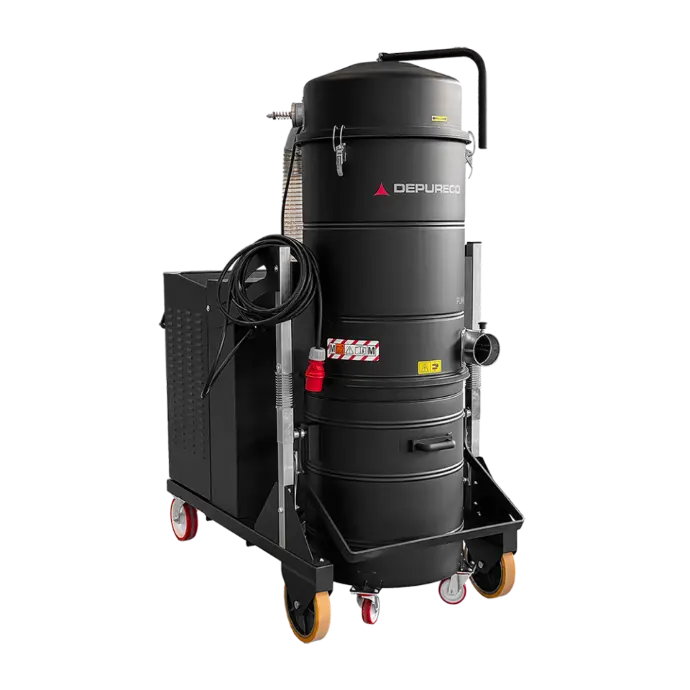

Depureco PUMA18S for large quantity of dusts & solids | PN 2300125

30,319.30 30319.3 USD 30,319.30

30,319.30

Not Available For Sale

This combination does not exist.

For technical sheet click below:

   PUMA 18S

Motors | Type: Side channel blower

Power: 16.9HP | 3~

Voltage | Frequency: 480V | 60Hz

IP | Insulation class: 55 | F

Vacuum in continuous run: 110inH20

Max Air flow: 520CFM

Relief valve: Included

Inlet: 100mm diameter / Tangential with cyclone

Vacuum remote control: included

Noise level: 74 dB(A)

Bin capacity: 46gal

Dimensions (inches): 33.46 x 61.02

Height: 77.95in

Weight: 783lbs

Primary filter: Star

Surface area: 7000in2

Class EN 60335-2-69 (IFA | BGIAM-PES): Class M

Media: Polyester

Filter cleaning: manual

SP – Automatic filter cleaning: 18,600in2; Class M; Antistatic polyester, reverse jet cleaning system

Absolute filter – Optional (Class-EN 1822): H14 Surface area: 17,100in2 Media: fiberglass

Filtration optionals: HEPA 14, ANT M, MTF, NOMEX, PTFE, PTFE ANT

Filter cleaning system options: SP, PSC, COMP, SE

Construction options: BX, GX, TX, GRD, GFR, FKL, WRLS

Accessories optionals: P00283, P00285

Pre-Separators and hoppers for increase capacity or big bag collection: P09120

Collection of Polyethylene filaments | Depureco USA

This custom vacuum system is equipped with a double pre-separator, ensuring continuous suction and discharge. This configuration allows for the efficient collection and disposal of polyethylene filaments in large quantities at the same time.
