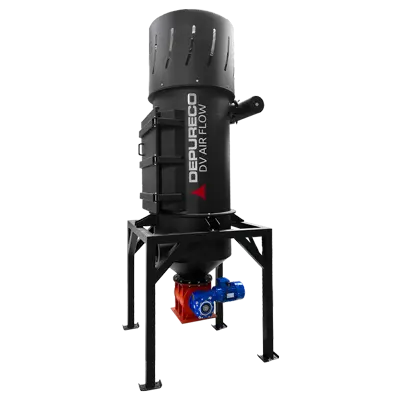

Depureco AF 40 Stationary dust collectors w/ discharge valve | PN 2300181

For technical sheet click below:

   AF 40 *see page 7

Motors | Type: Fan

Power: 6.2HP | 3~

Voltage | Frequency V|Hz: 480V | 60Hz

Vacuum in continuous run: 13.4inH₂O

Static depression: 10.6inH₂O

Max Air flow: 1295CFM

Relief valve: Included

Suction inlet: 200mm (tangential w/ cyclone

Noise level: 73dB(A)

Discharge valve: 250mm (not included)

Dimensions: 55.2 x 44.5in

Height: 125in

Weight: 902lbs

Primary filter: Cartridges

Surface:  52,700in²

(Class EN 60335-2-69) IFA | BGIA M-PES: Class M

Media: Polyester

Filter cleaning system: SP-Automatic reverse jet cleaning system

Accessories: P12300/70, P12300/100, P12300/120, P12300/150, P12300/180, P12300/200, P12478/A, P12478

Discharge system options: P12390, P12391, P12392, P12393, P12736, P12736/EX, P12394, P12396, P12395, P12397
