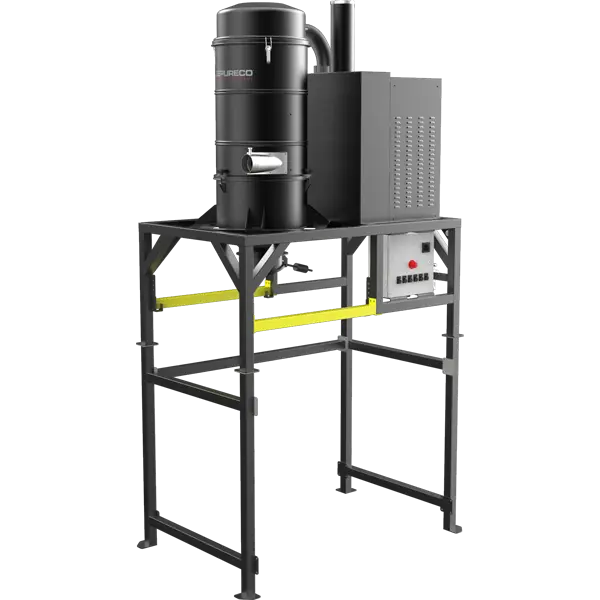

Depureco HF 300 Stationary w/ discharge valve | PN 2300178

For technical sheet click below:

   HF 300   *see page 6

Motors | Type: Side channel blower

Power: 4.8HP | 3~

Voltage | Frequency V|Hz: 480V | 60Hz

Vacuum in continuous run inH2O: 108

Max Air flow: 247CFM

Relief valve: Included

Suction inlet: 80mm

Noise level: 74dB(A)

Discharge valve: 150mm (not included)

Dimensions: 53.94 x 26.77in

Height: 76.85in

Primary filter: Star

Surface total: 3720in²

(Class EN 60335-2-69) IFA | BGIA M-PES: Class M

Media: Polyester

Filter cleaning system: Manual

Filtration options: HEPA 14, ANT M, MTF, NOMEX, PTFE, PTFE ANT

Filter Cleaning systems options: SP, PSC

Construction optional discharge systems: LR, WRLS + QE, BB

Accessories: P00279, P11718
