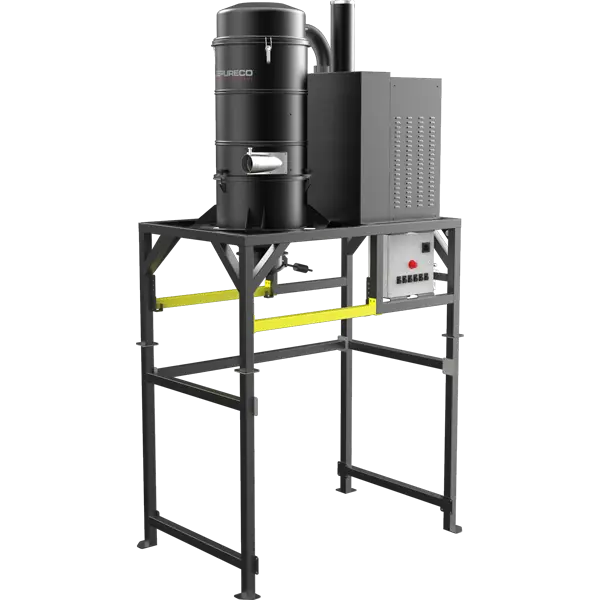

Depureco HF 15S Stationary w/ discharge valve | PN 2300175

For technical sheet click below:

   HF 15S   *see page 6

Motors | Type: Side channel blower

Power: 23.2HP | 3~

Voltage | Frequency V|Hz: 480V | 60Hz

IP | Insulation class: 55 | F

Vacuum in continuous run inH2O: 200

Max Air flow: 364CFM

Relief valve: Included

Suction inlet: 100mm (tangential w/ cyclone)

Electrical panel: included w/ remote vacuum control

Noise level: 74dB(A)

Discharge valve: 250mm (not included)

Dimensions: 48.81 x 75.2in

Height: 540.55in

Primary filter: Star

Surface total: 13,950in²

(Class EN 60335-2-69) IFA | BGIA M-PES: Class M

Media: Polyester

Filter cleaning system: PSC-Automatic shaking

Optional discharge systems: HEPA 14, SP, WRLS

Accessories: P12780/70, P12780/102, P12780/130
