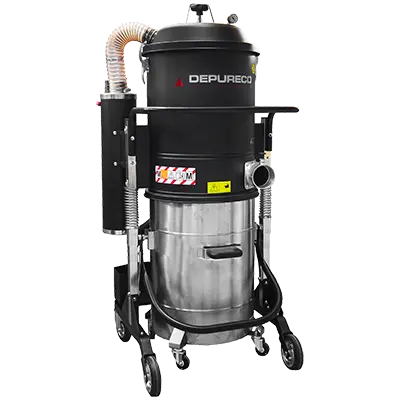

Depureco AC 100 Z22 pneumatic safety industrial vacuum | PN 2300166

For technical sheet click below:

   AC 100 Z22

ATEX marking: ||3GD Ex htc |||B T100°C Gc/Dc

Motors | Type: Venturi tube

Air required: 660gal/min

Pressure required: 2500-3000psi

Max Vacuum: 200inH2O

Max air flow: 282CFM

Inlet: 80mm diameter

Noise level: 70dB(A)

Bin Capacity: 17gal

Dimensions (inches): 25.98 x 31.49

Height: 47.24in

Weight: 145lbs

Primary filter: Star

Surface: 3,720in2

Class EN 60335-2-69: Class M

Media: Antistatic polyester

Filter cleaning: Manual

Absolute filter – optional: H14

Surface: 3,400in2

Media: Fiberglass

Filtration optionals: HEPA 14, PTFE ANT

Construction options: BX (included), GRD (included), GX

Accessories: P00277, P13641, P13642, P00278, P12378, P12377, P11847, P09868
